ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )RHD

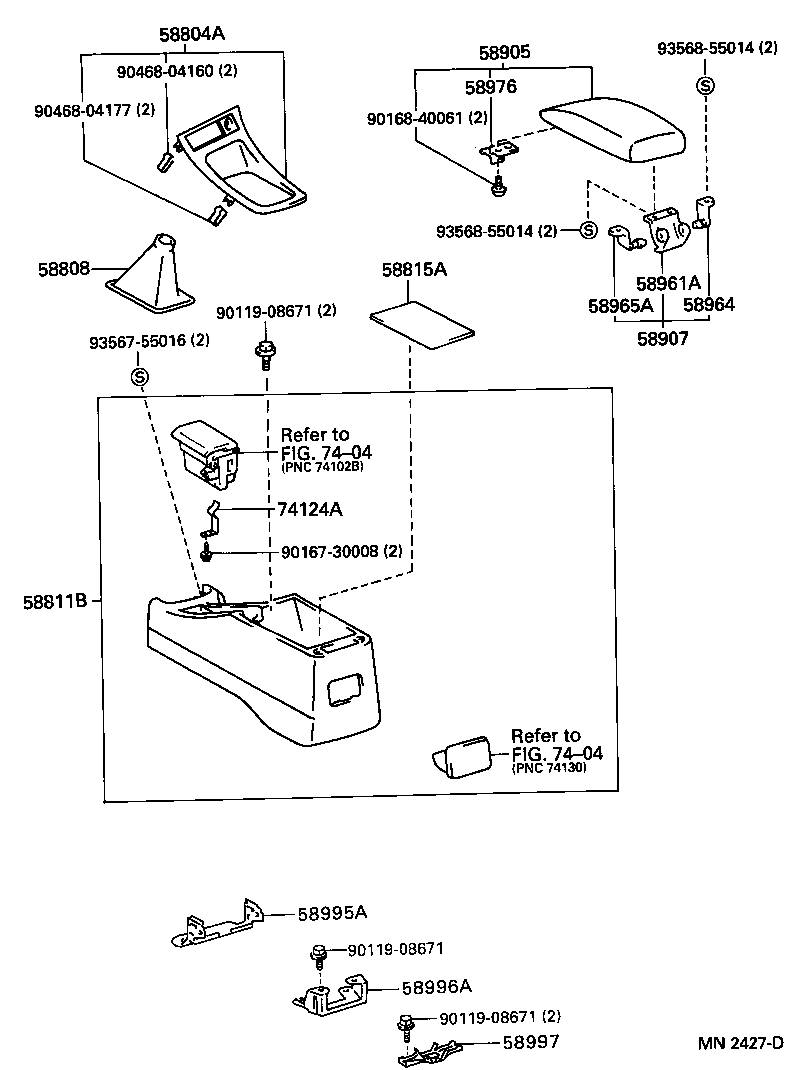

Click highlighted areas on diagram

diagram 58804A 58808 58811B 58815A 58905 58907 58961A 58964 58965A 58976 58995A 58996A 58997 7404 7404 74124A 9011908671 9011908671 9011908671 9016730008 9016840061 9046804160 9046804177 9356755016 9356855014 9356855014
Part # Description Qty Price
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-20160C0

ST20#..RHD..MTM

BLACK,TRIM2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-20120C0

ST20#..MTM

BLACK,TRIM2#

 1
58811B - BOX, CONSOLE
58801-20230C0

ST20#..RHD

BLACK,TRIM2#

 1
58801-20250C0

ST20#..RHD

BLACK,TRIM2#

 1
58815A - CARPET, CONSOLE BOX
58815-20040

ST20#..RHD

 1
58815-20050

ST20#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20220C0

ST20#..RHD

BLACK,TRIM2#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-20030C0

ST20#

BLACK,TRIM2#

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-20030

ST20#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

ST20#

BLACK,TRIM2#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

ST20#

BLACK,TRIM2#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

ST20#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-20070

ST20#..MTM

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-20070

ST20#..RHD

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-20050

ST20#

 1
74124A - SPRING, ASH RECEPTACLE
74124-20120

ST20#

 1
Common parts
90119-08671
90167-30008
90168-40061
90468-04160
90468-04177
93567-55016
93568-55014
Linked diagrams
7404
