ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )ST202,204

Click highlighted areas on diagram

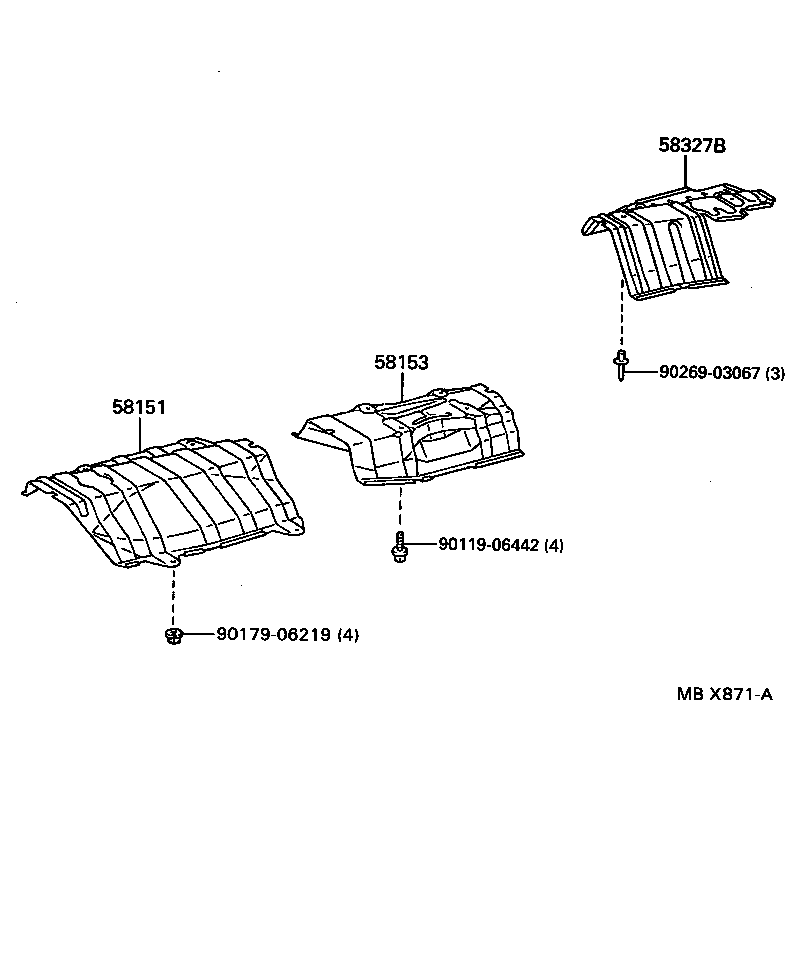

diagram 58151 58153 58327B 9011906442 9017906219 9026903067
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-20110

ST202

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-20110

ST202,204

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-20100

ST202,204

 1
Common parts
90119-06442
90179-06219
90269-03067
