ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9311- )ST202,204

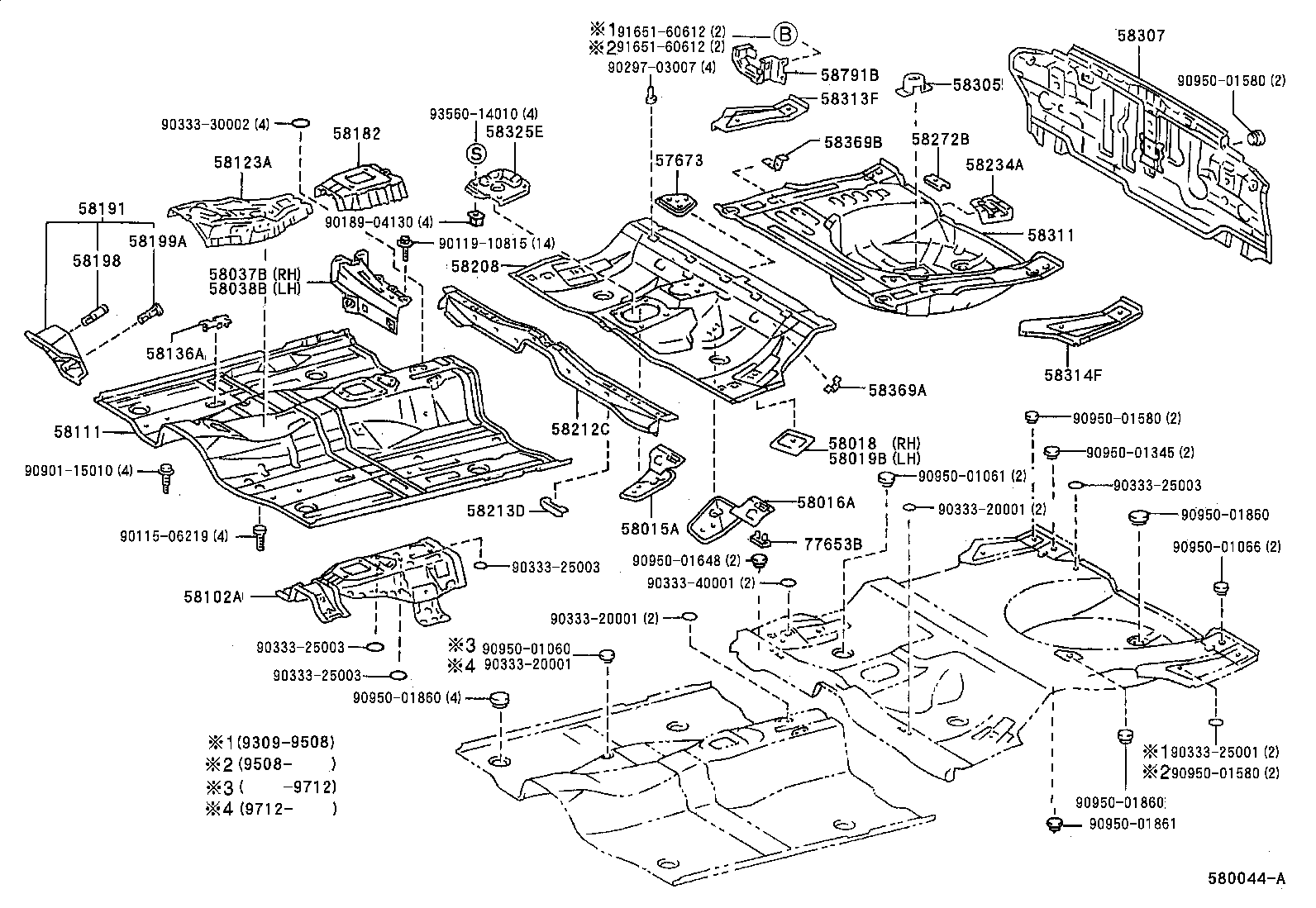

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-20100 |
ST202,204 |
1 | ||
| 57673-20060 |
ST202,204 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-20090 |
ST202,204 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-20080 |
ST202,204 |
1 | ||
| 58018 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 RH | ||||
| 58018-20020 |
ST202,204 |
1 | ||
| 58019B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 LH | ||||
| 58019-20020 |
ST202,204 |
1 | ||
| 58037B - REINFORCE, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-20010 |
ST20# |
1 | ||
| 58038B - REINFORCE, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-20010 |
ST20# |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-20180 |
ST202,204..RHD |
1 | ||
| 58102-20140 |
ST202,204..RHD |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-20230 |
ST20# |
1 | ||
| 58111-20170 |
ST20# |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-20090 |
ST20# |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-33010 |
ST20# |
2 | ||
| 58182 - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH | ||||
| 58182-20060 |
ST20#..RHD |
1 | ||
| 58182-20080 |
ST20#..RHD |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-20070 |
ST20#..RHD |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-20160 |
ST20#..RHD |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-20040 |
ST20#..RHD |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-20450 |
ST202,204 |
1 | ||
| 58211-20370 |
ST202,204 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-20070 |
ST202,204 |
1 | ||
| 58212-20100 |
ST202,204 |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58213-20110 |
ST202,204 |
2 | ||
| 58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER | ||||
| 58234-20070 |
ST202,204 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
ST20# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-2B120 |
ST202 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-20330 |
ST202,204 |
1 | ||
| 58311-20370 |
ST202 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-20360 |
ST202,204 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-20330 |
ST202,204 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-20070 |
ST202,204 |
1 | ||
| 58369A - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-20010 |
ST202,204 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-20020 |
ST202,204 |
2 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-20120 |
ST20# |
1 | ||
| 77653B - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-20071 |
ST202,204 |
2 | ||
| Common parts | ||||
| 90115-06219 | ||||
| 90119-10815 | ||||
| 90189-04130 | ||||
| 90297-03007 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-25003 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 90901-15010 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01066 | ||||
| 90950-01345 | ||||
| 90950-01580 | ||||
| 90950-01648 | ||||
| 90950-01860 | ||||
| 90950-01861 | ||||
| 91651-60612 | ||||
| 93560-14010 | ||||
