ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9311- )

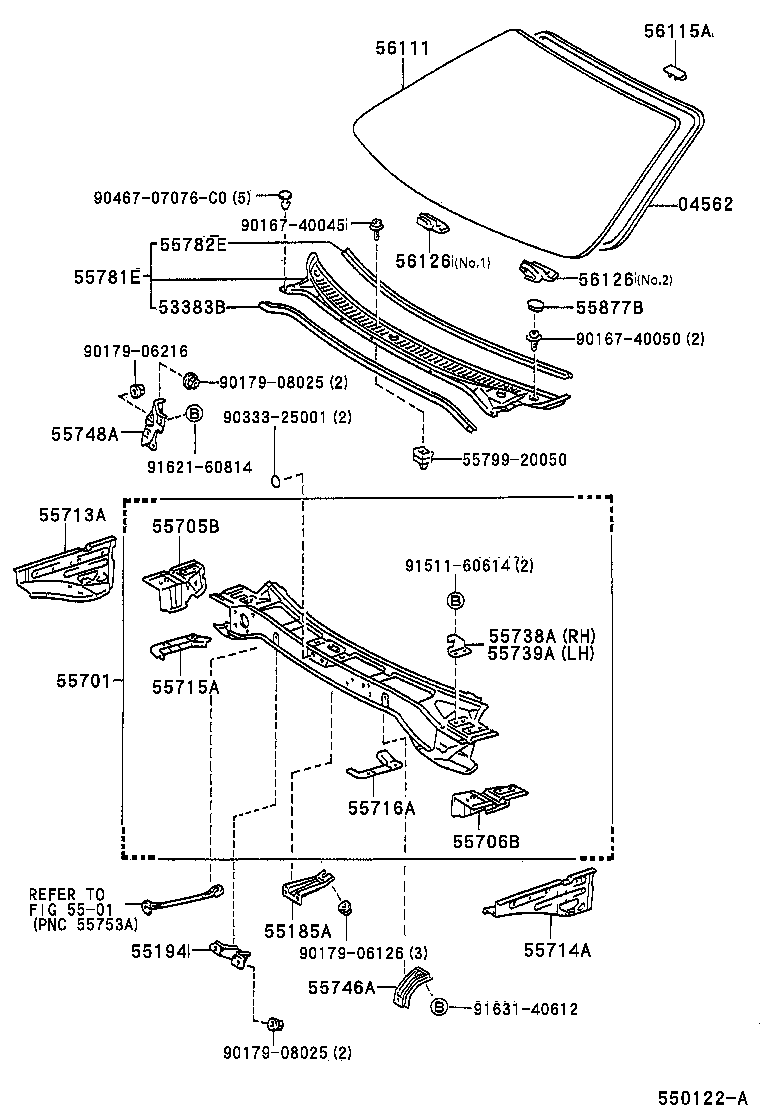

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
ST20# |
1 | ||
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-20170 |
ST20# |
1 | ||
| 55185A - BRACE, DASH PANEL TO COWL | ||||
| 55185-20100 |
ST20#..RHD |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-2B040 |
ST20#..RHD |
1 | ||
| 55700-2B040 |
ST202..RHD |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-20110 |
ST20# |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-20130 |
ST20# |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-20140 |
ST20# |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-20150 |
ST20# |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-20130 |
ST20# |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-20100 |
ST20# |
1 | ||
| 55738A - STOPPER, HOOD, RH | ||||
| 55738-20070 |
ST20# |
1 | ||
| 55739A - STOPPER, HOOD, LH | ||||
| 55739-20070 |
ST20# |
1 | ||
| 55748A - BRACE, COWL TOP INNER TO PILLAR | ||||
| 55748-20150 |
ST20#..RHD |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-20190 |
ST20#..RHD |
1 | ||
| 55708-20210 |
ST202..RHD W(REAR HEATER DUCT) |
1 | ||
| 55782E - PROTECTOR, COWL TOP VENTILATOR LOUVER | ||||
| 55782-20110 |
ST20# |
1 | ||
| 55877B - COVER, COWL VENT, RH | ||||
| 55877-16020 |
ST20# |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-2B580 |
ST20# *TL,T=4.76,GREEN,W(TOP SHADE) |
1 | ||
| 56111-2B440 |
ST202 *TL,T=4.76,GREEN |
1 | ||
| 56111-2B350 |
ST202 *TL,T=4.76,BLUE |
1 | ||
| 56111-2B580 |
ST20#..ARL,GEN *TL,T=4.76,GREEN,W(TOP SHADE) |
1 | ||
| 56111-2B360 |
ST20# *TL,T=4.76,BLUE,W(TOP SHADE) |
1 | ||
| 56111-2B440 |
ST202..GEN *TL,T=4.76,GREEN |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-20080 |
ST20# |
2 | ||
| 56126 - SPACER, WINDSHIELD GLASS, NO.2 | ||||
| 56127-20010 |
ST20# NO.1 |
6 | ||
| 56126-20040 |
ST20# NO.2 |
2 | ||
| 56126 - SPACER, WINDSHIELD GLASS, NO.2 | ||||
| 56127-20010 |
ST20# NO.1 |
6 | ||
| 56126-20040 |
ST20# NO.2 |
2 | ||
| Common parts | ||||
| 55799-20050 | ||||
| 90167-40045 | ||||
| 90167-40050 | ||||
| 90179-06126 | ||||
| 90179-06216 | ||||
| 90179-08025 | ||||
| 90333-25001 | ||||
| 90467-07076C0 | ||||
| 91511-60614 | ||||
| 91621-60814 | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 5501 | ||||
