ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

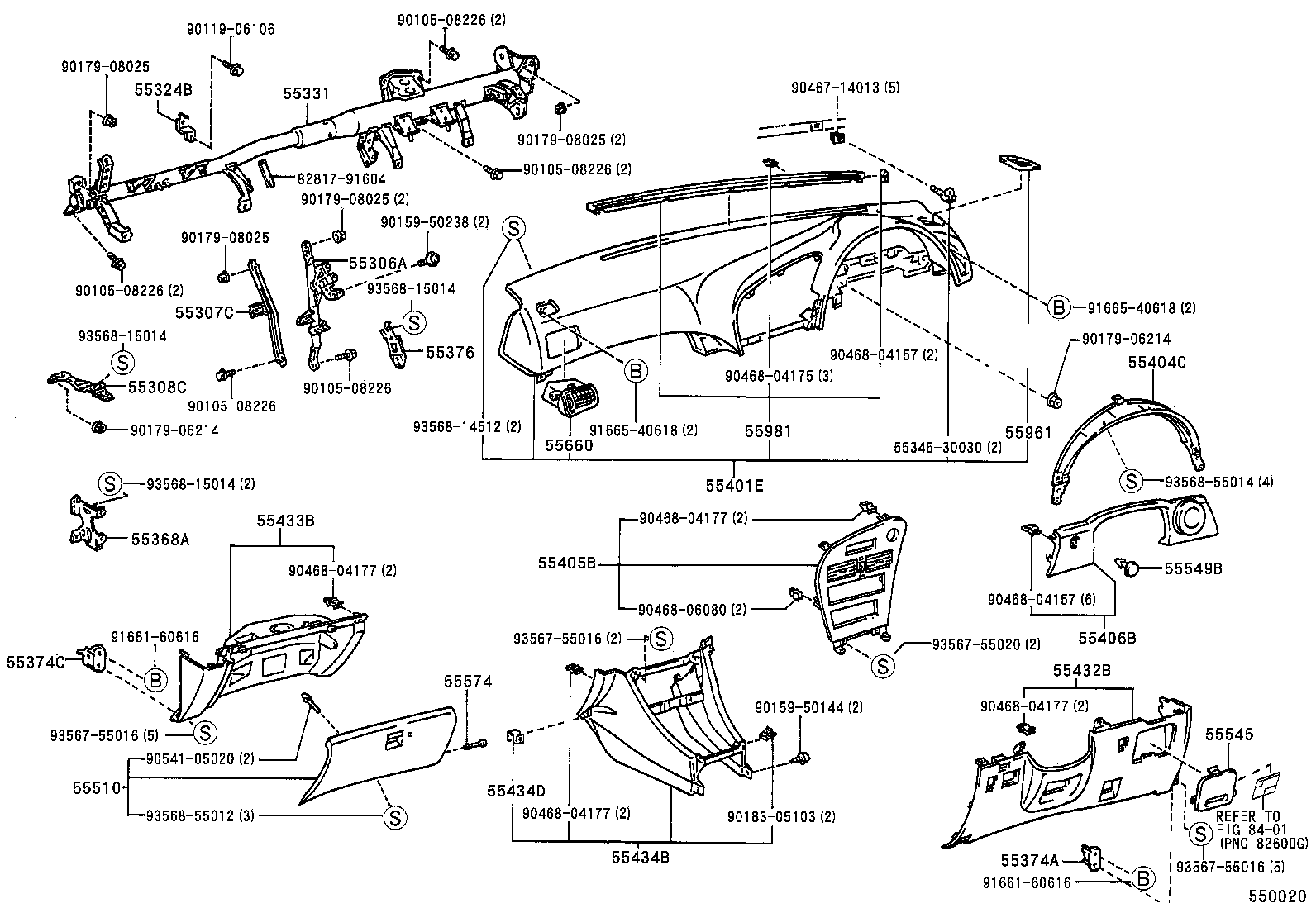

ILLUST NO. 1 OF 2(9311- )RHD

Click highlighted areas on diagram

diagram 55306A 55307C 55308C 55324B 55331 5534530030 55368A 55374A 55374C 55376 55401E 55404C 55405B 55406B 55432B 55433B 55434B 55434D 55510 55545 55549B 55574 55660 55961 55981 8281791604 8401 9010508226 9010508226 9010508226 9010508226 9010508226 9011906106 9015950144 9015950238 9017906214 9017906214 9017908025 9017908025 9017908025 9017908025 9018305103 9046714013 9046804157 9046804157 9046804175 9046804177 9046804177 9046804177 9046804177 9046806080 9054105020 9166160616 9166160616 9166540618 9166540618 9356755016 9356755016 9356755016 9356755020 9356814512 9356815014 9356815014 9356815014 9356855012 9356855014
Part # Description Qty Price
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-20220

ST20#..RHD

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55352-20190

ST20#..RHD

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-20200

ST20#

 1
55324B - BRACKET, INSTRUMENT PANEL, NO.4
55324-20100

ST20#..RHD

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-20190

ST202,204..RHD

 1
55330-20190

ST20#..RHD

 1
55368A - BRACKET, RADIO MOUNTING, NO.2
55368-20090

ST20#..RHD

 1
55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55374-20030

ST20#

 1
55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55374-20030

ST20#

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-20150

ST20#..RHD

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-20680C0

ST20#..RHD

BLACK,TRIM2#

 1
55401-20680C0

ST202,204..RHD

BLACK,TRIM2#

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55411-20660

ST20#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-20190

ST20#..RHD

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-20060

ST20#..RHD

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-20330C0

ST20#..RHD

BLACK,TRIM2#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-20130C0

ST20#..RHD

BLACK,TRIM2#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-20170C0

ST20#..RHD

BLACK,TRIM2#

 1
55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER
90183-05045

ST20#

 2
90183-05018

ST20#

 2
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-20140C0

ST20#

BLACK,TRIM2#

 1
55545 - COVER, FUSE BOX OPENING
55545-20050C0

ST20#..RHD

BLACK,TRIM2#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

ST20#

 2
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-20230C0

ST20#..RHD

BLACK,TRIM2#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-20230C0

ST20#..RHD

BLACK,TRIM2#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-20120

ST20#

 1
Common parts
55345-30030
82817-91604
90105-08226
90119-06106
90159-50144
90159-50238
90179-06214
90179-08025
90183-05103
90467-14013
90468-04157
90468-04175
90468-04177
90468-06080
90541-05020
91661-60616
91665-40618
93567-55016
93567-55020
93568-14512
93568-15014
93568-55012
93568-55014
Linked diagrams
8401

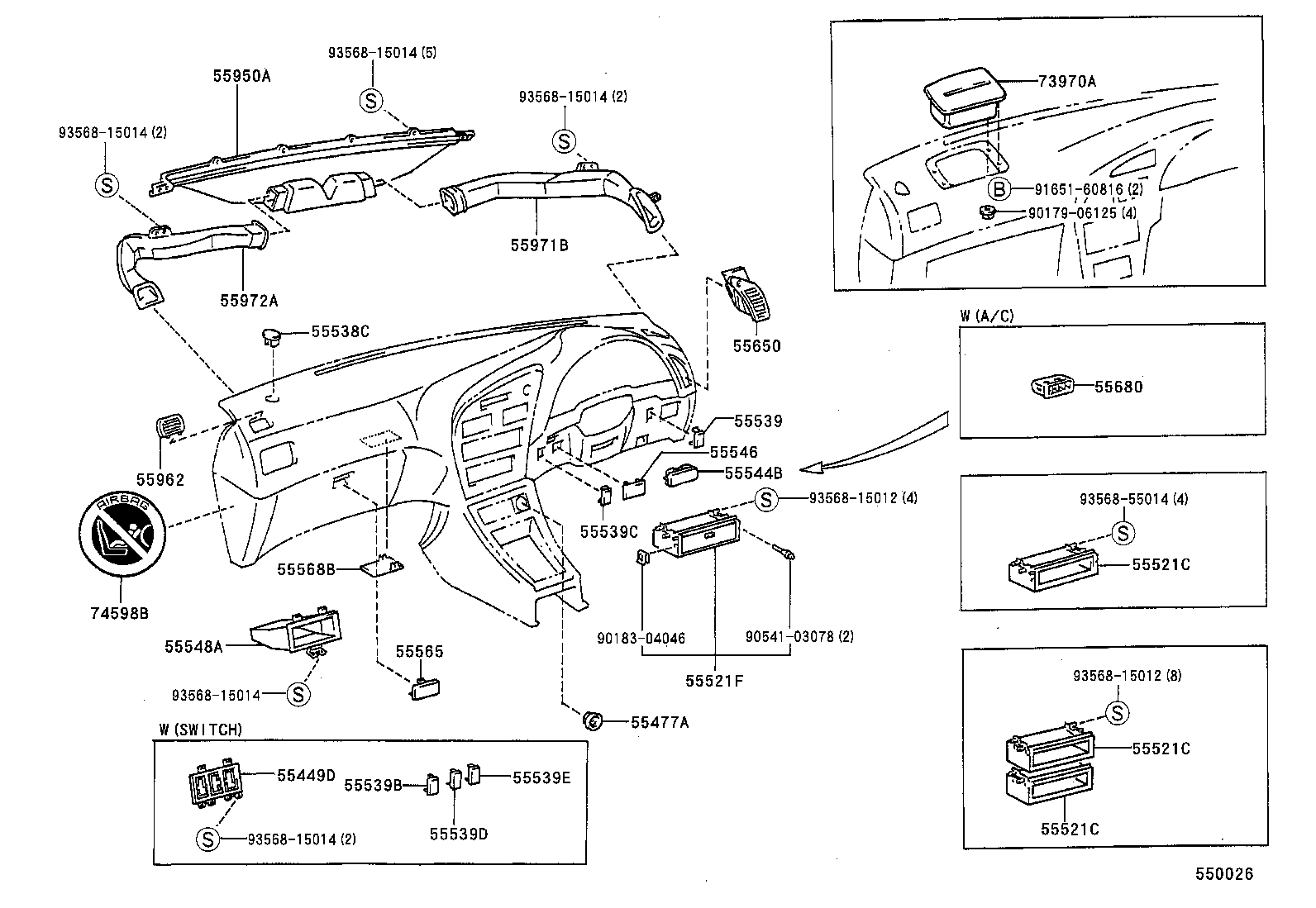

ILLUST NO. 2 OF 2(9311- )RHD

Click highlighted areas on diagram

diagram 55449D 55477A 55521C 55521C 55521C 55521F 55538C 55539 55539B 55539C 55539D 55539E 55544B 55546 55548A 55565 55568B 55650 55680 55950A 55962 55971B 55972A 73970A 74598B 9017906125 9018304046 9054103078 9165160816 9356815012 9356815012 9356815014 9356815014 9356815014 9356815014 9356815014 9356855014
Part # Description Qty Price
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-20110

ST20#

 1
55521C - COVER, STEREO OPENING
55521-16030

ST202..GEN

W(RADIO)

 1
55521-16030

ST20#..ARL,GEN

 2
55521C - COVER, STEREO OPENING
55521-16030

ST202..GEN

W(RADIO)

 1
55521-16030

ST20#..ARL,GEN

 2
55521C - COVER, STEREO OPENING
55521-16030

ST202..GEN

W(RADIO)

 1
55521-16030

ST20#..ARL,GEN

 2
55521F - COVER, STEREO OPENING, NO.2
55520-14050

ST202

 1
55538C - COVER, COOLER SWITCH HOLE
55538-20110C0

ST20#..RHD

BLACK,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-20080C0

ST20#

BLACK,TRIM2#

 1
55539-12130C0

ST20#

BLACK,TRIM2#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-12130C0

ST202,204

BLACK,TRIM2#

 1
55539-20080C0

ST202,204

BLACK,TRIM2#

 1
55546 - COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE
55546-20020C0

ST20#..RHD

BLACK,TRIM2#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-20090

ST202

 1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-2007022

ST20#

BLACK,TRIM2#

 1
55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH
55568-24020

ST20#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-20250

ST20#..RHD

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-14030C0

ST202

BLACK,TRIM2#

 1
55950A - NOZZLE ASSY, DEFROSTER
55950-20140

ST20#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-20230C0

ST20#..RHD

BLACK,TRIM2#

 1
55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-20110

ST20#..RHD

 1
55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-20060

ST20#..RHD

 1
Common parts
90179-06125
90183-04046
90541-03078
91651-60816
93568-15012
93568-15014
93568-55014
