ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9311- )

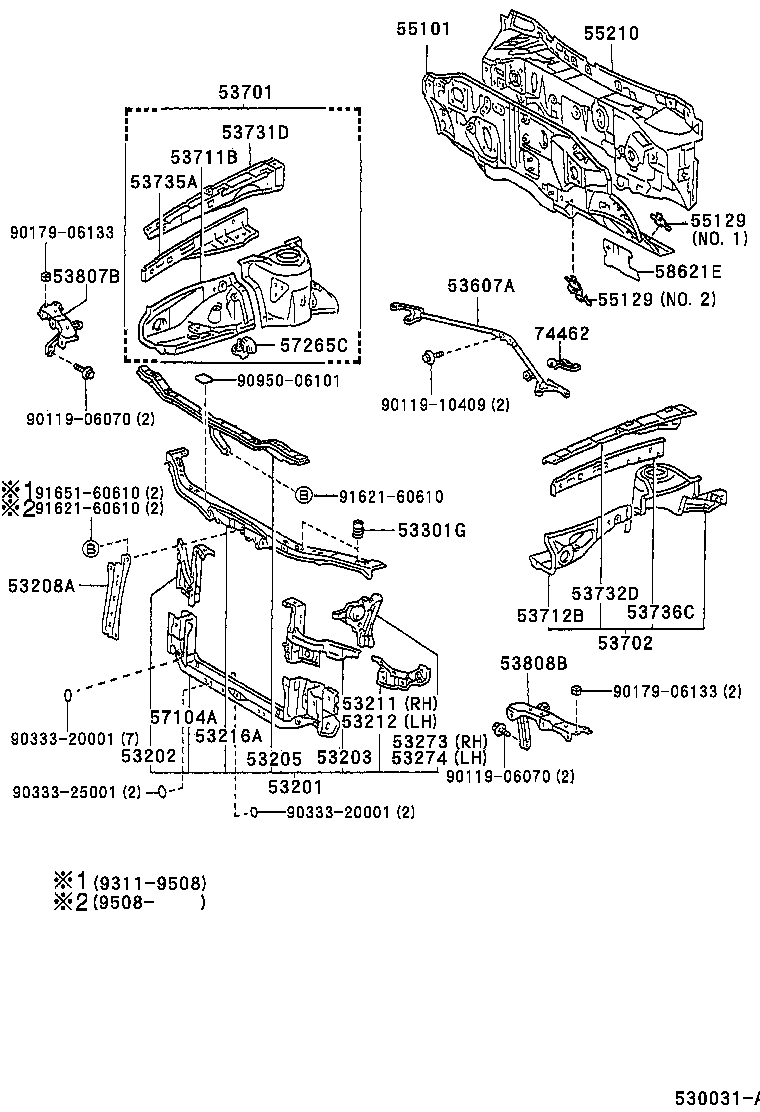

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-20660 |
ST202,204 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-20130 |
ST20# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-20210 |
ST20# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-20060 |
ST202,204 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-20090 |
ST20# |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-20240 |
ST20# |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-20240 |
ST20# |
1 | ||
| 53216A - SUPPORT, RADIATOR, UPPER | ||||
| 53216-20170 |
ST202,204 |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-20020 |
ST20# |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-20020 |
ST20# |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15020 |
ST20# |
4 | ||
| 53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER | ||||
| 53607-20050 |
ST202,204 |
1 | ||
| 53607-20050 |
ST202 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-20760 |
ST20# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-20730 |
ST20# |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-20901 |
ST20# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-20310 |
ST20# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-20110 |
ST20# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-20110 |
ST20# |
1 | ||
| 53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH | ||||
| 53735-20070 |
ST20# |
1 | ||
| 53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH | ||||
| 53736-20090 |
ST20# |
1 | ||
| 53807B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH | ||||
| 53807-20010 |
ST20# |
1 | ||
| 53808B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH | ||||
| 53808-20010 |
ST20# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-2B550 |
ST202,204..RHD..MTM |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55139-20010 |
ST20# NO.2 |
2 | ||
| 55129-20020 |
ST20# NO.1 |
2 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55139-20010 |
ST20# NO.2 |
2 | ||
| 55129-20020 |
ST20# NO.1 |
2 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-20250 |
ST20#..RHD |
1 | ||
| 55210-20251 |
ST20#..RHD |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-20120 |
ST20# |
1 | ||
| 57265C - BRACKET, ENGINE MOUNTING, RH | ||||
| 57265-20120 |
ST20# |
1 | ||
| 58621E - PAD, FRONT FLOOR SILENCER | ||||
| 58621-20040 |
ST20# |
1 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 90119-10409 | ||||
| 90179-06133 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-06101 | ||||
| 91621-60610 | ||||
| 91651-60610 | ||||
