ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9311- )

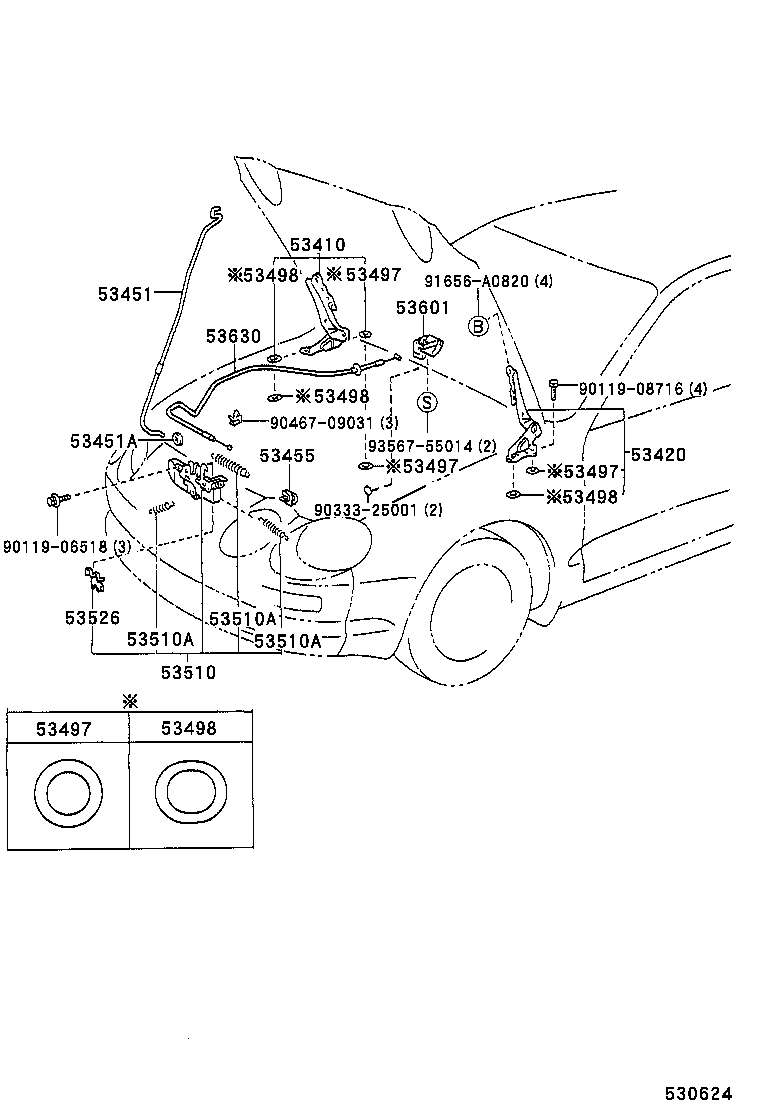

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-20240 |
ST202,204 |
1 | ||
| 53410-20250 |
ST20# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-20230 |
ST202,204 |
1 | ||
| 53420-20240 |
ST20# |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-20160 |
ST20# |
1 | ||
| 53451-20170 |
ST20# |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15020 |
ST20# |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-14020 |
ST20# |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
ST20# T=1.0 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
ST20# T=1.0 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
ST20# T=1.0 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
ST20# T=1.0 |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-50010 |
ST20# |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-50010 |
ST20# |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-50010 |
ST20# |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-50010 |
ST20# |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-20471 |
ST202,204..RHD |
1 | ||
| 53510-20472 |
ST202,204..RHD |
1 | ||
| 53510-20470 |
ST202,204..RHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12067 |
ST20# WD=1.4,CW=7.25 |
1 | ||
| 90506-09057 |
ST20#..RHD WD=0.9,CW=23 |
1 | ||
| 90506-23046 |
ST202,204 OD=17,CW=16 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12067 |
ST20# WD=1.4,CW=7.25 |
1 | ||
| 90506-09057 |
ST20#..RHD WD=0.9,CW=23 |
1 | ||
| 90506-23046 |
ST202,204 OD=17,CW=16 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12067 |
ST20# WD=1.4,CW=7.25 |
1 | ||
| 90506-09057 |
ST20#..RHD WD=0.9,CW=23 |
1 | ||
| 90506-23046 |
ST202,204 OD=17,CW=16 |
1 | ||
| 53526 - PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2 | ||||
| 53526-12040 |
ST20#..RHD |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-1602022 |
ST20# BLACK,TRIM2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-20510 |
ST20#..RHD |
1 | ||
| Common parts | ||||
| 90119-06518 | ||||
| 90119-08716 | ||||
| 90333-25001 | ||||
| 90467-09031 | ||||
| 91656-A0820 | ||||
| 93567-55014 | ||||
