ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9311- )

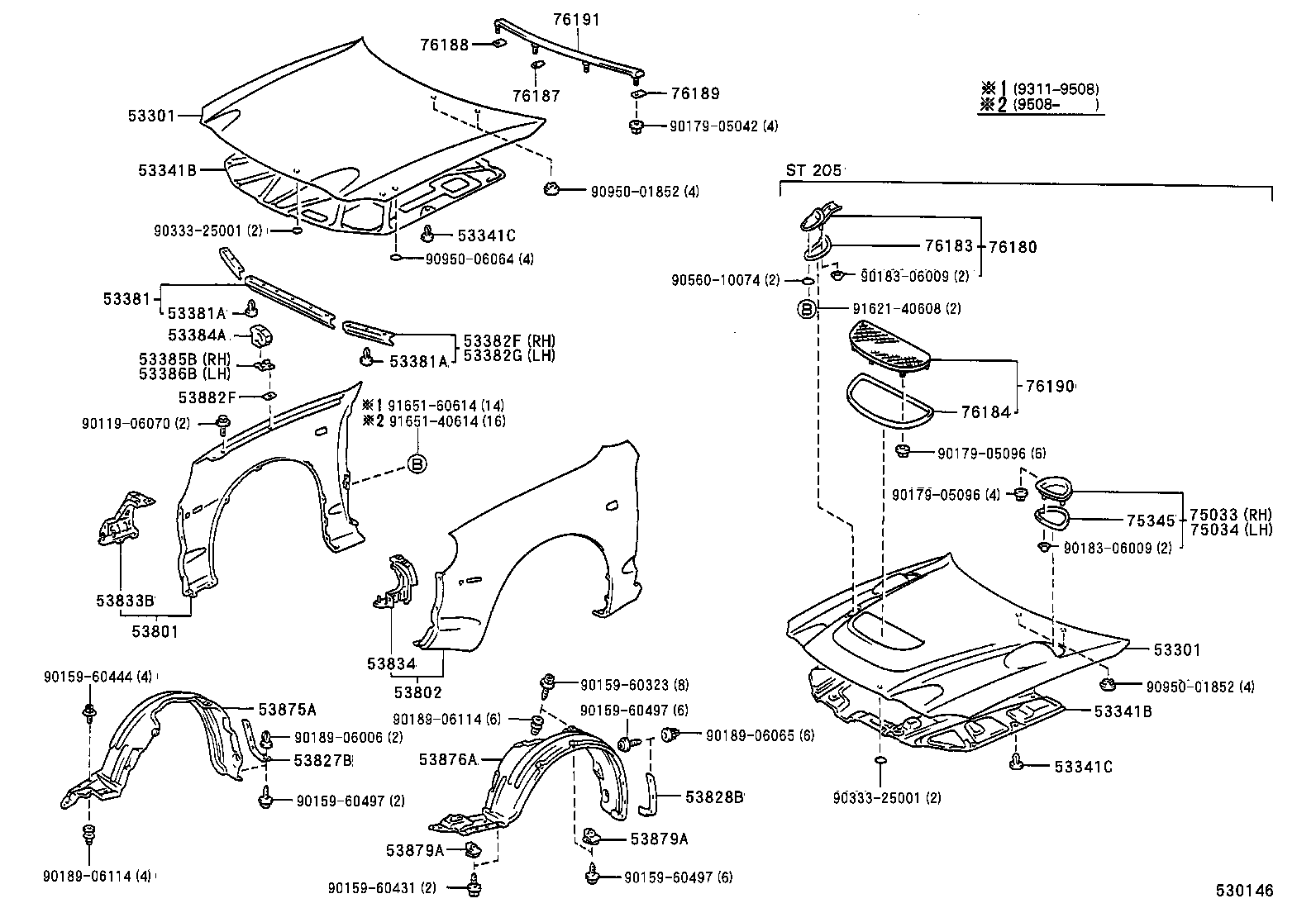

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-20480 |
ST202,204 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-20480 |
ST202,204 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-20140 |
ST20# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ST20# |
12 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ST20# |
12 | ||
| 53382F - SEAL, HOOD TO RADIATOR SUPPORT, RH | ||||
| 53382-20040 |
ST20# |
1 | ||
| 53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH | ||||
| 53382-20040 |
ST20# |
1 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-34010 |
ST20# |
2 | ||
| 53385B - BRACKET, FENDER TO HOOD BUMPER, RH | ||||
| 53386-20020 |
ST20# |
1 | ||
| 53386B - BRACKET, FENDER TO HOOD BUMPER, LH | ||||
| 53385-20020 |
ST20# |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-2B310 |
ST20# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-2B310 |
ST20# |
1 | ||
| 53827B - PROTECTOR, FRONT FENDER SIDE PANEL | ||||
| 53827-20060 |
ST202 |
1 | ||
| 53827-20060 |
ST20# |
1 | ||
| 53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-20060 |
ST20# |
1 | ||
| 53828-20060 |
ST202 |
1 | ||
| 53833B - PANEL, FRONT FENDER SIDE, RH | ||||
| 53831-20120 |
ST20# |
1 | ||
| 53834 - PANEL, FRONT FENDER SIDE, LOWER LH | ||||
| 53832-20120 |
ST20# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-20260 |
ST202,204 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-20270 |
ST202,204 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14010 |
ST20# |
10 | ||
| 53879-14020 |
ST20# |
10 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14010 |
ST20# |
10 | ||
| 53879-14020 |
ST20# |
10 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ST20# |
6 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 90159-60323 | ||||
| 90159-60431 | ||||
| 90159-60444 | ||||
| 90159-60497 | ||||
| 90179-05042 | ||||
| 90179-05096 | ||||
| 90183-06009 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-06114 | ||||
| 90333-25001 | ||||
| 90560-10074 | ||||
| 90950-01852 | ||||
| 90950-06064 | ||||
| 91621-40608 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
