ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )ST202,204

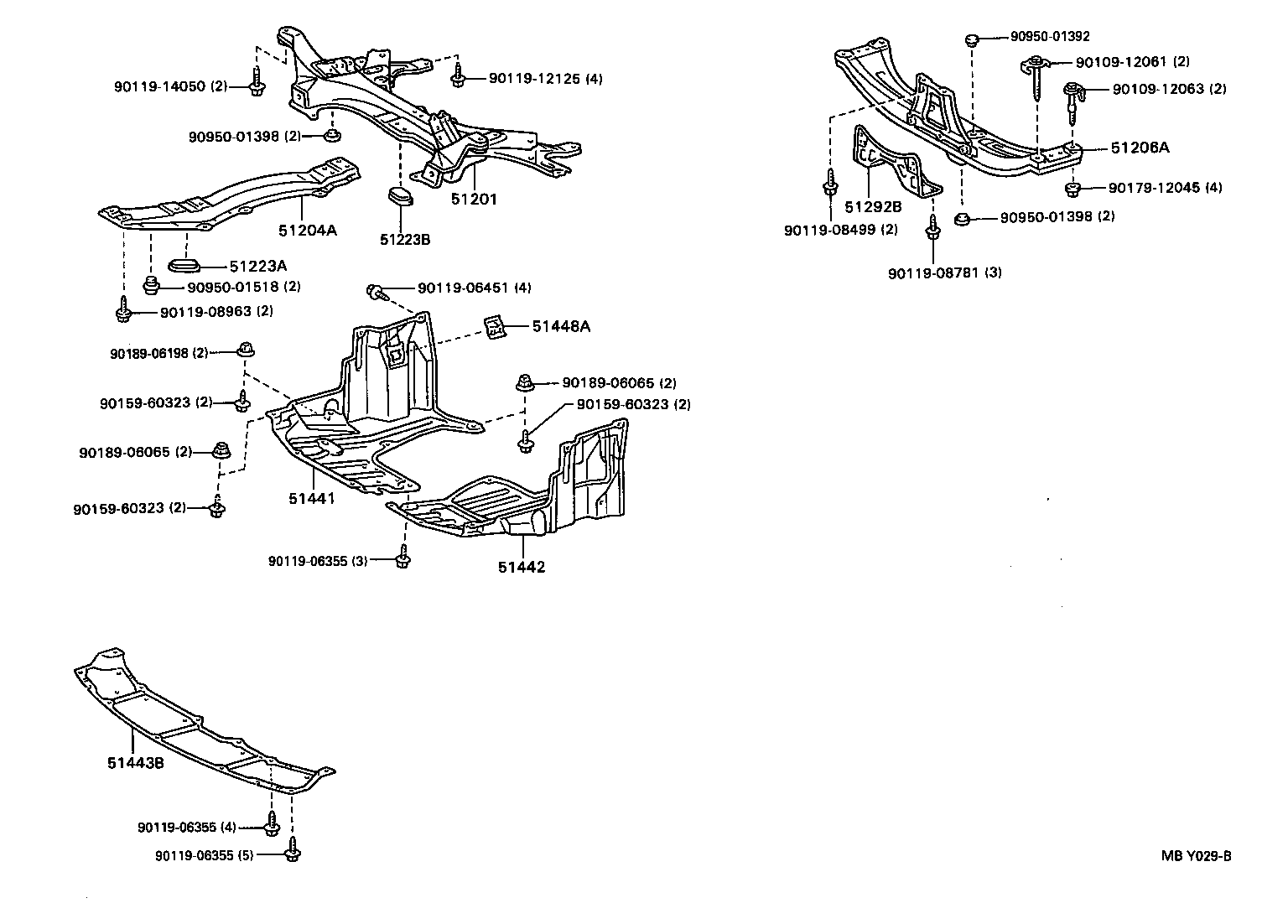

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51223A 51223B 51292B 51441 51442 51443B 51448A 9010912061 9010912063 9011906355 9011906355 9011906355 9011906451 9011908499 9011908781 9011908963 9011912125 9011914050 9015960323 9015960323 9015960323 9017912045 9018906065 9018906065 9018906198 9095001392 9095001398 9095001398 9095001518
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20300

ST202,204

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20130

ST20#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-20070

ST202,204

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20030

ST20#

 1
51223B - COVER, ENGINE MOUNTING HOLE
51223-20050

ST20#

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-20360

ST202,204

 1
51441-20400

ST202,204

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20460

ST202,204..MTM

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-20090

ST204..MTM;ST202,205..ARL,GEN

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20030

ST20#

 1
Common parts
90109-12061
90109-12063
90119-06355
90119-06451
90119-08499
90119-08781
90119-08963
90119-12125
90119-14050
90159-60323
90179-12045
90189-06065
90189-06198
90950-01392
90950-01398
90950-01518
