ST202R-BLMSK (1993)
Toyota Celica

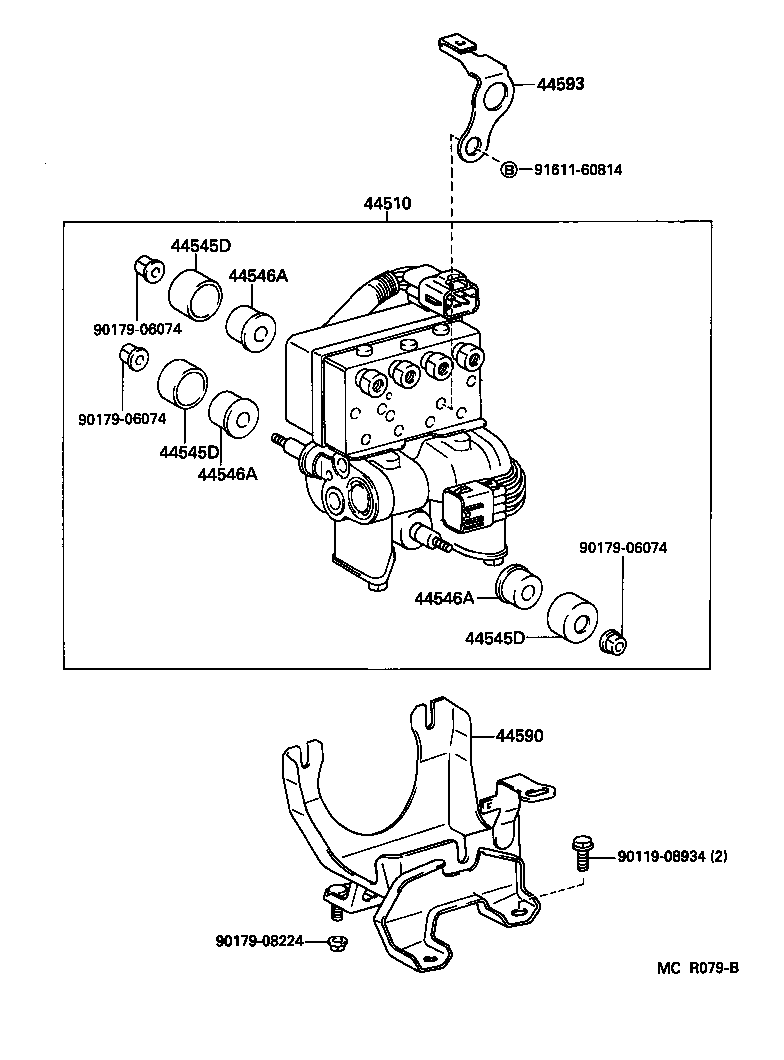

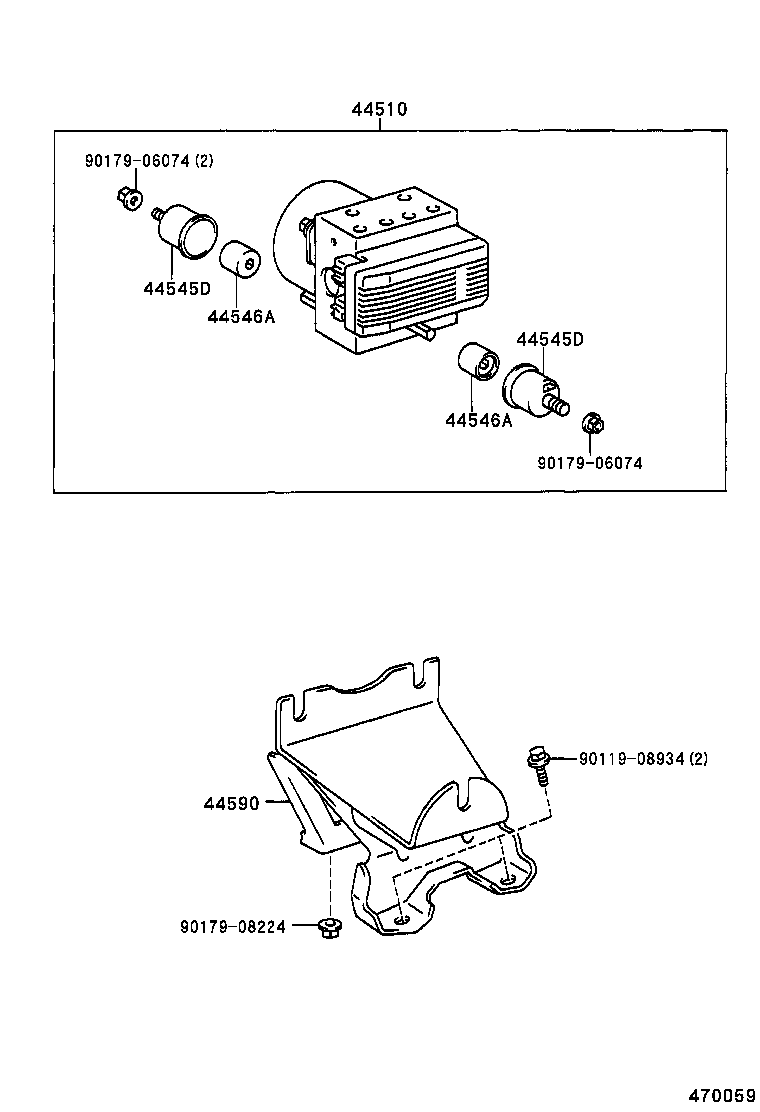

ILLUST NO. 2 OF 2(9606- )
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-20190 |
ST202 |
1 | ||
| 44510-20250 |
ST202 |
1 | ||
| 44510-20150 |
ST202 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
ST20# |
3 | ||
| 44545-35080 |
ST20# |
3 | ||
| 44545-21010 |
ST20# |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
ST20# |
3 | ||
| 44545-35080 |
ST20# |
3 | ||
| 44545-21010 |
ST20# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
ST20# |
3 | ||
| 44546-35080 |
ST20# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
ST20# |
3 | ||
| 44546-35080 |
ST20# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-20020 |
ST20# |
1 | ||
| 44590-20010 |
ST20# |
1 | ||
| Common parts | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08224 | ||||

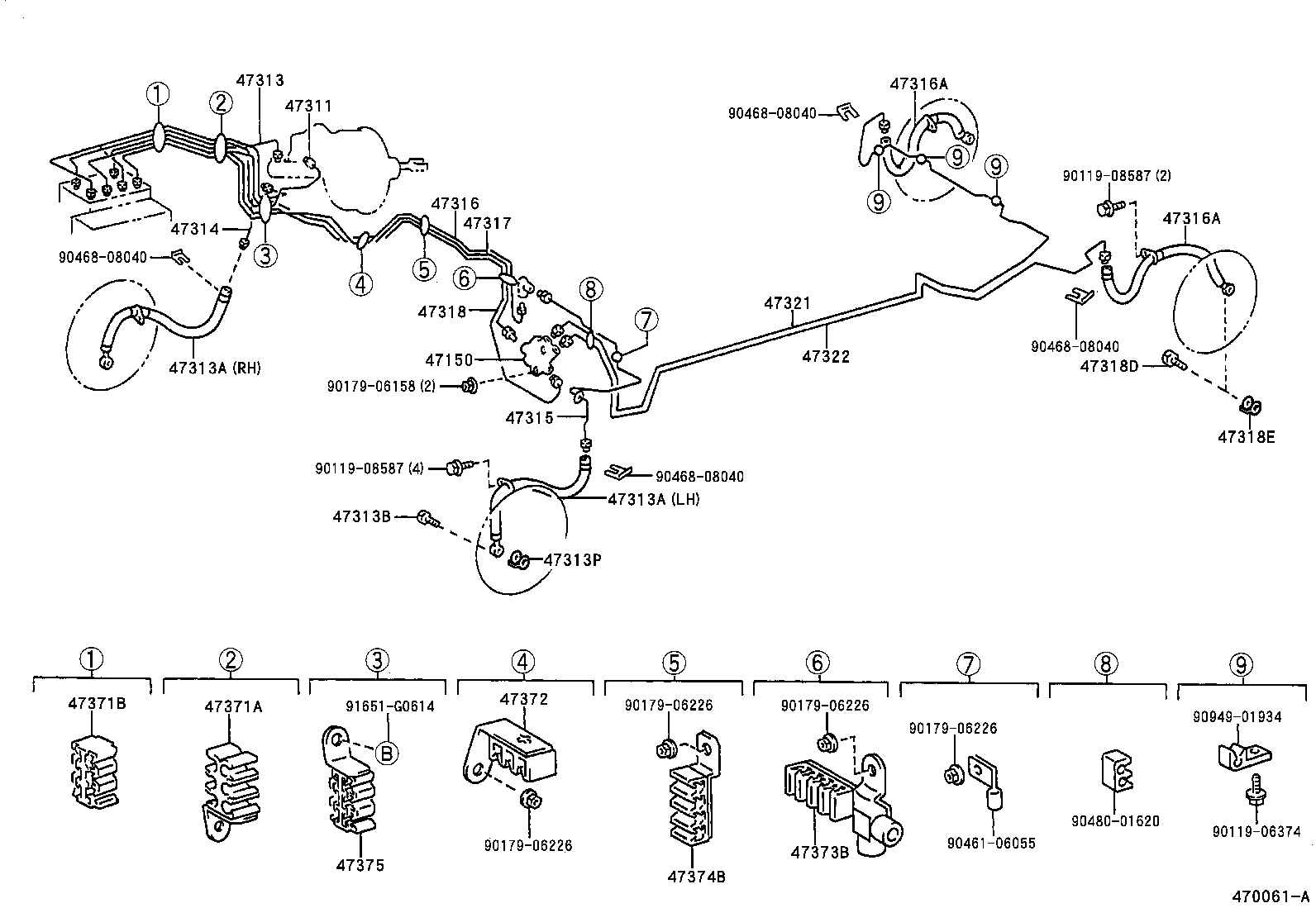

ILLUST NO. 1 OF 2(9606- )ST202,204..RHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20380 |
ST202,204..RHD W(ABS) |
1 | ||
| 47150-20330 |
ST202,204..RHD |
1 | ||
| 47150-16050 |
ST202,204..RHD |
1 | ||
| 47150-20240 |
ST202,204..RHD W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-2B100 |
ST20#..RHD W(ABS) |
1 | ||
| 47311-2B080 |
ST202,204..RHD |
1 | ||
| 47311-2B140 |
ST20#..RHD W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20710 |
ST20#..RHD W(ABS) |
1 | ||
| 47313-20740 |
ST20#..RHD W(ABS) |
1 | ||
| 47313-20690 |
ST202,204..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02761 |
ST202,204 RH |
1 | ||
| 90947-02762 |
ST202,204 LH |
1 | ||
| 90947-02847 |
ST202,204 RH |
1 | ||
| 90947-02848 |
ST202,204 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02761 |
ST202,204 RH |
1 | ||
| 90947-02762 |
ST202,204 LH |
1 | ||
| 90947-02847 |
ST202,204 RH |
1 | ||
| 90947-02848 |
ST202,204 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST202,204 |
2 | ||
| 90401-10058 |
ST20# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST20# |
4 | ||
| 47389-50020 |
ST20# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20600 |
ST20#..RHD W(ABS) |
1 | ||
| 47314-20580 |
ST202,204..RHD |
1 | ||
| 47314-20630 |
ST20#..RHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20630 |
ST202,204..RHD |
1 | ||
| 47315-20650 |
ST20#..RHD W(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20580 |
ST20#..RHD |
1 | ||
| 47316-20550 |
ST20#..RHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02769 |
ST202,204 |
2 | ||
| 90947-02852 |
ST202,204 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02769 |
ST202,204 |
2 | ||
| 90947-02852 |
ST202,204 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-20230 |
ST20#..RHD |
1 | ||
| 47317-20200 |
ST20#..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20330 |
ST20#..RHD |
1 | ||
| 47318-20370 |
ST20#..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ST20# |
2 | ||
| 90401-10015 |
ST202,204 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ST20# |
2 | ||
| 47389-30010 |
ST20# |
4 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20380 |
ST202,204 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20490 |
ST202,204 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20440 |
ST20# W(ABS) |
1 | ||
| 47371-20490 |
ST202,204..RHD |
1 | ||
| 47371-20480 |
ST20#..RHD W(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-20590 |
ST20#..RHD |
1 | ||
| 90949-01969 |
ST20# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20450 |
ST20#..RHD W(ABS) |
1 | ||
| 47371-20560 |
ST20#..RHD W(ABS) |
1 | ||
| 47371-20510 |
ST202,204..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20520 |
ST202,204..RHD |
1 | ||
| 47371-20570 |
ST20#..RHD W(ABS) |
1 | ||
| 47371-20480 |
ST20#..RHD W(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20560 |
ST20#..RHD |
1 | ||
| 47371-20590 |
ST20#..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20570 |
ST20#..RHD |
1 | ||
| 47371-20620 |
ST20#..RHD |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90119-08587 | ||||
| 90179-06158 | ||||
| 90179-06226 | ||||
| 90461-06055 | ||||
| 90468-08040 | ||||
| 90480-01620 | ||||
| 90949-01934 | ||||
| 91651-G0614 | ||||

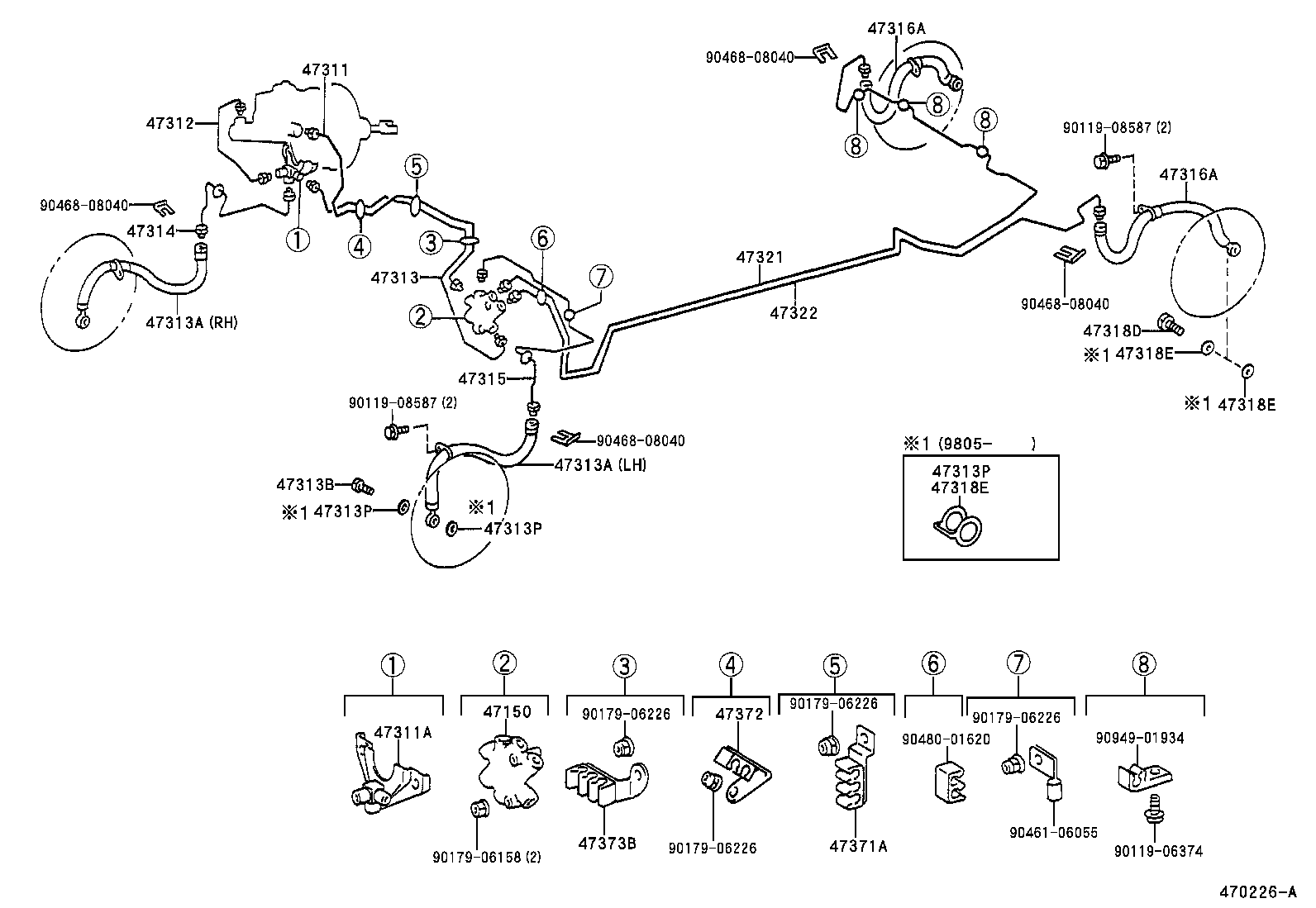

(9311- )ST202,204..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20380 |
ST202,204..RHD W(ABS) |
1 | ||
| 47150-20330 |
ST202,204..RHD |
1 | ||
| 47150-16050 |
ST202,204..RHD |
1 | ||
| 47150-20240 |
ST202,204..RHD W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-2B100 |
ST20#..RHD W(ABS) |
1 | ||
| 47311-2B080 |
ST202,204..RHD |
1 | ||
| 47311-2B140 |
ST20#..RHD W(ABS) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10171 |
ST202,204..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20340 |
ST202,204..RHD |
1 | ||
| 47312-20320 |
ST202,204..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20710 |
ST20#..RHD W(ABS) |
1 | ||
| 47313-20740 |
ST20#..RHD W(ABS) |
1 | ||
| 47313-20690 |
ST202,204..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02761 |
ST202,204 RH |
1 | ||
| 90947-02762 |
ST202,204 LH |
1 | ||
| 90947-02847 |
ST202,204 RH |
1 | ||
| 90947-02848 |
ST202,204 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02761 |
ST202,204 RH |
1 | ||
| 90947-02762 |
ST202,204 LH |
1 | ||
| 90947-02847 |
ST202,204 RH |
1 | ||
| 90947-02848 |
ST202,204 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST202,204 |
2 | ||
| 90401-10058 |
ST20# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST20# |
4 | ||
| 47389-50020 |
ST20# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST20# |
4 | ||
| 47389-50020 |
ST20# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST20# |
4 | ||
| 47389-50020 |
ST20# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20600 |
ST20#..RHD W(ABS) |
1 | ||
| 47314-20580 |
ST202,204..RHD |
1 | ||
| 47314-20630 |
ST20#..RHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20630 |
ST202,204..RHD |
1 | ||
| 47315-20650 |
ST20#..RHD W(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02769 |
ST202,204 |
2 | ||
| 90947-02852 |
ST202,204 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02769 |
ST202,204 |
2 | ||
| 90947-02852 |
ST202,204 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ST20# |
2 | ||
| 90401-10015 |
ST202,204 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ST20# |
2 | ||
| 47389-30010 |
ST20# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ST20# |
2 | ||
| 47389-30010 |
ST20# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ST20# |
2 | ||
| 47389-30010 |
ST20# |
4 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20380 |
ST202,204 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20490 |
ST202,204 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20440 |
ST20# W(ABS) |
1 | ||
| 47371-20490 |
ST202,204..RHD |
1 | ||
| 47371-20480 |
ST20#..RHD W(ABS) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20450 |
ST20#..RHD W(ABS) |
1 | ||
| 47371-20560 |
ST20#..RHD W(ABS) |
1 | ||
| 47371-20510 |
ST202,204..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20520 |
ST202,204..RHD |
1 | ||
| 47371-20570 |
ST20#..RHD W(ABS) |
1 | ||
| 47371-20480 |
ST20#..RHD W(ABS) |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90119-08587 | ||||
| 90179-06158 | ||||
| 90179-06226 | ||||
| 90461-06055 | ||||
| 90468-08040 | ||||
| 90480-01620 | ||||
| 90949-01934 | ||||

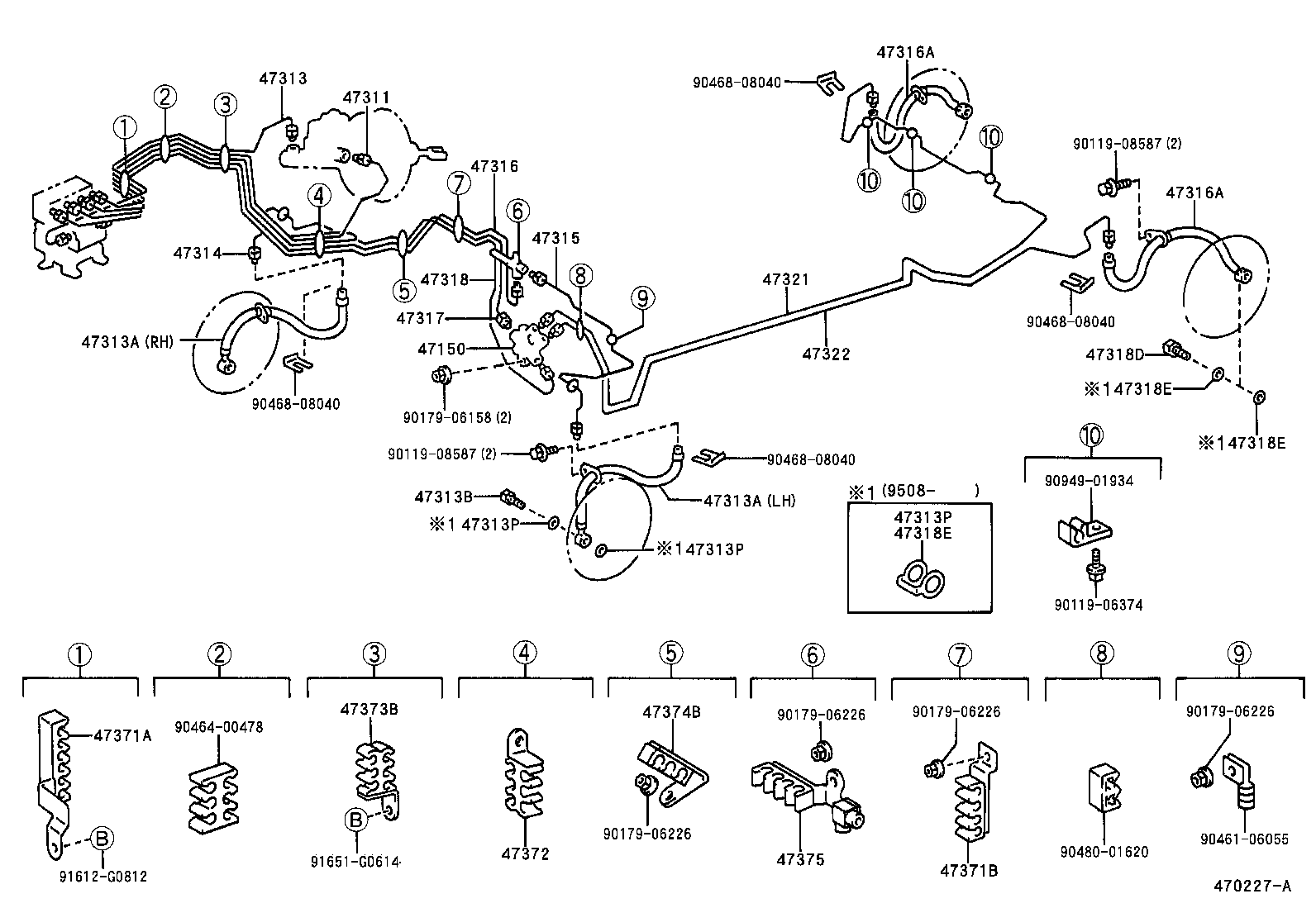

ILLUST NO. 1 OF 2(9311-9606)ST202,204..RHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20380 |
ST202,204..RHD W(ABS) |
1 | ||
| 47150-20330 |
ST202,204..RHD |
1 | ||
| 47150-16050 |
ST202,204..RHD |
1 | ||
| 47150-20240 |
ST202,204..RHD W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-2B100 |
ST20#..RHD W(ABS) |
1 | ||
| 47311-2B080 |
ST202,204..RHD |
1 | ||
| 47311-2B140 |
ST20#..RHD W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20710 |
ST20#..RHD W(ABS) |
1 | ||
| 47313-20740 |
ST20#..RHD W(ABS) |
1 | ||
| 47313-20690 |
ST202,204..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02761 |
ST202,204 RH |
1 | ||
| 90947-02762 |
ST202,204 LH |
1 | ||
| 90947-02847 |
ST202,204 RH |
1 | ||
| 90947-02848 |
ST202,204 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02761 |
ST202,204 RH |
1 | ||
| 90947-02762 |
ST202,204 LH |
1 | ||
| 90947-02847 |
ST202,204 RH |
1 | ||
| 90947-02848 |
ST202,204 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST202,204 |
2 | ||
| 90401-10058 |
ST20# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST20# |
4 | ||
| 47389-50020 |
ST20# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST20# |
4 | ||
| 47389-50020 |
ST20# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST20# |
4 | ||
| 47389-50020 |
ST20# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20600 |
ST20#..RHD W(ABS) |
1 | ||
| 47314-20580 |
ST202,204..RHD |
1 | ||
| 47314-20630 |
ST20#..RHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20630 |
ST202,204..RHD |
1 | ||
| 47315-20650 |
ST20#..RHD W(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20580 |
ST20#..RHD |
1 | ||
| 47316-20550 |
ST20#..RHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02769 |
ST202,204 |
2 | ||
| 90947-02852 |
ST202,204 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02769 |
ST202,204 |
2 | ||
| 90947-02852 |
ST202,204 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-20230 |
ST20#..RHD |
1 | ||
| 47317-20200 |
ST20#..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20330 |
ST20#..RHD |
1 | ||
| 47318-20370 |
ST20#..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ST20# |
2 | ||
| 90401-10015 |
ST202,204 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ST20# |
2 | ||
| 47389-30010 |
ST20# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ST20# |
2 | ||
| 47389-30010 |
ST20# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ST20# |
2 | ||
| 47389-30010 |
ST20# |
4 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20380 |
ST202,204 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20490 |
ST202,204 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20440 |
ST20# W(ABS) |
1 | ||
| 47371-20490 |
ST202,204..RHD |
1 | ||
| 47371-20480 |
ST20#..RHD W(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-20590 |
ST20#..RHD |
1 | ||
| 90949-01969 |
ST20# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20450 |
ST20#..RHD W(ABS) |
1 | ||
| 47371-20560 |
ST20#..RHD W(ABS) |
1 | ||
| 47371-20510 |
ST202,204..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20520 |
ST202,204..RHD |
1 | ||
| 47371-20570 |
ST20#..RHD W(ABS) |
1 | ||
| 47371-20480 |
ST20#..RHD W(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20560 |
ST20#..RHD |
1 | ||
| 47371-20590 |
ST20#..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20570 |
ST20#..RHD |
1 | ||
| 47371-20620 |
ST20#..RHD |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90119-08587 | ||||
| 90179-06158 | ||||
| 90179-06226 | ||||
| 90461-06055 | ||||
| 90464-00478 | ||||
| 90468-08040 | ||||
| 90480-01620 | ||||
| 90949-01934 | ||||
| 91612-G0812 | ||||
| 91651-G0614 | ||||
ILLUST NO. 2 OF 2(9311-9606)
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-20190 |
ST202 |
1 | ||
| 44510-20250 |
ST202 |
1 | ||
| 44510-20150 |
ST202 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
ST20# |
3 | ||
| 44545-35080 |
ST20# |
3 | ||
| 44545-21010 |
ST20# |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
ST20# |
3 | ||
| 44545-35080 |
ST20# |
3 | ||
| 44545-21010 |
ST20# |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
ST20# |
3 | ||
| 44545-35080 |
ST20# |
3 | ||
| 44545-21010 |
ST20# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
ST20# |
3 | ||
| 44546-35080 |
ST20# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
ST20# |
3 | ||
| 44546-35080 |
ST20# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
ST20# |
3 | ||
| 44546-35080 |
ST20# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-20020 |
ST20# |
1 | ||
| 44590-20010 |
ST20# |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-20080 |
ST20# |
1 | ||
| Common parts | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08224 | ||||
| 91611-60814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
