ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9311- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-20140

ST202..RHD

 1
04465-20450

ST202..RHD

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-20080

ST202..RHD

 1
04945-32170

ST202..RHD

 1
04945-20080

ST202..RHD

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-32170

ST202

 1
04947-33030

ST202

 1

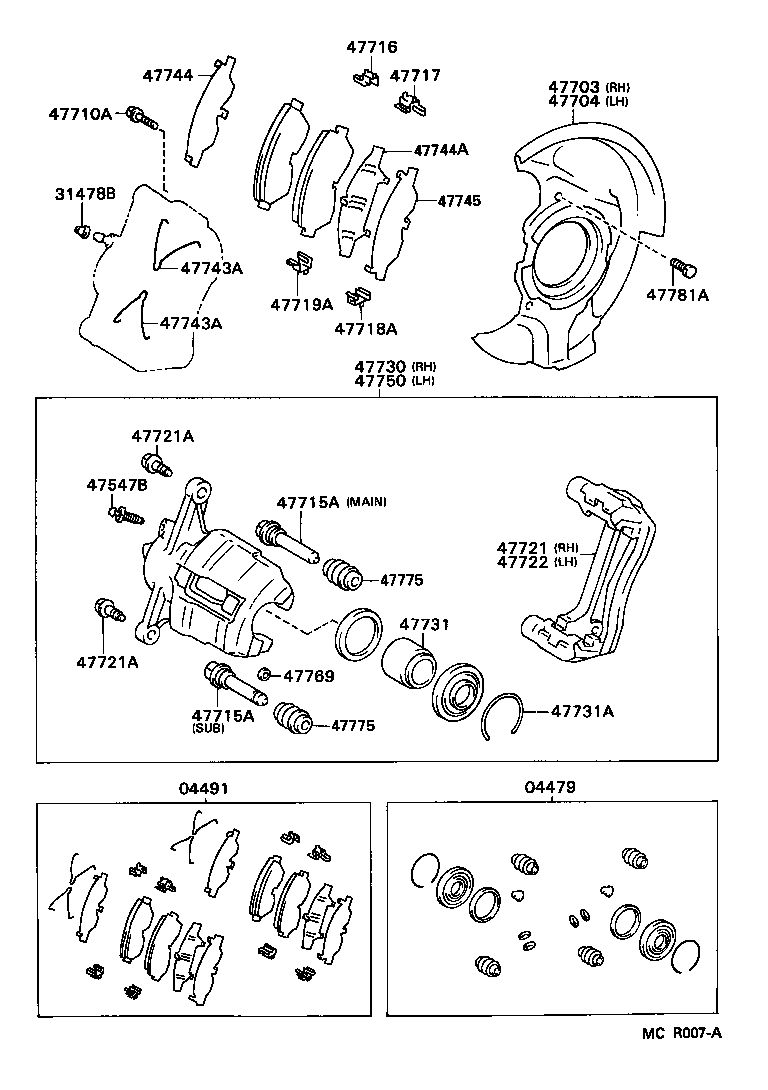

ILLUST NO. 1 OF 2(9311- )ST202..RHD

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47703 47704 47710A 47715A 47715A 47716 47717 47718A 47719A 47721 47721A 47721A 47722 47730 47731 47731A 47743A 47743A 47744 47744A 47745 47750 47769 47775 47775 47781A
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-20170

ST202

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-2B050

ST202..RHD

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ST202,204

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

ST202,204

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47781-20330

ST202

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47782-20330

ST202

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12131

ST202,204

*12-1.25PX25.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-50010

ST202,204

SUB PIN SIDE

 2
47715-50030

ST202,204

MAIN PIN SIDE

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-50010

ST202,204

SUB PIN SIDE

 2
47715-50030

ST202,204

MAIN PIN SIDE

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-33050

ST202

 2
47716-33010

ST202

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-33020

ST202

 2
47716-33060

ST202

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-20150

ST202

 2
47717-33010

ST202

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-33020

ST202

 2
47717-20160

ST202

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-20370

ST202

 1
47721-20371

ST202

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

ST202,204

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

ST202,204

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-20081

ST202

 1
47722-20080

ST202

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-20481

ST202

 1
47730-20480

ST202

 1
47731 - PISTON, FRONT DISC BRAKE
47731-20190

ST202

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-66001

ST202,204

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-50010

ST202

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-50010

ST202

 4
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-32090

ST202..RHD

 1
47744-20120

ST202..RHD

 1
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47744-33010

ST202..RHD

 1
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-33010

ST202..RHD

 1
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-20480

ST202

 1
47750-20481

ST202

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

ST202,204

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-20080

ST202

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-20080

ST202

 4
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90109-06192

ST202,204

 8
90109-06134

ST20#

 8
