ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )RHD

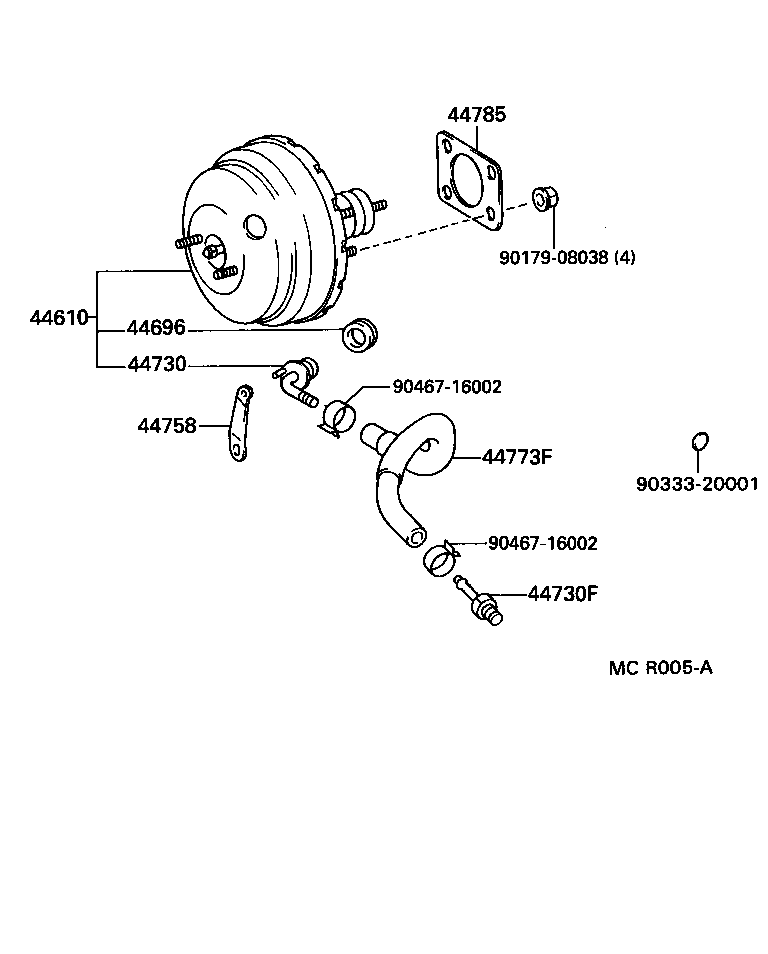

Click highlighted areas on diagram

diagram 44610 44696 44730 44730F 44758 44773F 44785 9017908038 9033320001 9046716002 9046716002
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2D640

ST202,204..RHD

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ST20#

W(ABS)

 1
90480-24439

ST202,204

W(ABS)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

ST202,204

W(ABS)

 1
44730-14050

ST20#

W(ABS)

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

ST202,204

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20280

ST20#..RHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-2B020

ST202,204..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

ST20#

 1
Common parts
90179-08038
90333-20001
90467-16002
