ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

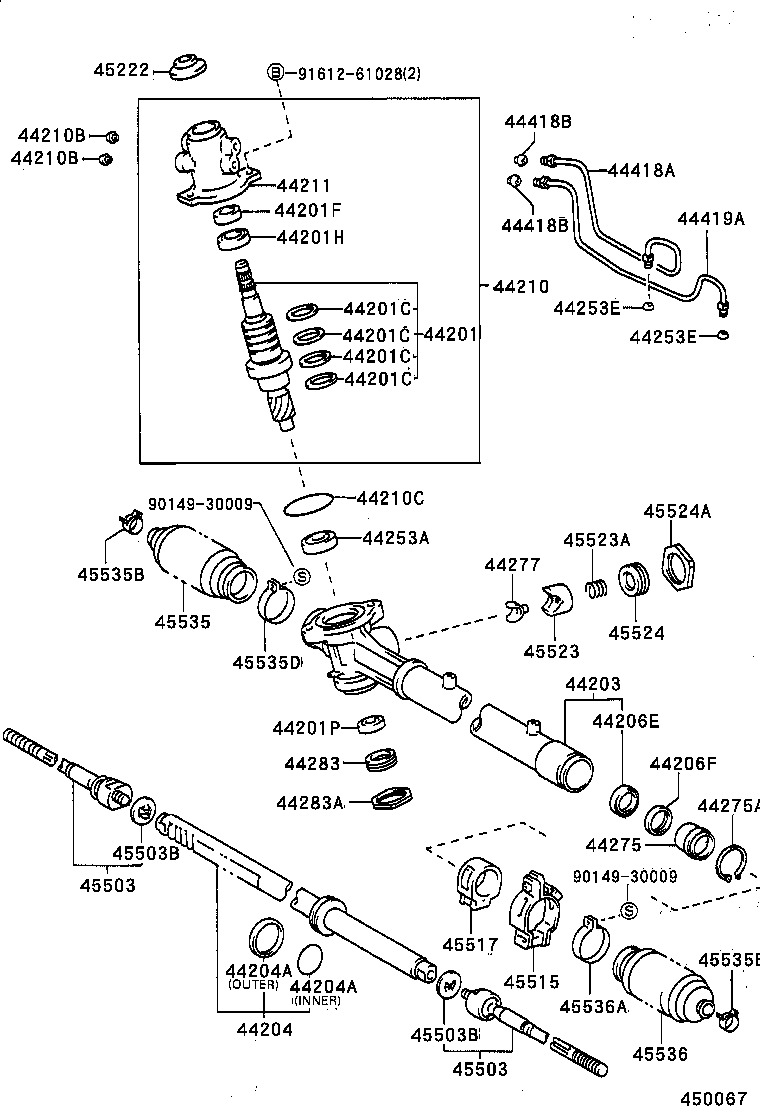

ILLUST NO. 2 OF 2(9311- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-20350 |
ST202,204..RHD |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
ST20# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
ST20# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
ST20# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
ST20# |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
ST20# |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19002 |
ST20# |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-13002 |
ST20# |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-20430 |
ST202,204..RHD |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-20350 |
ST202,204..RHD |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
ST20#..RHD INNER |
1 | ||
| 90562-37006 |
ST20#..RHD OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
ST20#..RHD INNER |
1 | ||
| 90562-37006 |
ST20#..RHD OUTER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25023 |
ST20# |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25023 |
ST20# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-20440 |
ST202,204..RHD |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
ST20# |
2 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
ST20# |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
ST20# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20100 |
ST20#..RHD |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-31001 |
ST20# |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-04003 |
ST20# |
2 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-04003 |
ST20# |
2 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-20140 |
ST202,204 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
ST20# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20040 |
ST20# |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 45524-50010 |
ST20# |
1 | ||
| 44283A - NUT(FOR RACK HOUSING CAP) | ||||
| 90179-36002 |
ST20# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-20300 |
ST20#..RHD |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 96390-71200 |
ST20# |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 96390-71200 |
ST20# |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-20290 |
ST202,204..RHD |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
ST20# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29515 |
ST202,204 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29515 |
ST202,204 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
ST20# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
ST20# |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-20220 |
ST202,204..RHD |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-20220 |
ST202,204 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-20040 |
ST20# |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26080 |
ST20# |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-50010 |
ST20# |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
ST20# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-20270 |
ST20# |
1 | ||
| 45535-20161 |
ST20# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
ST20# |
2 | ||
| 90467-19012 |
ST20# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
ST20# |
2 | ||
| 90467-19012 |
ST20# |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-51001 |
ST20# |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-20160 |
ST20# |
1 | ||
| 45535-20271 |
ST20# |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-51001 |
ST20# |
1 | ||
| Common parts | ||||
| 90149-30009 | ||||
| 91612-61028 | ||||

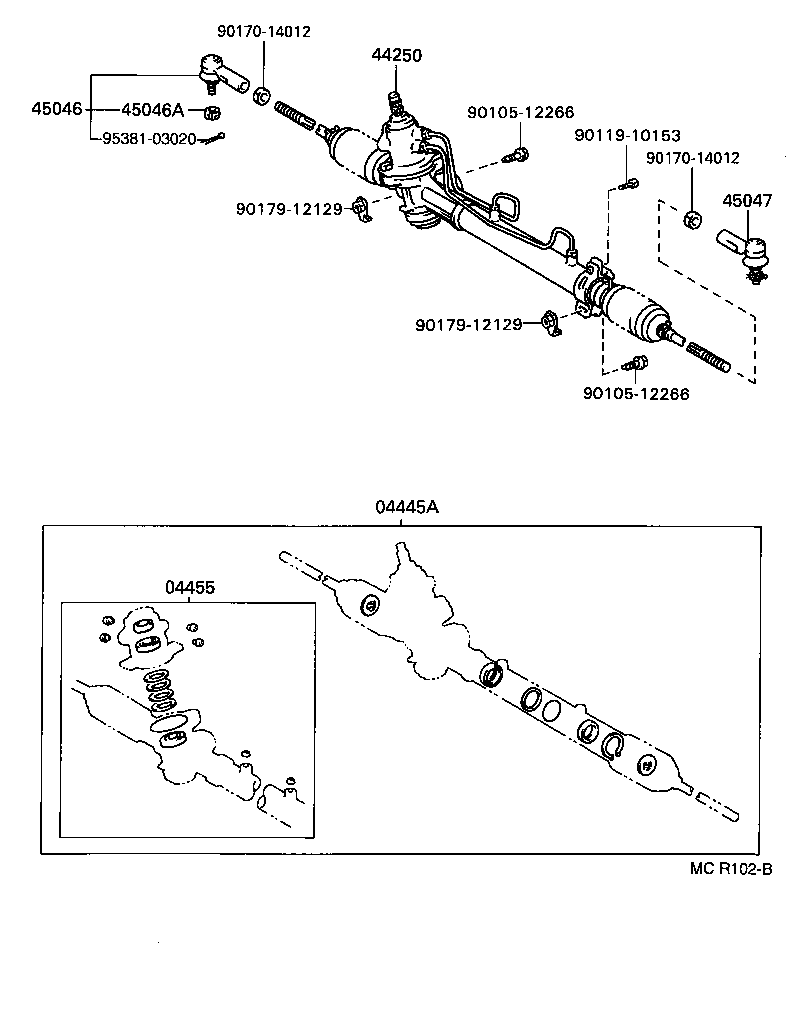

ILLUST NO. 1 OF 2(9311- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20180 |
ST20# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-20140 |
ST20# |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-20630 |
ST202,204..RHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29305 |
ST202,204 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ST20# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29305 |
ST202,204 |
1 | ||
| Common parts | ||||
| 90105-12266 | ||||
| 90119-10153 | ||||
| 90170-14012 | ||||
| 90179-12129 | ||||
| 95381-03020 | ||||
