ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )

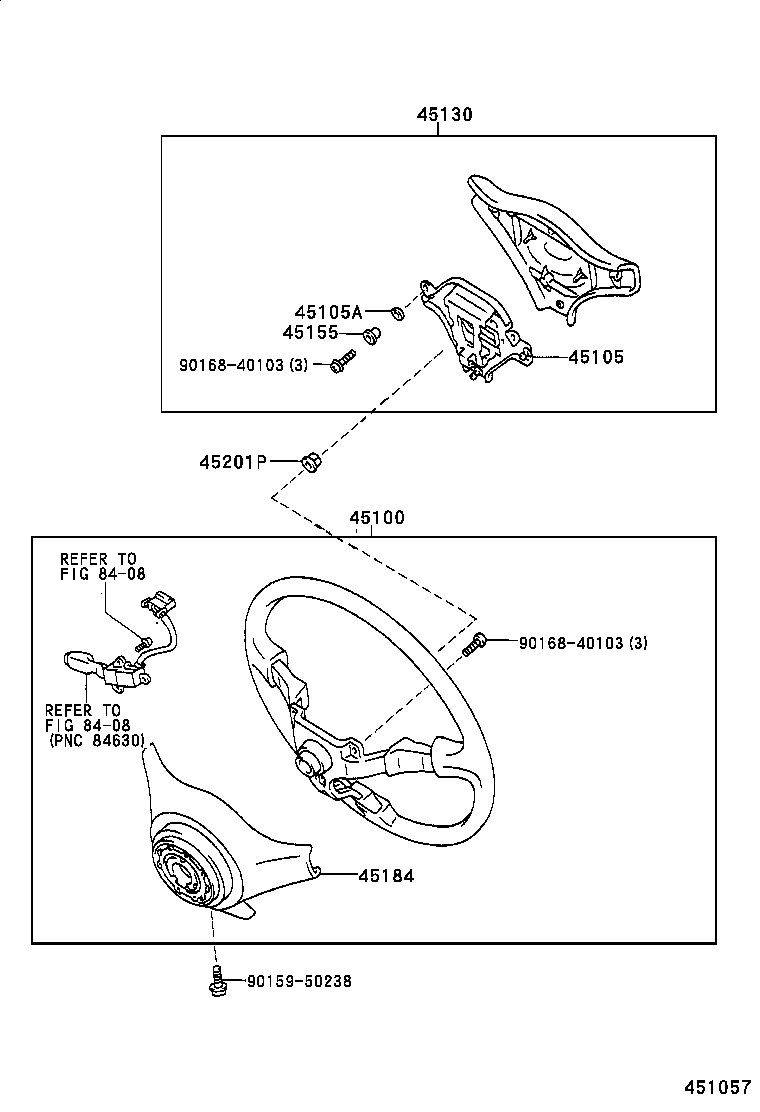

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45105 45105A 45130 45155 45184 45201P 9015950238 9016840103 9016840103
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B290C0

ST202,204

3-SPOKE,URETHANE,BLACK,TRIM2#

 1
45100-2B290C0

ST202,204..ARL,GEN

3-SPOKE,URETHANE,BLACK,TRIM2#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20500

ST20#

 1
45105-20500

ST202,204..ARL,GEN

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08014

ST20#

 3
90540-08014

ST202,204..ARL,GEN

 3
45130 - BUTTON ASSY, HORN
45130-2B270C0

ST20#

BLACK,TRIM2#

 1
45130-2B270C0

ST202,204..ARL,GEN

BLACK,TRIM2#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-22040

ST20#

 3
45155-22040

ST202,204..ARL,GEN

 3
45184 - COVER, STEERING WHEEL BOSS, LOWER
45180-20270C0

ST20#

BLACK,TRIM2#

 1
45180-20270C0

ST202,204

BLACK,TRIM2#

 1
45180-20270C0

ST202,204..ARL,GEN

BLACK,TRIM2#

 1
45180-20270C0

ST20#

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ST20#

 1
Common parts
90159-50238
90168-40103

(9311- )

Click highlighted areas on diagram

3-SPOKE;W(CRUISE CONTROL)

diagram 45100 45105 45105A 45130 45155 45184 45201P 8408 8408 9015950238 9016840103 9016840103
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B290C0

ST202,204

3-SPOKE,URETHANE,BLACK,TRIM2#

 1
45100-2B290C0

ST202,204..ARL,GEN

3-SPOKE,URETHANE,BLACK,TRIM2#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20500

ST20#

 1
45105-20500

ST202,204..ARL,GEN

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08014

ST20#

 3
90540-08014

ST202,204..ARL,GEN

 3
45130 - BUTTON ASSY, HORN
45130-2B270C0

ST20#

BLACK,TRIM2#

 1
45130-2B270C0

ST202,204..ARL,GEN

BLACK,TRIM2#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-22040

ST20#

 3
45155-22040

ST202,204..ARL,GEN

 3
45184 - COVER, STEERING WHEEL BOSS, LOWER
45180-20270C0

ST20#

BLACK,TRIM2#

 1
45180-20270C0

ST202,204

BLACK,TRIM2#

 1
45180-20270C0

ST202,204..ARL,GEN

BLACK,TRIM2#

 1
45180-20270C0

ST20#

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ST20#

 1
Common parts
90159-50238
90168-40103
Linked diagrams
8408

(9712- )ST202,205..ARL,GEN

Click highlighted areas on diagram

3-SPOKE;W(*80)

diagram 45100 45130 45201P 9014860007 9014860007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B290C0

ST202,204

3-SPOKE,URETHANE,BLACK,TRIM2#

 1
45100-2B290C0

ST202,204..ARL,GEN

3-SPOKE,URETHANE,BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-2B270C0

ST20#

BLACK,TRIM2#

 1
45130-2B270C0

ST202,204..ARL,GEN

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ST20#

 1
Common parts
90148-60007
