ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311-9908)ST202 ; (9311-9908)ST204..MTM

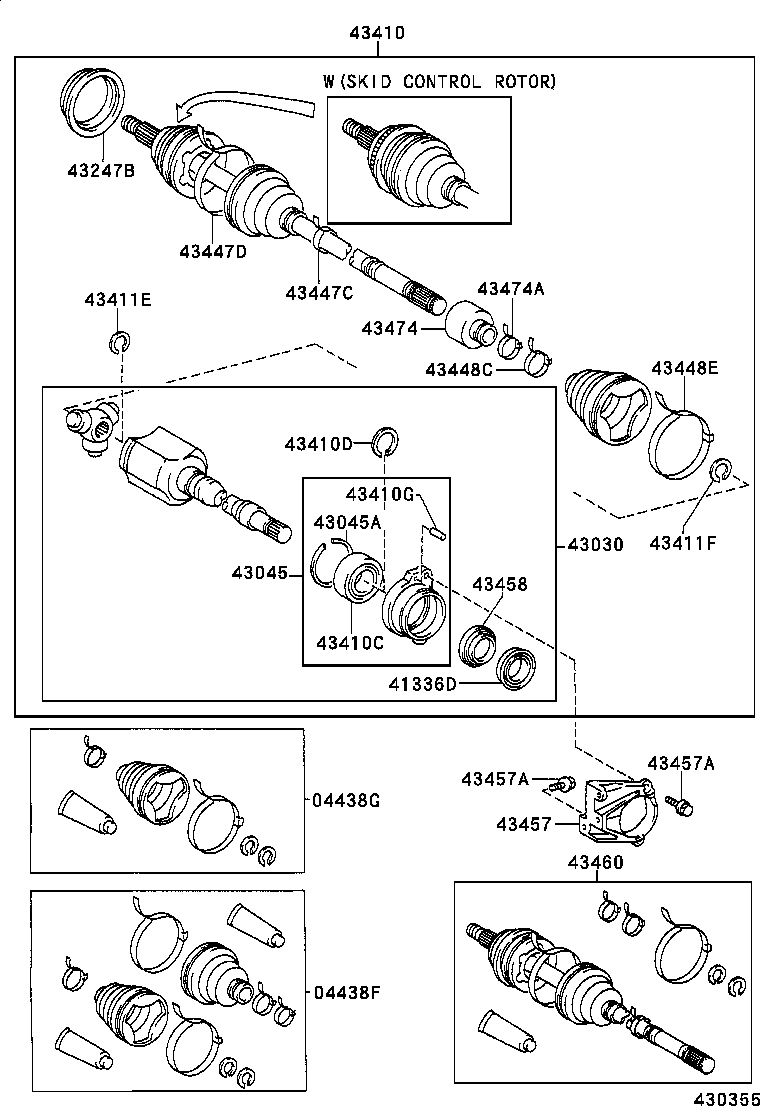

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43045 43045A 43247B 43410 43410C 43410D 43410G 43411E 43411F 43447C 43447D 43448C 43448E 43457 43457A 43457A 43458 43460 43474 43474A
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-20370

ST202;ST204..MTM

 1
04438-20371

ST202;ST204..MTM

 1
04438-20150

ST202;ST204..MTM

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-20140

ST202;ST204..MTM

 1
04438-20360

ST202;ST204..MTM

 1
04438-20361

ST202;ST204..MTM

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-20011

ST202,204

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-20040

ST202;ST204..MTM

 1
43045 - CASE SUB ASSY, DRIVE SHAFT BEARING
43045-20010

ST202,204

 1
43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
96153-00680

ST202,204

 1
43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247-12010

ST20#

W(ABS)

 1
43247-33010

ST202,204

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-20680

ST202;ST204..MTM

W(ABS)

 1
43410-20681

ST202;ST204..MTM

W(ABS)

 1
43410-20672

ST202;ST204..MTM

 1
43410-20671

ST202;ST204..MTM

 1
43410-20682

ST202;ST204..MTM

W(ABS)

 1
43410-20670

ST202;ST204..MTM

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36004

ST202,204

 1
90363-36001

ST202,204

 1
43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
90520-33008

ST202,204

 1
43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT)
90250-06003

ST202,204

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-26048

ST202;ST204..MTM

 1
43411F - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER RH)
90520-25037

ST202;ST204..MTM

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-16050

ST202;ST204..MTM

ID=33.74

 1
42345-16060

ST202;ST204..MTM

ID=96.5

 1
42345-20040

ST202;ST204..MTM

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-16060

ST202;ST204..MTM

 1
42345-20030

ST202;ST204..MTM

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-16050

ST202;ST204..MTM

ID=33.74

 1
42345-16050

ST202;ST204..MTM

 1
42345-16090

ST202;ST204..MTM

ID=99.9

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-30010

ST202;ST204..MTM

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-20040

ST202,204

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10285

ST202,204

*10-1.25PX22-19.5

 5
90105-10202

ST20#

*10-1.25PX22-19.5

 5
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10285

ST202,204

*10-1.25PX22-19.5

 5
90105-10202

ST20#

*10-1.25PX22-19.5

 5
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-20011

ST202,204

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-29365

ST202;ST204..MTM

 1
43470-29325

ST202;ST204..MTM

W(ABS)

 1
43470-29327

ST202;ST204..MTM

W(ABS)

 1
43470-29366

ST202;ST204..MTM

 1
43470-29328

ST202;ST204..MTM

W(ABS)

 1
43470-29368

ST202;ST204..MTM

 1
43470-29367

ST202;ST204..MTM

 1
43470-29326

ST202;ST204..MTM

W(ABS)

 1
43474 - DAMPER, DRIVE SHAFT
43474-20090

ST202;ST204..MTM

 1
43474-20090

ST202,205;ST204..MTM

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
90949-01696

ST202;ST204..MTM

 1
90949-01696

ST202,205;ST204..MTM

 1

(9311-9908)ST202 ; (9311-9908)ST204..MTM

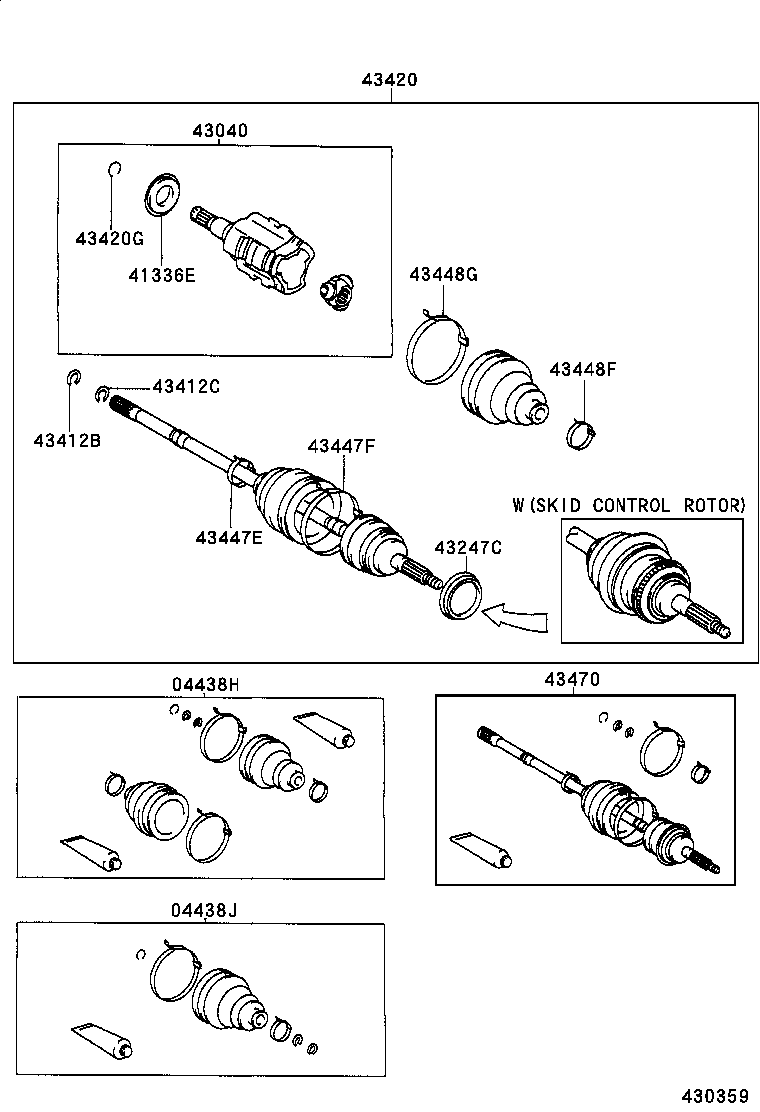

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43247C 43412B 43412C 43420 43420G 43447E 43447F 43448F 43448G 43470
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-20150

ST202;ST204..MTM

 1
04438-20370

ST202;ST204..MTM

 1
04438-20371

ST202;ST204..MTM

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-20140

ST202;ST204..MTM

 1
04438-20361

ST202;ST204..MTM

 1
04438-20360

ST202;ST204..MTM

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-32020

ST202,204

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-20020

ST202;ST204..MTM

 1
43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43247-33010

ST202,204

 1
43247-12010

ST20#

W(ABS)

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-26048

ST202;ST204..MTM

 1
43412C - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER LH)
90520-25037

ST202;ST204..MTM

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-20440

ST202;ST204..MTM

W(ABS)

 1
43420-20441

ST202;ST204..MTM

W(ABS)

 1
43420-20442

ST202;ST204..MTM

W(ABS)

 1
43420-20432

ST202;ST204..MTM

 1
43420-20430

ST202;ST204..MTM

 1
43420-20431

ST202;ST204..MTM

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005

ST202,204

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-16050

ST202;ST204..MTM

ID=33.74

 1
42345-16060

ST202;ST204..MTM

ID=96.5

 1
42345-20040

ST202;ST204..MTM

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-16060

ST202;ST204..MTM

 1
42345-20030

ST202;ST204..MTM

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-16090

ST202;ST204..MTM

ID=99.9

 1
42345-16050

ST202;ST204..MTM

ID=33.74

 1
42345-16050

ST202;ST204..MTM

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-30010

ST202;ST204..MTM

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-29327

ST202;ST204..MTM

W(ABS)

 1
43470-29365

ST202;ST204..MTM

 1
43470-29368

ST202;ST204..MTM

 1
43470-29367

ST202;ST204..MTM

 1
43470-29326

ST202;ST204..MTM

W(ABS)

 1
43470-29325

ST202;ST204..MTM

W(ABS)

 1
43470-29328

ST202;ST204..MTM

W(ABS)

 1
43470-29366

ST202;ST204..MTM

 1
