ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )ST202,204..MTM

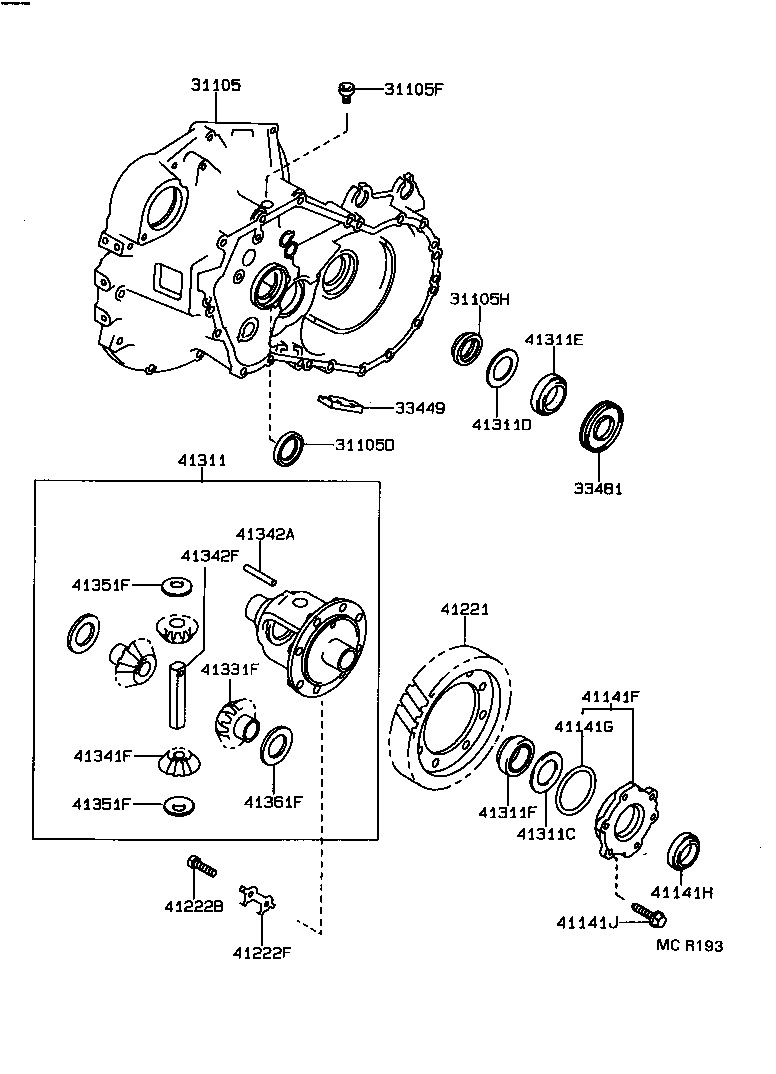

Click highlighted areas on diagram

S54

diagram 31105 31105D 31105F 31105H 33449 33481 41141F 41141G 41141H 41141J 41221 41222B 41222F 41311 41311C 41311D 41311E 41311F 41331F 41341F 41342A 41342F 41351F 41351F 41361F
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-32080

ST202,204..MTM

 1
31105-33030

ST202,204..MTM

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30006

ST20#..MTM

 1
31105F - PLUG(FOR TRANSAXLE CASE)
90341-10065

ST202,204..MTM

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35026

ST202,204..MTM

 1
90311-35033

ST202,204..MTM

 1
90311-35019

ST202,204..MTM

 1
33449 - MAGNET, TRANSMISSION
33449-32020

ST202,204..MTM

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-32070

ST202,204..MTM

 1
41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING
41101-32010

ST202,204..MTM

 1
41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90301-63004

ST202,204..MTM

 1
41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-35033

ST202,204..MTM

 1
90311-35026

ST202,204..MTM

 1
90311-35019

ST202,204

 1
41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90105-08061

ST202,204..MTM

*8-1.25PX26.5-23.5

 6
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-32090

ST202..GEN

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003

ST202,204

 8
90105-11040

ST202,204..MTM

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010

ST202,204

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-32061

ST202,204..MTM

 1
41301-32060

ST202,204..MTM

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-45001

ST202,204..MTM

T=1.90,MARK 01

 1
90564-45004

ST202,204..MTM

T=2.05,MARK 04

 1
90564-45009

ST202,204..MTM

T=2.30,MARK 09

 1
90564-45011

ST202,204

T=2.40,MARK 11

 1
90564-45008

ST202,204..MTM

T=2.25,MARK 08

 1
90564-45003

ST202,204..MTM

T=2.00,MARK 03

 1
90564-45006

ST202,204..MTM

T=2.15,MARK 06

 1
90564-45014

ST202,204..MTM

T=2.55,MARK 14

 1
90564-45010

ST202,204..MTM

T=2.35,MARK 10

 1
90564-45013

ST202,204..MTM

T=2.50,MARK 13

 1
90564-45002

ST202,204..MTM

T=1.95,MARK 02

 1
90564-45005

ST202,204..MTM

T=2.10,MARK 05

 1
90564-45007

ST202,204..MTM

T=2.20,MARK 07

 1
90564-45012

ST202,204..MTM

T=2.45,MARK 12

 1
90564-45018

ST202,204..MTM

T=2.75,MARK 18

 1
90564-45015

ST202,204..MTM

T=2.60,MARK 15

 1
90564-45016

ST202,204..MTM

T=2.65,MARK 16

 1
90564-45017

ST202,204..MTM

T=2.70,MARK 17

 1
90564-45019

ST202,204..MTM

T=2.80,MARK 19

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011

ST202,204..MTM

T=2.40,MARK 11

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016

ST202,204

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40064

ST202,204..MTM

 1
90366-40023

ST202,204..MTM

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

ST202,204

 2
41331-32010

ST202,204..MTM

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

ST202,204

 2
41341-30011

ST202,204..MTM

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ST202,204

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

ST202,204

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ST202,204

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ST202,204

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030

ST202,204

T=1.10,MARK 03

 2
41361-22040

ST202,204

T=1.20,MARK 04

 2
41361-22020

ST202,204

T=1.00,MARK 02

 2
41361-22160

ST202,204

T=1.15,MARK 16

 2
41361-22140

ST202,204

T=0.95,MARK 14

 2
41361-22030

ST202,204..MTM

T=1.10,MARK 03

 2
41361-22150

ST202,204

T=1.05,MARK 15

 2
41361-22020

ST202,204..MTM

T=1.00,MARK 02

 2
41361-22140

ST202,204..MTM

T=0.95,MARK 14

 2
41361-22040

ST202,204..MTM

T=1.20,MARK 04

 2
41361-22150

ST202,204..MTM

T=1.05,MARK 15

 2
41361-22160

ST202,204..MTM

T=1.15,MARK 16

 2
