ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )ST202,204

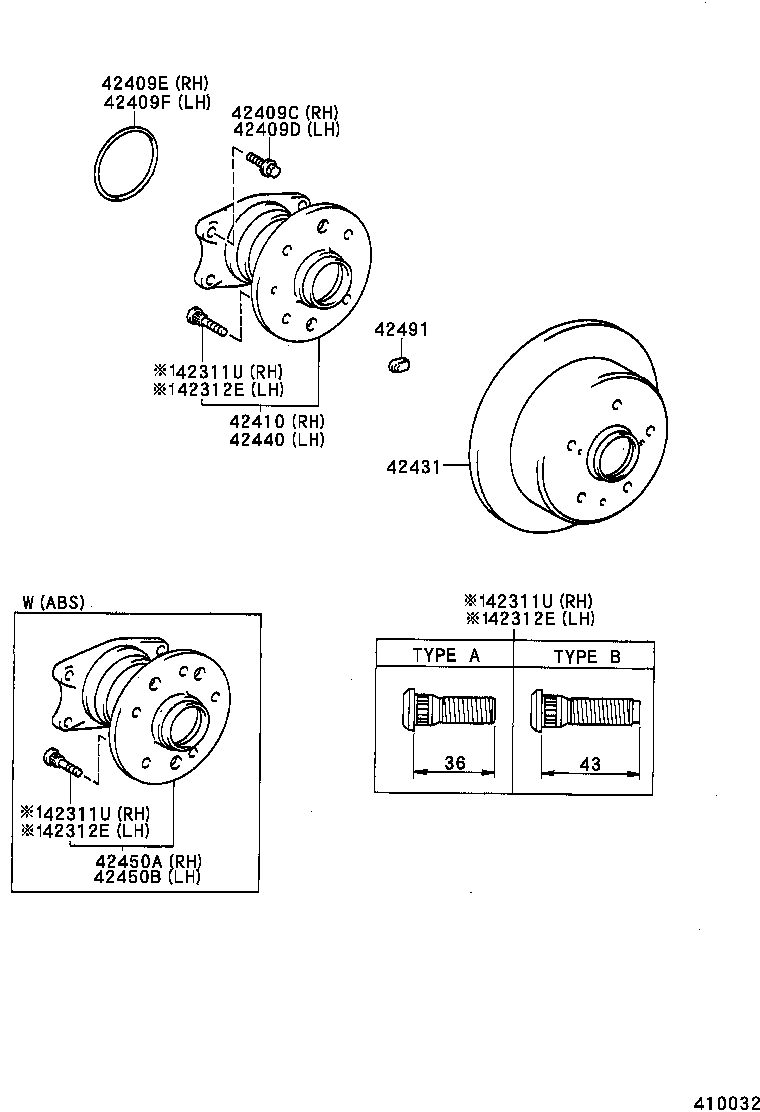

Click highlighted areas on diagram

diagram 42311U 42311U 42311U 42312E 42312E 42312E 42409C 42409D 42409E 42409F 42410 42431 42440 42450A 42450B 42491
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02070

ST202,204

TYPE B:REFER TO ILLUSTRATION

 5
90942-02047

ST202,204

TYPE A:REFER TO ILLUSTRATION

 5
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02070

ST202,204

TYPE B:REFER TO ILLUSTRATION

 5
90942-02047

ST202,204

TYPE A:REFER TO ILLUSTRATION

 5
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02070

ST202,204

TYPE B:REFER TO ILLUSTRATION

 5
90942-02047

ST202,204

TYPE A:REFER TO ILLUSTRATION

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

ST202,204

TYPE A:REFER TO ILLUSTRATION

 5
90942-02070

ST202,204

TYPE B:REFER TO ILLUSTRATION

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

ST202,204

TYPE A:REFER TO ILLUSTRATION

 5
90942-02070

ST202,204

TYPE B:REFER TO ILLUSTRATION

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

ST202,204

TYPE A:REFER TO ILLUSTRATION

 5
90942-02070

ST202,204

TYPE B:REFER TO ILLUSTRATION

 5
42409C - BOLT (FOR REAR AXLE BEARING RH)
90105-10124

ST202,204

 4
42409D - BOLT (FOR REAR AXLE BEARING LH)
90105-10124

ST202,204

 4
42409E - RING, O (FOR REAR AXLE BEARING RH)
90301-63003

ST202,204

 1
42409F - RING, O (FOR REAR AXLE BEARING LH)
90301-63003

ST202,204

 1
42410 - HUB & BEARING ASSY, REAR AXLE, RH
42410-20150

ST202,204

 1
42431 - DISC, REAR
42431-20320

ST202,204

 2
42431-20300

ST202

 2
42440 - HUB & BEARING ASSY, REAR AXLE, LH
42410-20150

ST202,204

 1
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-20050

ST202,204

 1
42450-20051

ST202,204

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-20051

ST202,204

 1
42450-20050

ST202,204

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

ST20#

 2
