ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

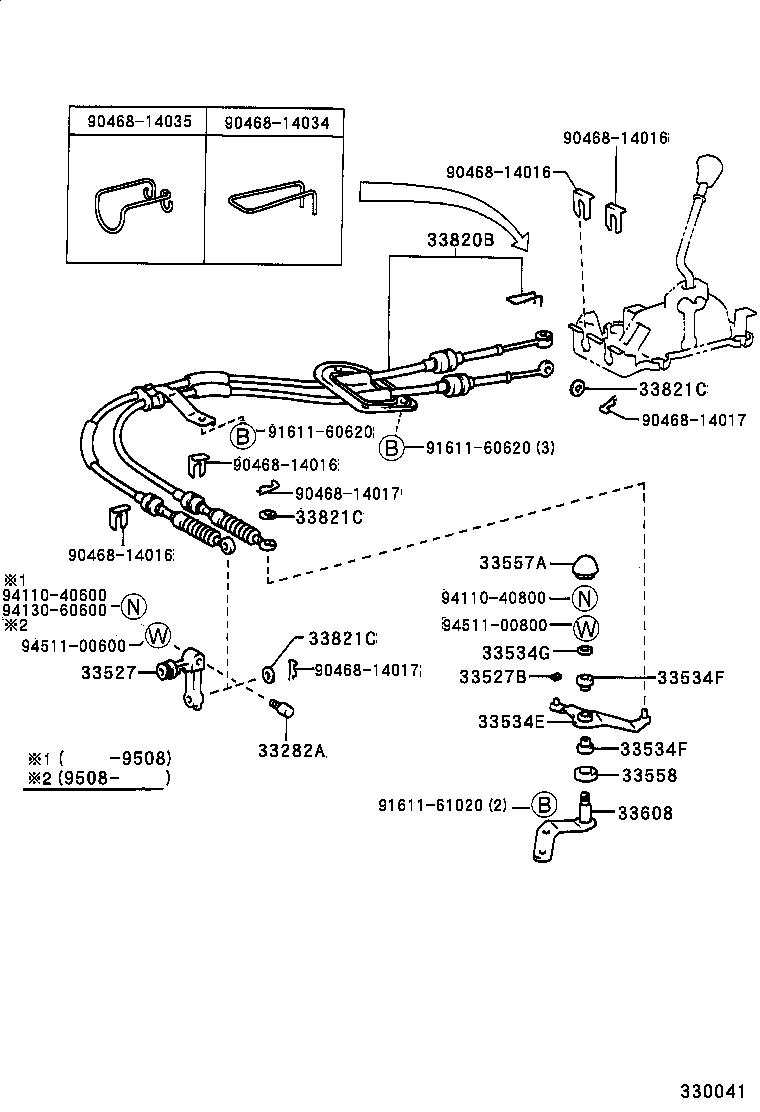

ILLUST NO. 2 OF 2(9311- )ST202,204..MTM
Click highlighted areas on diagram
S54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER) | ||||
| 33282-35010 |
ST202,204..MTM |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-32010 |
ST202,204..MTM |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
ST20#..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-33010 |
ST202,204..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
ST20#..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
ST20#..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
ST20#..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
ST20#..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-32010 |
ST202,204..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-33010 |
ST202,204..MTM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-2B321 |
ST202,204..MTM |
1 | ||
| 33820-2B320 |
ST202,204..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10113 |
ST20#..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
ST20#..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 90201-08077 |
ST20#..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10113 |
ST20#..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
ST20#..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 90201-08077 |
ST20#..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10113 |
ST20#..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
ST20#..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 90201-08077 |
ST20#..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14034 | ||||
| 90468-14035 | ||||
| 91611-60620 | ||||
| 91611-61020 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94130-60600 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
ILLUST NO. 1 OF 2(9311- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-17061C0 |
ST202,204..MTM BLACK,TRIM2# |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-20680 |
ST202,204..RHD..MTM |
1 | ||
| Common parts | ||||
| 91635-60835 | ||||
