ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

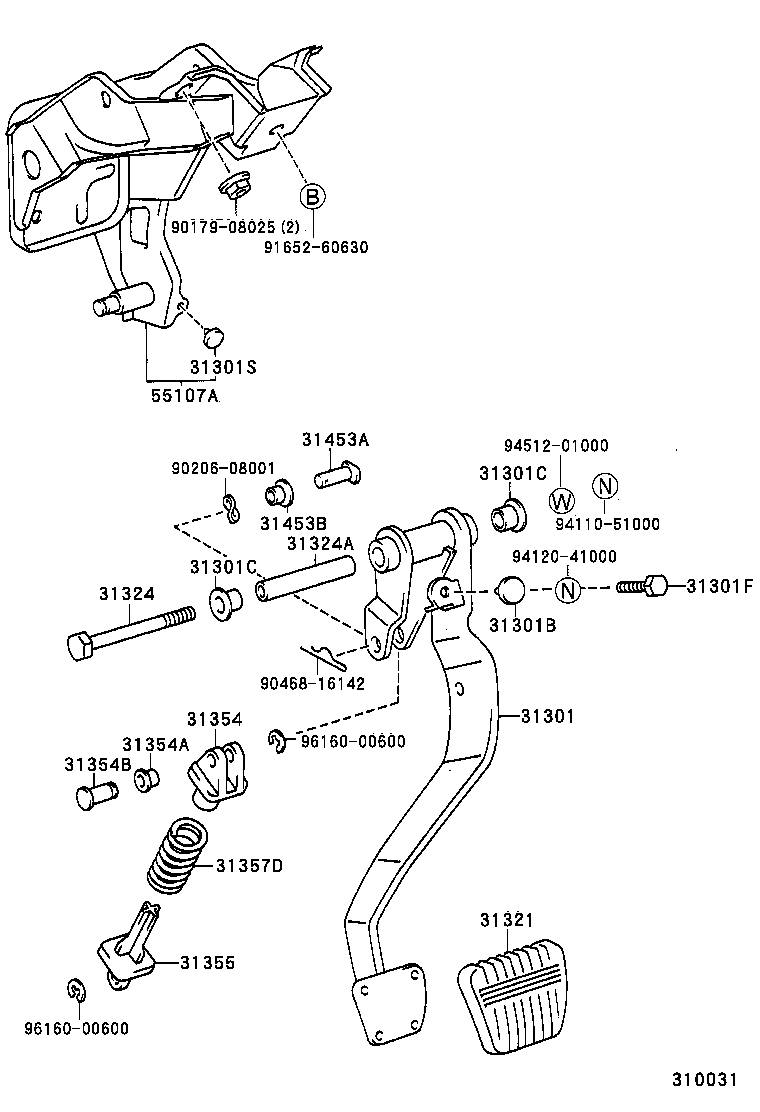

ILLUST NO. 1 OF 2(9311- )ST202,204..RHD..MTM

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31301S 31321 31324 31324A 31354 31354A 31354B 31355 31357D 31453A 31453B 55107A 9017908025 9020608001 9046816142 9165260630 9411051000 9412041000 9451201000 9616000600 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-20530

ST202,204..RHD..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ST20#..RHD..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ST20#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ST20#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

ST20#..MTM

 1
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06036

ST20#..RHD..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

ST20#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51085

ST20#..RHD..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10082

ST20#..RHD..MTM

 1
31354 - SEAT, CLUTCH PEDAL SPRING, UPPER
31354-20030

ST20#..RHD..MTM

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019

ST20#..RHD..MTM

 1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-10127

ST20#..RHD..MTM

 1
31355 - SEAT, CLUTCH PEDAL SPRING, LOWER
31355-20030

ST20#..RHD..MTM

 1
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90501-40035

ST202,204..RHD..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143

ST20#..MTM

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

ST20#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-20400

ST20#..RHD..MTM

 1
Common parts
90179-08025
90206-08001
90468-16142
91652-60630
94110-51000
94120-41000
94512-01000
96160-00600

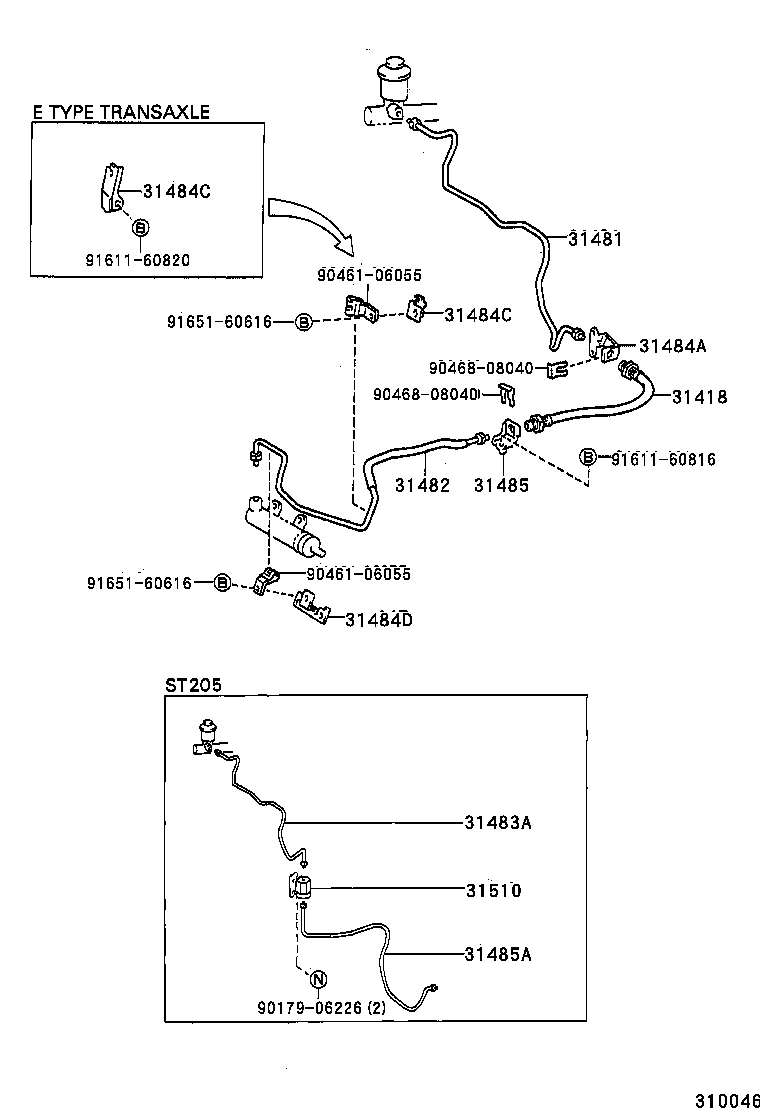

ILLUST NO. 2 OF 2(9311- )RHD..MTM

Click highlighted areas on diagram

diagram 31418 31481 31482 31483A 31484A 31484C 31484C 31484D 31485 31485A 31510 9017906226 9046106055 9046106055 9046808040 9046808040 9161160816 9161160820 9165160616 9165160616
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01108

ST20#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20740

ST202,204..RHD..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-20580

ST202,204..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20560

ST20#..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

ST202,204..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

ST202,204..MTM

 1
31484D - BRACKET, CLUTCH TUBE, NO.2
31484-20460

ST20#..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20580

ST20#..MTM

 1
Common parts
90179-06226
90461-06055
90468-08040
91611-60816
91611-60820
91651-60616
