ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )ST202,204..MTM

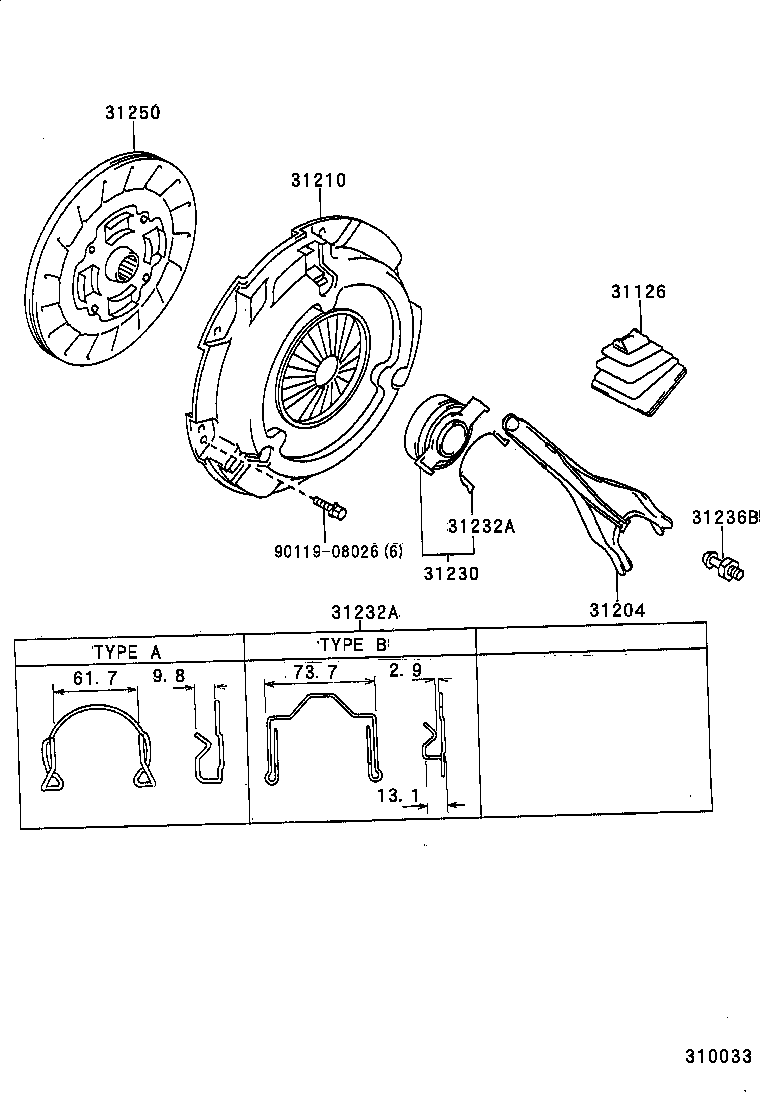

Click highlighted areas on diagram

S54

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-32010

ST202,204..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-20100

ST202,204..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-32130

ST202,204..MTM

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-32060

ST202,204..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-20020

ST202,204..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232-32050

ST202,204..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232A - CLIP, RELEASE BEARING HUB
31232-20020

ST202,204..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232-32050

ST202,204..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-32010

ST202,204..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-17040

ST202,204..MTM

 1
31250-20250

ST202,204..MTM

 1
31250-20250

ST202..MTM

 1
31250-20251

ST202..MTM

 1
Common parts
90119-08026
