ST202R-BLMSK (1993)
Toyota Celica

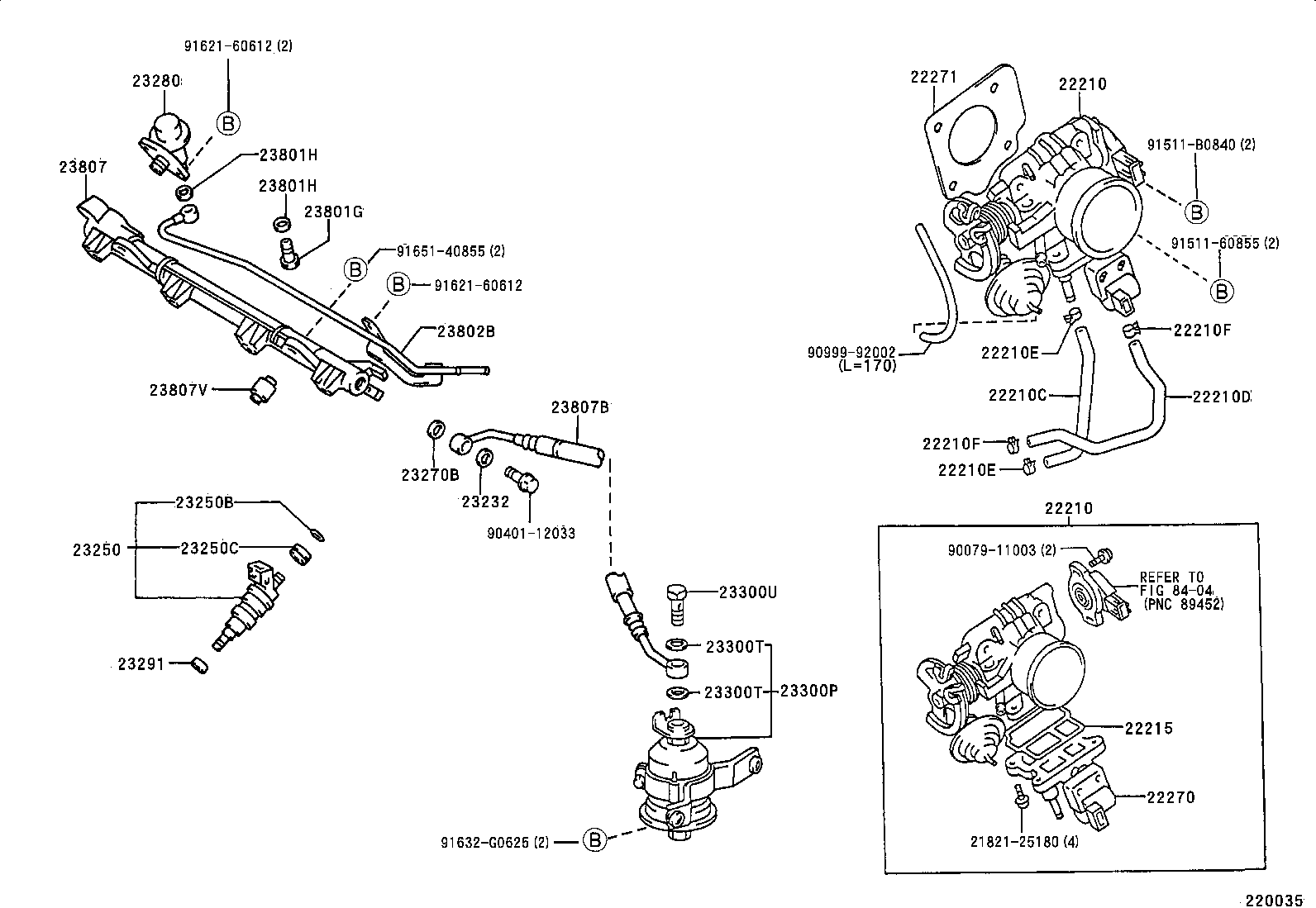

ILLUST NO. 1 OF 2(9508- )3SFE,5SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A450 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A310 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A120 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A121 |
3SFE..ST202..MTM |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A450 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A310 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A120 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A121 |
3SFE..ST202..MTM |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16282-74050 |
3SFE,5SFE..ST202,204 |
1 | ||
| 16282-74100 |
3SFE,5SFE..ST202,204 |
1 | ||
| 16282-74080 |
3SFE,5SFE..ST202,204 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16283-74010 |
3SFE,5SFE..ST202,204 |
1 | ||
| 16283-74050 |
3SFE,5SFE..ST202,204 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
3SFE,5SFE..ST202,204 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
3SFE,5SFE..ST202,204 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
3SFE,5SFE..ST202,204 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
3SFE,5SFE..ST202,204 |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
3SFE,5SFE..ST202,204 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74240 |
3SFE..ST202..MTM |
1 | ||
| 22270-74140 |
3SFE..ST202..MTM |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74022 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23279-74010 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74100 |
3SFE,5SFE..ST202,204 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
3SFE,5SFE..ST202,204 |
4 | ||
| 90301-07024 |
3SFE,5SFE..ST202,204 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3SFE,5SFE..ST202,204 |
4 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-41081 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23279-74010 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74100 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
3SFE,5SFE..ST202,204 |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79435 |
3SFE..ST202 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3S#,5SFE..ST20# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3S#,5SFE..ST20# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
3S#,5SFE..ST20# |
1 | ||
| 96341-11200 |
3S#,5SFE..ST20# |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08014 |
3SFE,5SFE..ST202,204 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08014 |
3SFE,5SFE..ST202,204 |
2 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-74023 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23802-74070 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-74110 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23807-74060 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-74450 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23271-74550 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11020 |
3SFE,5SFE..ST202,204 |
2 | ||
| 90561-08053 |
3SFE,5SFE..ST202,204 |
2 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11003 | ||||
| 90401-12033 | ||||
| 90999-92002 | ||||
| 91511-60855 | ||||
| 91511-B0840 | ||||
| 91621-60612 | ||||
| 91632-G0625 | ||||
| 91651-40855 | ||||
| Linked diagrams | ||||
| 8404 | ||||

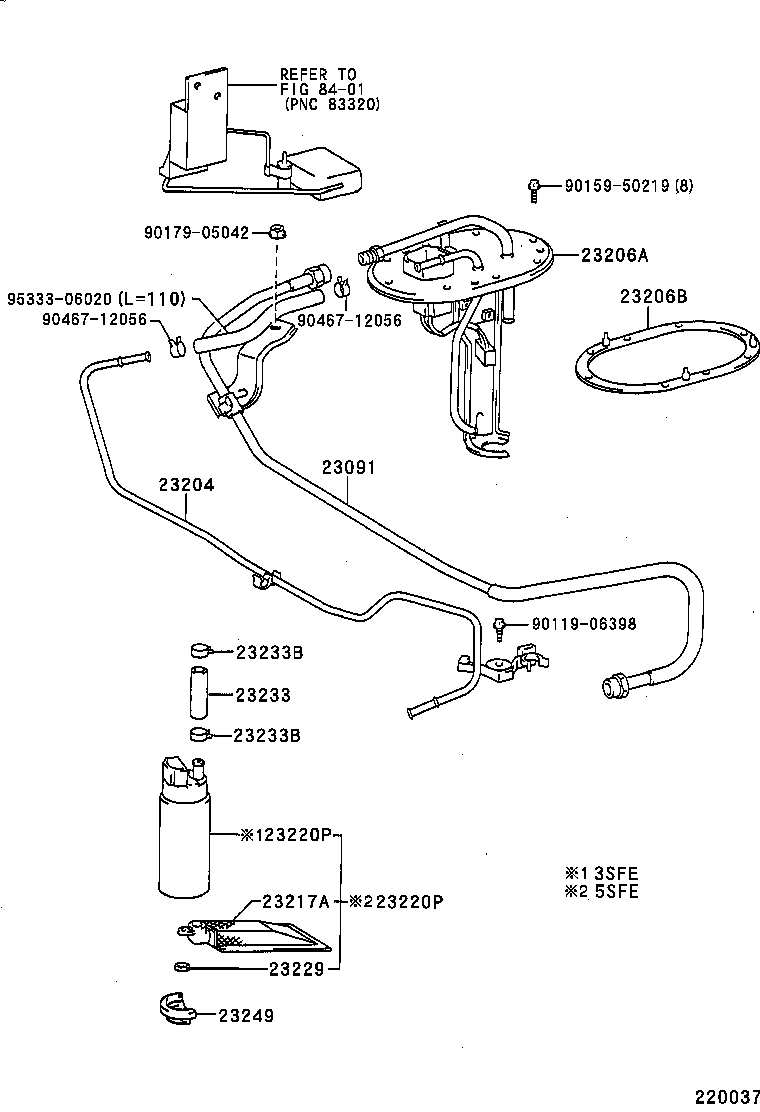

ILLUST NO. 2 OF 2(9311- )3SFE,5SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74230 |
3SFE,5SFE..ST202,204 |
1 | ||
| 77209-20130 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-74710 |
3SFE,5SFE..ST202,204 |
1 | ||
| 77204-20150 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74720 |
3SFE,5SFE..ST202,204 |
1 | ||
| 77203-20190 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-20040 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74021 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-16490 |
3SFE..ST202 |
1 | ||
| 23221-15040 |
3SFE..ST202 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-16490 |
3SFE..ST202 |
1 | ||
| 23221-15040 |
3SFE..ST202 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3S#,5SFE..ST20# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23239-11010 |
3S#,5SFE..ST20# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
3SFE,5SFE..ST202,204 |
2 | ||
| 90467-12067 |
3S#,5SFE..ST20# |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
3SFE,5SFE..ST202,204 |
2 | ||
| 90467-12067 |
3S#,5SFE..ST20# |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
3S#,5SFE..ST20# |
1 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90467-12056 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

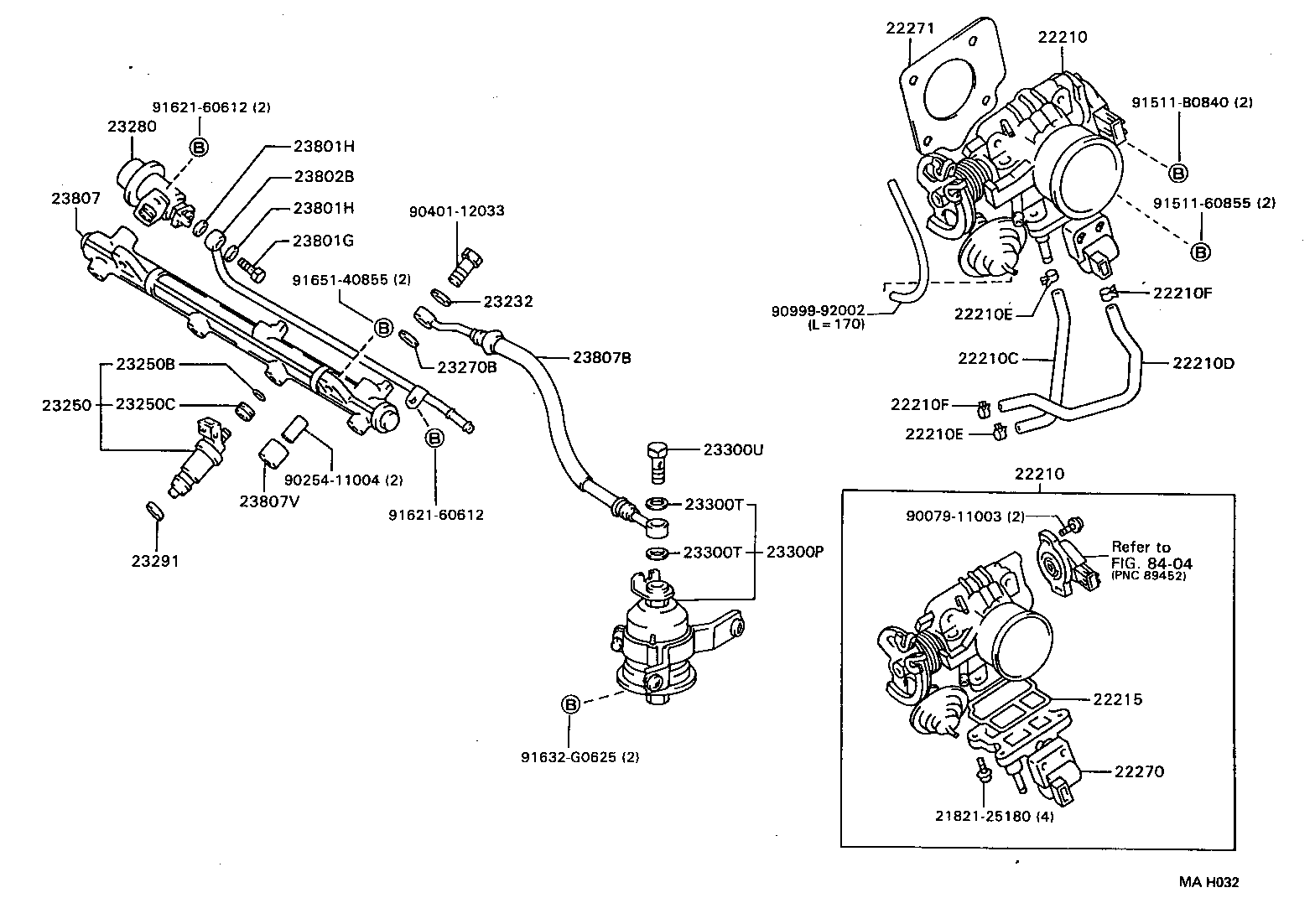

ILLUST NO. 1 OF 2(9311-9508)3SFE,5SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A450 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A310 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A120 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A121 |
3SFE..ST202..MTM |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A450 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A310 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A120 |
3SFE..ST202..MTM |
1 | ||
| 22210-7A121 |
3SFE..ST202..MTM |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16282-74050 |
3SFE,5SFE..ST202,204 |
1 | ||
| 16282-74100 |
3SFE,5SFE..ST202,204 |
1 | ||
| 16282-74080 |
3SFE,5SFE..ST202,204 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16283-74010 |
3SFE,5SFE..ST202,204 |
1 | ||
| 16283-74050 |
3SFE,5SFE..ST202,204 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
3SFE,5SFE..ST202,204 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
3SFE,5SFE..ST202,204 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
3SFE,5SFE..ST202,204 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
3SFE,5SFE..ST202,204 |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
3SFE,5SFE..ST202,204 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74240 |
3SFE..ST202..MTM |
1 | ||
| 22270-74140 |
3SFE..ST202..MTM |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74022 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23279-74010 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74100 |
3SFE,5SFE..ST202,204 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
3SFE,5SFE..ST202,204 |
4 | ||
| 90301-07024 |
3SFE,5SFE..ST202,204 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3SFE,5SFE..ST202,204 |
4 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-41081 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23279-74010 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74100 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
3SFE,5SFE..ST202,204 |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79435 |
3SFE..ST202 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3S#,5SFE..ST20# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3S#,5SFE..ST20# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
3S#,5SFE..ST20# |
1 | ||
| 96341-11200 |
3S#,5SFE..ST20# |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08014 |
3SFE,5SFE..ST202,204 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08014 |
3SFE,5SFE..ST202,204 |
2 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-74023 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23802-74070 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-74110 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23807-74060 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-74450 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23271-74550 |
3SFE,5SFE..ST202,204 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11020 |
3SFE,5SFE..ST202,204 |
2 | ||
| 90561-08053 |
3SFE,5SFE..ST202,204 |
2 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11003 | ||||
| 90254-11004 | ||||
| 90401-12033 | ||||
| 90999-92002 | ||||
| 91511-60855 | ||||
| 91511-B0840 | ||||
| 91621-60612 | ||||
| 91632-G0625 | ||||
| 91651-40855 | ||||
| Linked diagrams | ||||
| 8404 | ||||
