ST202R-BLMSK (1993)
Toyota Celica
(9311- )3SFE..MTM
12V 70A

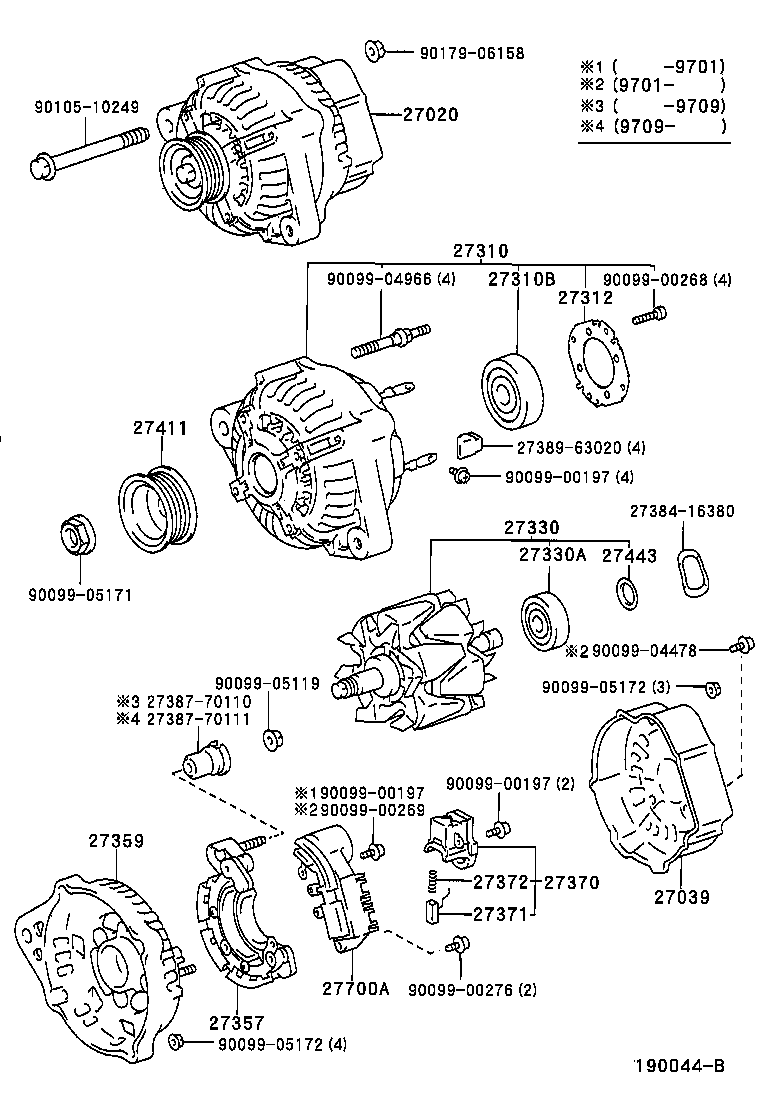

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-74380 |
3SFE..ST202..MTM 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-74380 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 27039-74381 |
3SFE..ST202..MTM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-70100 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 27310-70100 |
3SFE..ST202..MTM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 90099-10178 |
3SFE..ST202..MTM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 27312-70200 |
3SFE..ST202..MTM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
3S#,5SFE..ST20# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-70081 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 27357-74380 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 27357-74380 |
3SFE..ST202..MTM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-74130 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 27359-74131 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 27359-74132 |
3SFE..ST202..MTM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 27370-35060 |
3SFE..ST202..MTM |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3SFE,5SFE..ST202,204..MTM |
2 | ||
| 27371-70300 |
3SFE..ST202..MTM |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3SFE,5SFE..ST202,204..MTM |
2 | ||
| 27372-63020 |
3SFE..ST202..MTM |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16211 |
3SFE,5SFE..ST202,204..MTM |
1 | ||
| 27411-16211 |
3SFE..ST202..MTM |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3S#,5SFE..ST20# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
3SFE..ST202 |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 27387-70110 | ||||
| 27387-70111 | ||||
| 27389-63020 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10249 | ||||
| 90179-06158 | ||||
