ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )

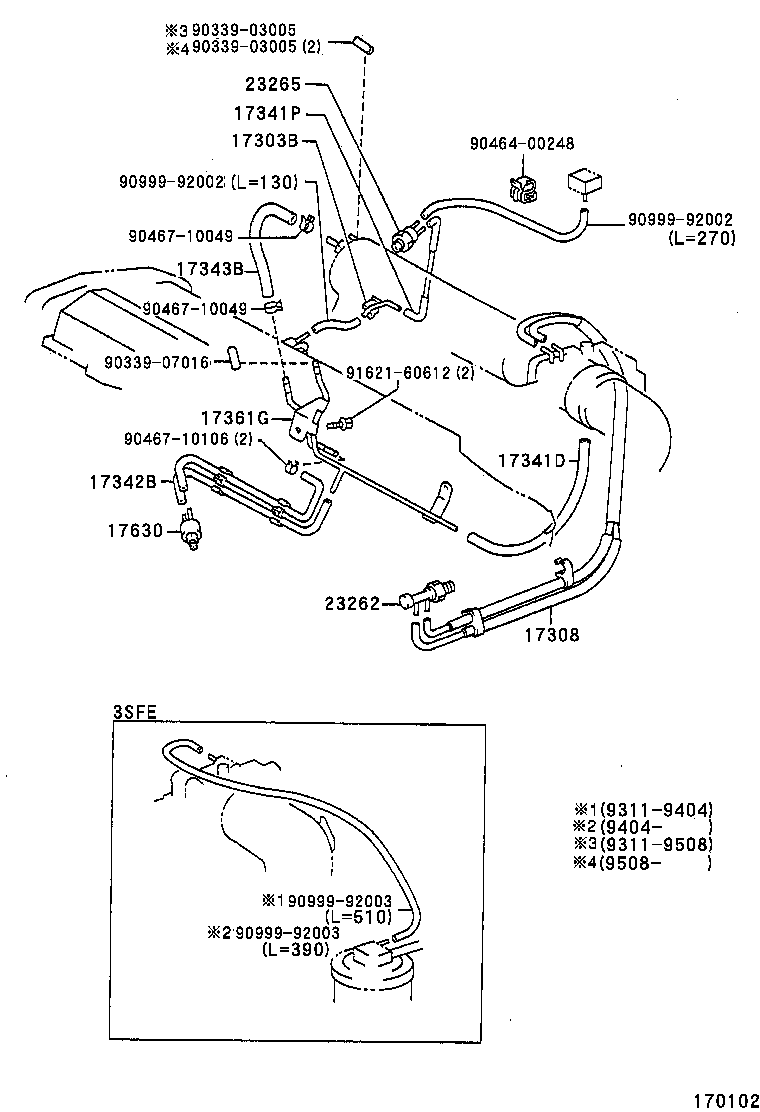

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9311-9712)3SFE,5SFE ; (9712- )3SFE

Click highlighted areas on diagram

diagram 17303B 17308 17341D 17341P 17342B 17343B 17361G 17630 23262 23265 9033903005 9033903005 9033907016 9046400248 9046710049 9046710049 9046710106 9099992002 9099992002 9099992003 9099992003 9162160612
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-74040

3SFE,5SFE..ST202,204

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74340

3SFE,5SFE..ST202,204

 1
17341P - HOSE, AIR
17341-74350

3SFE,5SFE..ST202,204

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74100

3SFE,5SFE..ST202,204

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74040

3SFE,5SFE..ST202,204

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74100

3SFE,5SFE..ST202,204

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3S#,5SFE..ST20#

 1
23265 - FILTER, GAS, NO.1
90917-11039

3SFE,5SFE..ST202,204

 1
90917-11023

3SFE,5SFE..ST202,204

 1
90917-11042

3SFE,5SFE..ST202,204

 1
Common parts
90339-03005
90339-07016
90464-00248
90467-10049
90467-10106
90999-92002
90999-92003
91621-60612
