ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )3SFE,5SFE

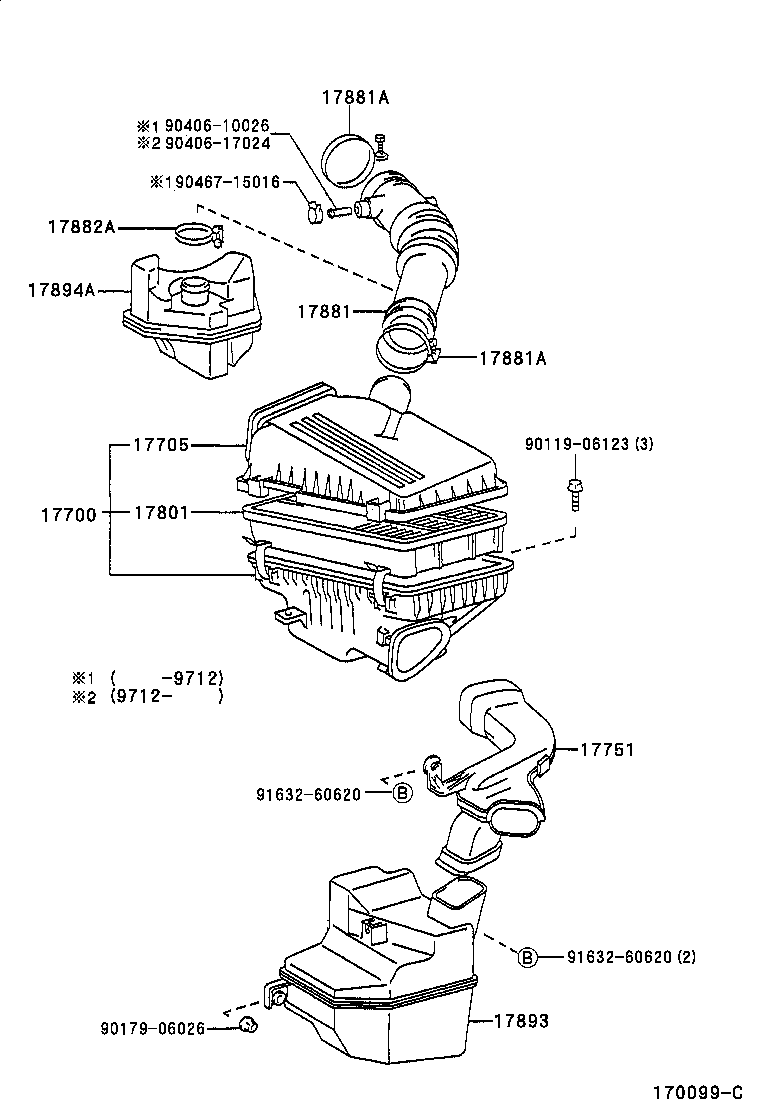

Click highlighted areas on diagram

diagram 17700 17705 17751 17801 17881 17881A 17881A 17882A 17893 17894A 9011906123 9017906026 9040610026 9040617024 9046715016 9163260620 9163260620
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74480

3SFE,5SFE..ST202,204

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74320

3SFE,5SFE..ST202,204

 1
17751 - INLET, AIR CLEANER, NO.1
17751-74030

3S#,5SFE..ST20#

 1
17751-74040

3S#,5SFE..ST20#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74060

3S#,5SFE..ST20#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74690

3SFE,5SFE..ST202,204

 1
17881-74691

3SFE,5SFE..ST202,204

 1
17881-74520

3SFE,5SFE..ST202,204

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

3SFE,5SFE..ST202,204

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

3SFE,5SFE..ST202,204

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10400

3SFE,5SFE..ST202,204

 1
17893 - RESONATOR, INTAKE AIR
17893-74290

3SFE,5SFE..ST202,204

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-74040

3SFE,5SFE..ST202,204

 1
Common parts
90119-06123
90179-06026
90406-10026
90406-17024
90467-15016
91632-60620
