ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )3SFE

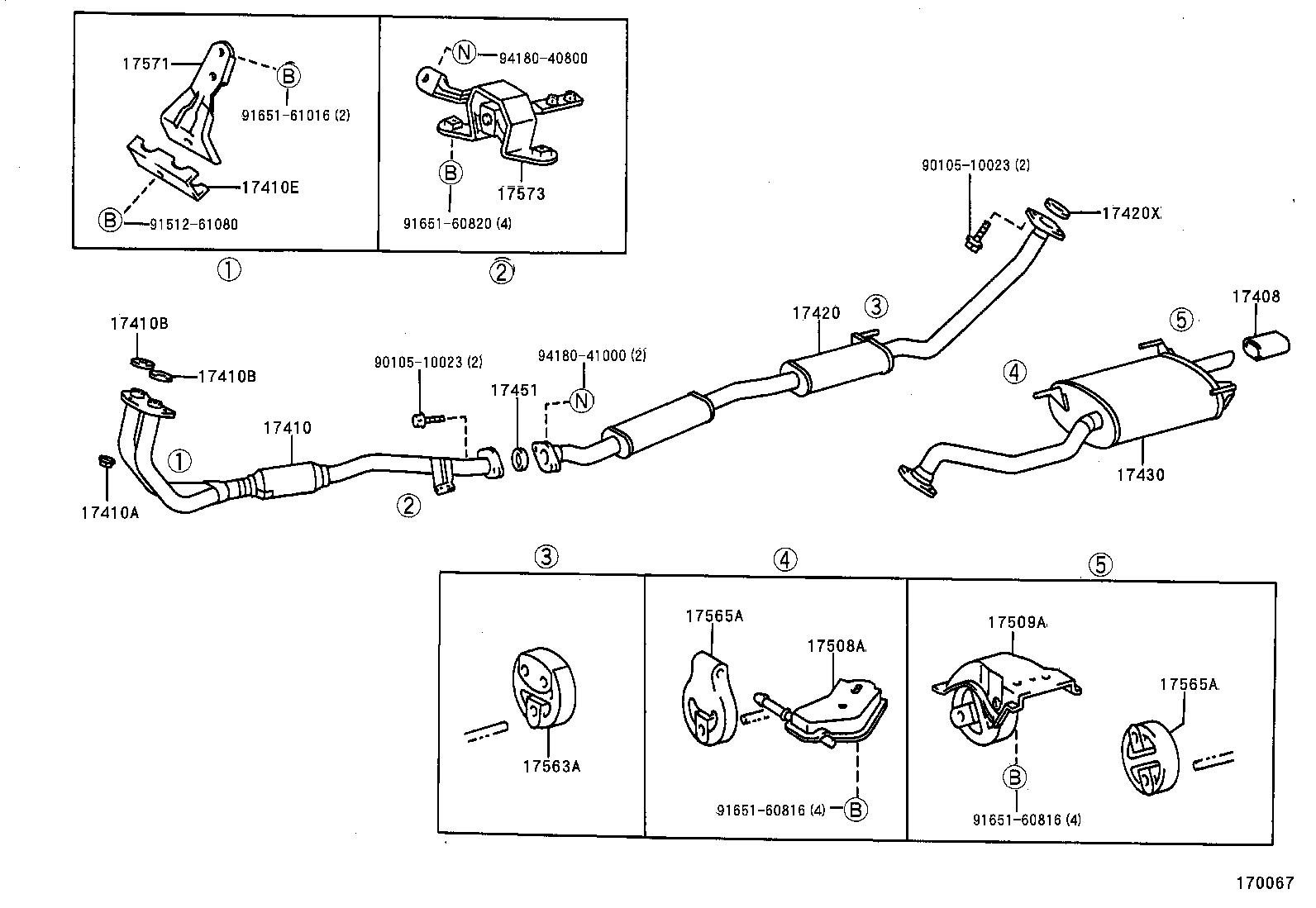

Click highlighted areas on diagram

diagram 17408 17410 17410A 17410B 17410B 17410E 17420 17420X 17430 17451 17508A 17509A 17563A 17565A 17565A 17571 17573 9010510023 9010510023 9151261080 9165160816 9165160816 9165160820 9165161016 9418040800 9418041000
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-74020

3SFE..ST202

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-7A232

3SFE..ST202

 1
17410-7A230

3SFE..ST202

 1
17410-7A231

3SFE..ST202

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3S#,5SFE..ST20#

 3
17410B - GASKET, EXHAUST PIPE
90917-06061

3SFE..ST202

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

3SFE..ST202

 2
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

3SFE..ST202

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-74740

3SFE..ST202

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045

3SFE..ST202

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-7A320

3SFE..ST202

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

3SFE,5SFE..ST202,204

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74080

3SFE,5SFE..ST202,204

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74140

3SFE,5SFE..ST202,204

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-64180

3SFE,5SFE..ST202,204

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74290

3SFE,5SFE..ST202,204

REAR

 1
17565-16230

3SFE,5SFE..ST202,204

FRONT

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74290

3SFE,5SFE..ST202,204

REAR

 1
17565-16230

3SFE,5SFE..ST202,204

FRONT

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-74460

3SFE..ST202

 1
17571-74280

3SFE..ST202

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-74150

3SFE,5SFE..ST202,204

 1
Common parts
90105-10023
91512-61080
91651-60816
91651-60820
91651-61016
94180-40800
94180-41000
