ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )3SFE

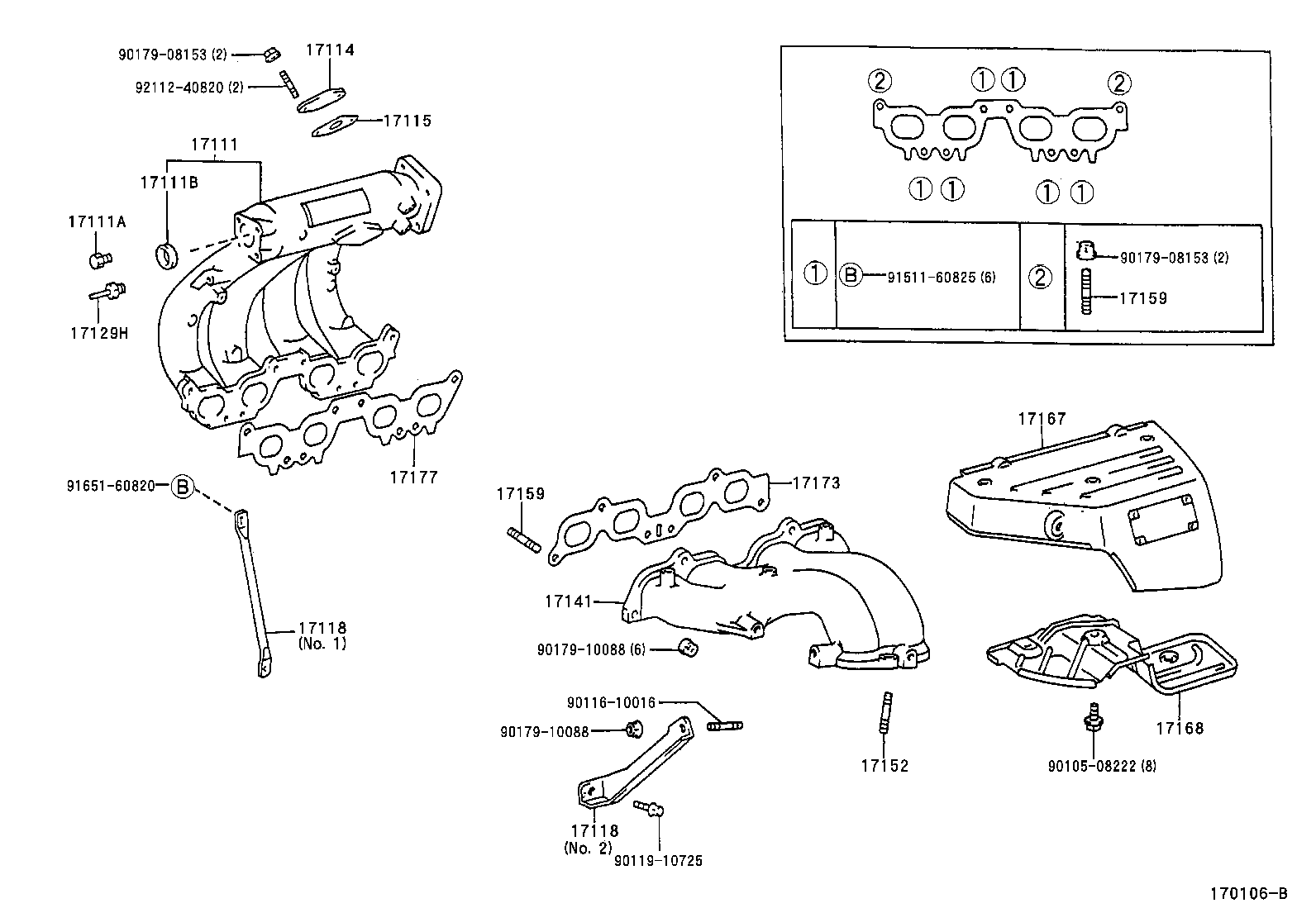

Click highlighted areas on diagram

diagram 17111 17111A 17111B 17114 17115 17118 17118 17129H 17141 17152 17159 17159 17167 17168 17173 17177 9010508222 9011610016 9011910725 9017908153 9017908153 9017910088 9017910088 9151160825 9165160820 9211240820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74180

3SFE,5SFE..ST202,204

 1
17101-74280

3SFE,5SFE..ST202,204

 1
17111A - PLUG, NO.1
90345-51006

3SFE,5SFE..ST202,204

 1
17111B - PLUG, NO.2
96411-44000

3SFE,5SFE..ST202,204

 1
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
25617-74020

3SFE..ST202

 1
25617-74020

3SFE,5SFE..ST202,204

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
25627-74011

3SFE..ST202

 1
25627-74011

3SFE,5SFE..ST202,204

 1
17118 - STAY, MANIFOLD
17118-74180

3SFE,5SFE..ST202,204

NO.1

 1
17118-74040

3SFE..ST202

NO.2

 1
17118 - STAY, MANIFOLD
17118-74180

3SFE,5SFE..ST202,204

NO.1

 1
17118-74040

3SFE..ST202

NO.2

 1
17129H - UNION, NO.4
90404-51026

3SFE,5SFE..ST202,204

 1
17141 - MANIFOLD, EXHAUST
17141-74170

3SFE..ST202

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

3SFE,5SFE..ST202,204

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60822

3SFE,5SFE..ST202,204

INTAKE MANIFOLD

 2
90116-10063

3SFE,5SFE..ST202,204

EXHAUST MANIFOLD

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60822

3SFE,5SFE..ST202,204

INTAKE MANIFOLD

 2
90116-10063

3SFE,5SFE..ST202,204

EXHAUST MANIFOLD

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74210

3SFE..ST202

 1
17167-74211

3SFE..ST202

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74110

3SFE..ST202

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74040

3SFE,5SFE..ST202,204

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74070

3SFE,5SFE..ST202,204

 1
Common parts
90105-08222
90116-10016
90119-10725
90179-08153
90179-10088
91511-60825
91651-60820
92112-40820
