ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

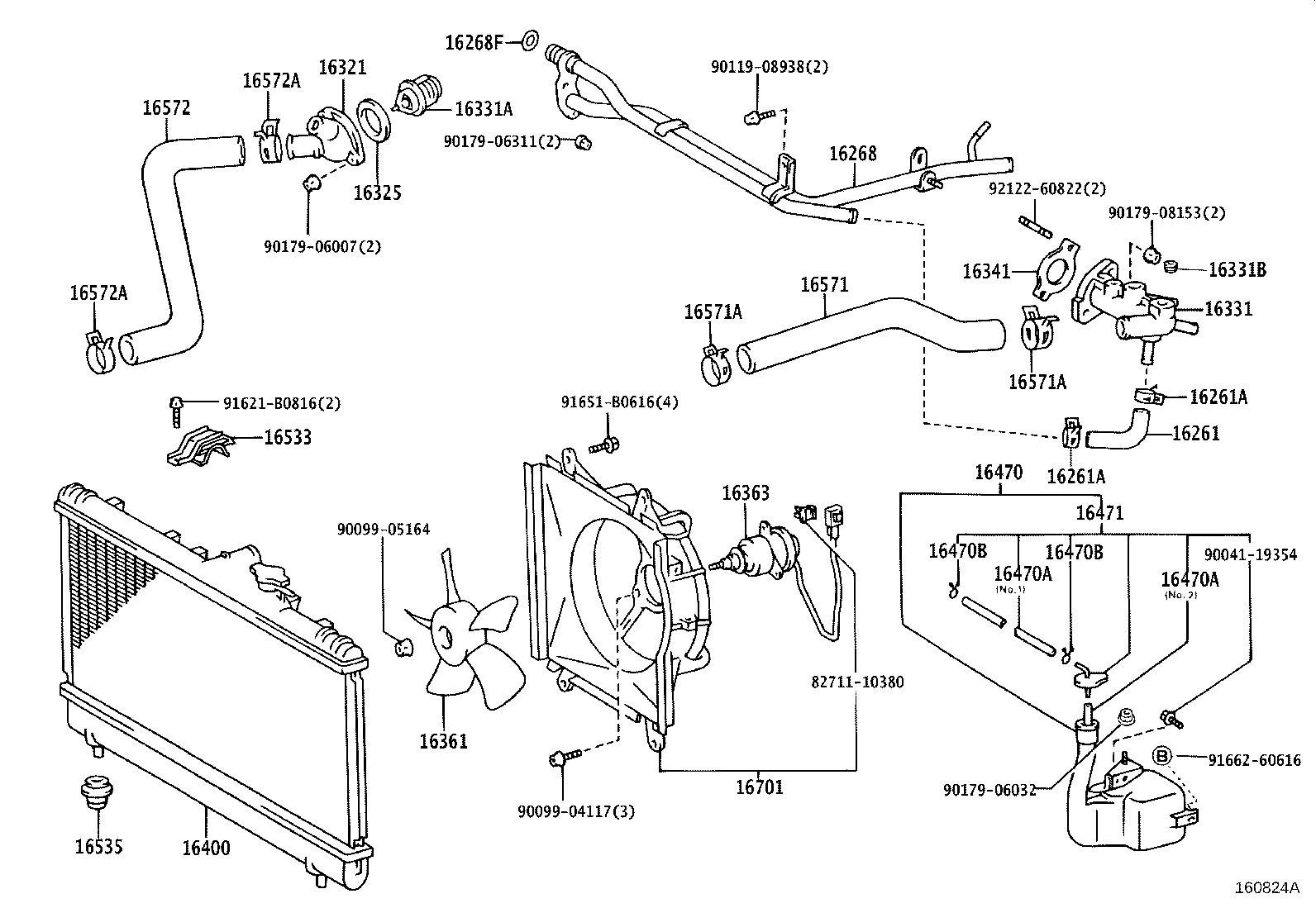

ILLUST NO. 1 OF 2(9311- )3SFE..GEN ; (9311- )5SFE..ATM

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16268 16268F 16321 16325 16331 16331A 16331B 16341 16361 16363 16400 16470 16470A 16470A 16470B 16470B 16471 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16701 8271110380 9004119354 9009904117 9009905164 9011908938 9017906007 9017906032 9017906311 9017908153 91621B0816 91651B0616 9166260616 9212260822
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-74010

3SFE,5SFE..ST202,204

 1
16261-74100

3SFE,5SFE..ST202,204

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3SFE,5SFE..ST202,204

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3SFE,5SFE..ST202,204

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-74152

3SFE..ST202..GEN;5SFE..ST204..ATM

 1
16268-74153

3SFE..ST202..GEN;5SFE..ST204..ATM

 1
16268-74190

3SFE..ST202..GEN;5SFE..ST204..ATM

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24017

3SFE,5SFE..ST202,204

 1
16321 - INLET, WATER
16321-74050

3SFE..ST202

 1
16321-74030

3SFE..ST202

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63011

3SFE..ST202

 1
16331 - OUTLET, WATER
16331-74220

3SFE..ST202

 1
16331-74260

3SFE..ST202

W(WATER OUTLET PLUG)

 1
16331-74210

3SFE..ST202

W(WATER OUTLET PLUG)

 1
16331-74170

3SFE,5SFE..ST202,204

 1
16331-74210

3SFE,5SFE..ST202,204

 1
16331A - THERMOSTAT
90916-03046

3SFE..ST202

*WAX 82-95

 1
90916-03090

3SFE..ST202

*WAX 82-95

 1
16331B - PLUG(FOR WATER OUTLET)
90345-53007

3SFE..ST202

 1
90345-53009

3SFE..ST202

 1
16341 - GASKET, WATER OUTLET
16341-74020

3SFE,5SFE..ST202,204

 1
16361 - FAN
16361-74060

3SFE,5SFE..ST202,204

 1
16363 - MOTOR, COOLING FAN
16363-11020

3SFE,5SFE..ST202,204

 1
16400 - RADIATOR ASSY
16400-7A060

3SFE..ST202..MTM..GEN

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-74260

3SFE,5SFE..ST202,204

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12066

3SFE,5SFE..ST202,204

*H,L=300,NO.2

 1
90445-12078

3S#,5SFE..ST20#

*H,L=210,NO.1

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12066

3SFE,5SFE..ST202,204

*H,L=300,NO.2

 1
90445-12078

3S#,5SFE..ST20#

*H,L=210,NO.1

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3S#,5SFE..ST20#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3S#,5SFE..ST20#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-74250

3SFE,5SFE..ST202,204

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-74260

3S#,5SFE..ST20#

 2
16535 - SUPPORT, RADIATOR, LOWER
90916-04002

3S#,5SFE..ST20#

 2
16571 - HOSE, RADIATOR, INLET
16571-74340

3SFE,5SFE..ST202,204

 1
16571-74280

3SFE,5SFE..ST202,204

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34003

3S#,5SFE..ST20#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34003

3S#,5SFE..ST20#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-74230

3SFE,5SFE..ST202,204

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34003

3S#,5SFE..ST20#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34003

3S#,5SFE..ST20#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-74501

3SFE,5SFE..ST202,204

 1
16711-74500

3SFE,5SFE..ST202,204

 1
Common parts
82711-10380
90041-19354
90099-04117
90099-05164
90119-08938
90179-06007
90179-06032
90179-06311
90179-08153
91621-B0816
91651-B0616
91662-60616
92122-60822

ILLUST NO. 2 OF 2(9311- )

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16406A 16406A 16441 16442 16461 16462 16491 16491A 16491A 16491B 16491B 16495 9338516012
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-7A060

3SFE..ST202..MTM..GEN

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

3S#,5SFE..ST20#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

3S#,5SFE..ST20#

 1
16492-21050

3S#,5SFE..ST20#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-72090

3S#,5SFE..ST20#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-7A061

3SFE..ST202..MTM..GEN

 1
16403-7A060

3SFE..ST202..MTM..GEN

 1
16441 - TANK, RADIATOR, UPPER
16441-7A060

3SFE..ST202..MTM..GEN

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-11380

3SFE..ST202..MTM..GEN

 1
16461 - TANK, RADIATOR, LOWER
16461-7A060

3SFE..ST202..MTM..GEN

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-42240

3S#,5SFE..ST20#

 1
Common parts
93385-16012
