Toyota Celica ST202 ENGINE OIL PUMP

ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999

Engine 3SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

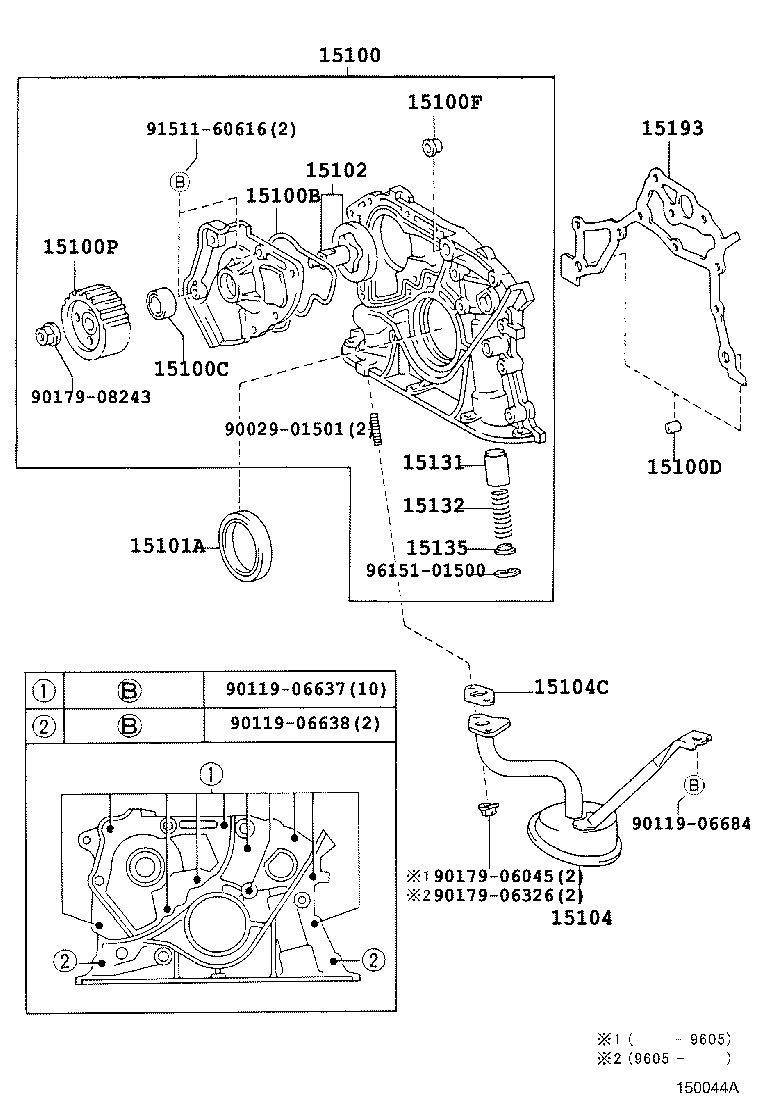

(9508- )3SFE,5SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
15100 - PUMP ASSY, OIL
15100-74010	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
15100-74060	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
15100B - RING, O(FOR OIL PUMP)
15188-88382	3S#,5SFE..ST20#	11/1993 - 08/1996	1
15188-74050	3SFE,5SFE..ST202,204	08/1996 - 12/2999	1
15100C - SEAL(FOR OIL PUMP)
15165-74020	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15100D - PIN(FOR OIL PUMP SET)
90253-09001	3S#,5SFE..ST20#	11/1993 - 12/2999	2
15100F - BUSH (FOR OIL PUMP)
90029-38302	3SFE,5SFE..ST202,204	11/1995 - 12/2999	1
90029-38302	3S#,5SFE..ST20#	11/1993 - 11/1995	1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-74020	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15101A - SEAL(FOR CRANKSHAFT)
90311-42026	3S#,5SFE..ST20#	11/1993 - 09/1996	1
90311-42032	3SFE,5SFE..ST202,204	09/1996 - 10/1997	1
90311-42035	3SFE,5SFE..ST202,204	10/1997 - 12/2999	1
15102 - ROTOR SET, OIL PUMP
15102-63010	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15104 - STRAINER SUB-ASSY, OIL
15104-74090	3SFE,5SFE..ST202,204	06/1996 - 12/2999	1
15104-88380	3SFE,5SFE..ST202,204	11/1993 - 06/1996	1
15104C - GASKET(FOR OIL STRAINER)
15149-74030	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15131 - VALVE, OIL PUMP RELIEF
15131-24010	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15193 - GASKET, OIL PUMP
15197-74030	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
15197-74040	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
Common parts
90029-01501
90119-06637
90119-06638
90119-06684
90179-06045
90179-06326
90179-08243
91511-60616
96151-01500

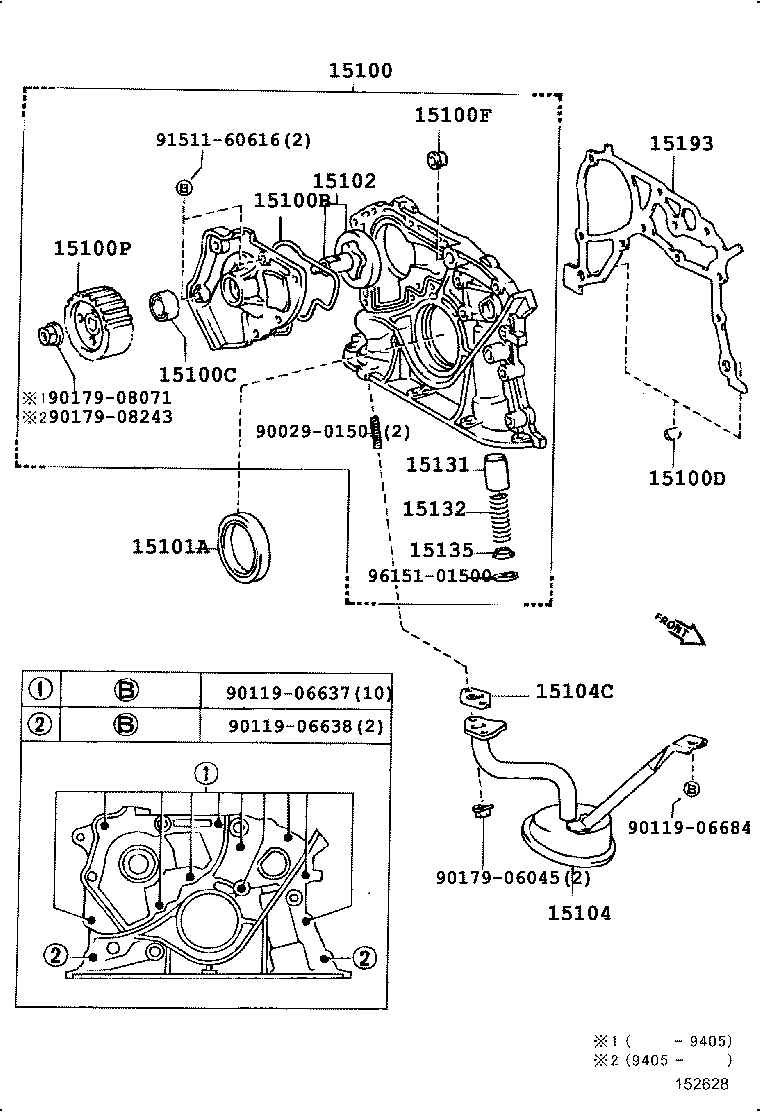

(9311-9508)3SFE,5SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
15100 - PUMP ASSY, OIL
15100-74010	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
15100-74060	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
15100B - RING, O(FOR OIL PUMP)
15188-88382	3S#,5SFE..ST20#	11/1993 - 08/1996	1
15188-74050	3SFE,5SFE..ST202,204	08/1996 - 12/2999	1
15100C - SEAL(FOR OIL PUMP)
15165-74020	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15100D - PIN(FOR OIL PUMP SET)
90253-09001	3S#,5SFE..ST20#	11/1993 - 12/2999	2
15100F - BUSH (FOR OIL PUMP)
90029-38302	3SFE,5SFE..ST202,204	11/1995 - 12/2999	1
90029-38302	3S#,5SFE..ST20#	11/1993 - 11/1995	1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-74020	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15101A - SEAL(FOR CRANKSHAFT)
90311-42026	3S#,5SFE..ST20#	11/1993 - 09/1996	1
90311-42032	3SFE,5SFE..ST202,204	09/1996 - 10/1997	1
90311-42035	3SFE,5SFE..ST202,204	10/1997 - 12/2999	1
15102 - ROTOR SET, OIL PUMP
15102-63010	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15104 - STRAINER SUB-ASSY, OIL
15104-74090	3SFE,5SFE..ST202,204	06/1996 - 12/2999	1
15104-88380	3SFE,5SFE..ST202,204	11/1993 - 06/1996	1
15104C - GASKET(FOR OIL STRAINER)
15149-74030	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15131 - VALVE, OIL PUMP RELIEF
15131-24010	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
15193 - GASKET, OIL PUMP
15197-74030	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
15197-74040	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
Common parts
90029-01501
90119-06637
90119-06638
90119-06684
90179-06045
90179-08071
90179-08243
91511-60616
96151-01500

ST202R-BLMSK (1993)

(9508- )3SFE,5SFE

(9311-9508)3SFE,5SFE
