ST202L-BLMSKV (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )

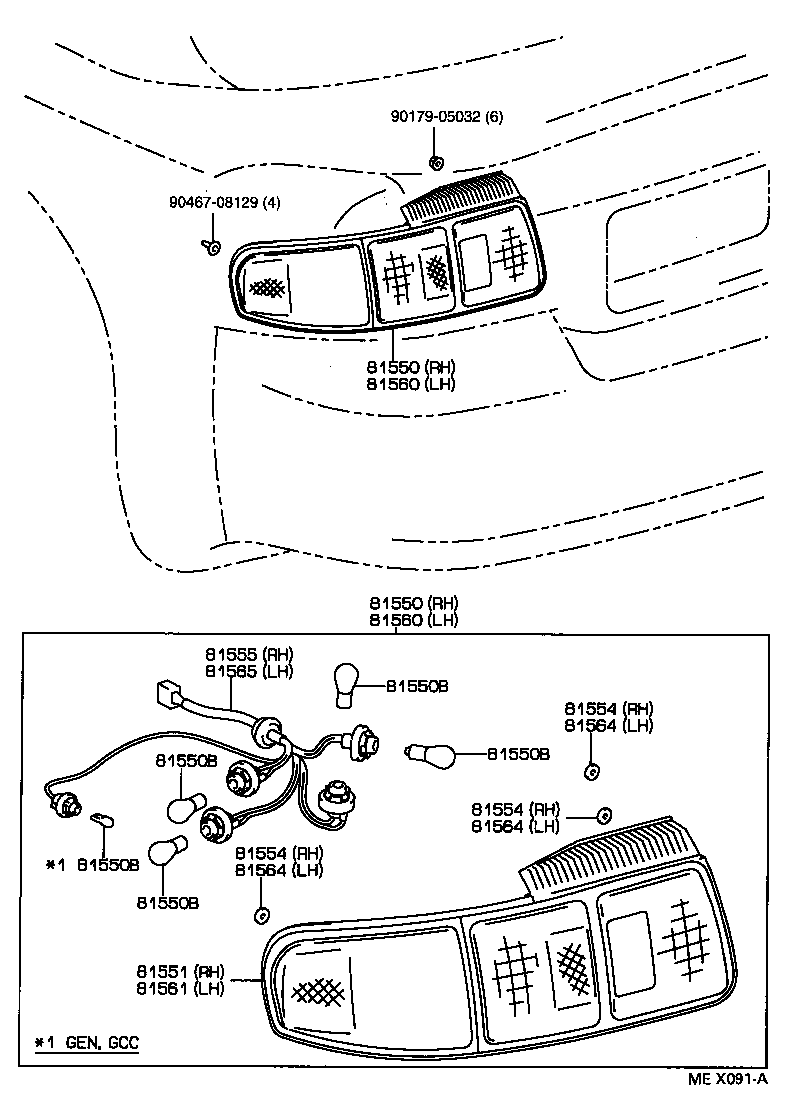

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81550B 81550B 81551 81554 81554 81554 81555 81560 81560 81561 81564 81564 81564 81565 9017905032 9046708129
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B360

ST202

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B360

ST202

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

ST20#

12V 21W

 4
99132-21210

ST202

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

ST20#

12V 21W

 4
99132-21210

ST202

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

ST20#

12V 21W

 4
99132-21210

ST202

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

ST20#

12V 21W

 4
99132-21210

ST202

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

ST20#

12V 21W

 4
99132-21210

ST202

12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-2B360

ST202

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-2B360

ST20#

 3
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-2B360

ST20#

 3
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-2B360

ST20#

 3
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2B360

ST202

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B300

ST202

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B300

ST202

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-2B300

ST202

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-2B360

ST20#

 3
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-2B360

ST20#

 3
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-2B360

ST20#

 3
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-2B360

ST202

 1
Common parts
90179-05032
90467-08129
