Toyota Celica ST202 TIMING GEAR COVER & REAR END PLATE

Manufacturers Home
Toyota
GR
CELICA
ST202L-BLMSKV (1993)
1106 - TIMING GEAR COVER & REAR END PLATE

ST202L-BLMSKV (1993)

Toyota Celica

Production Nov 1993 - Aug 1999

Engine 3SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

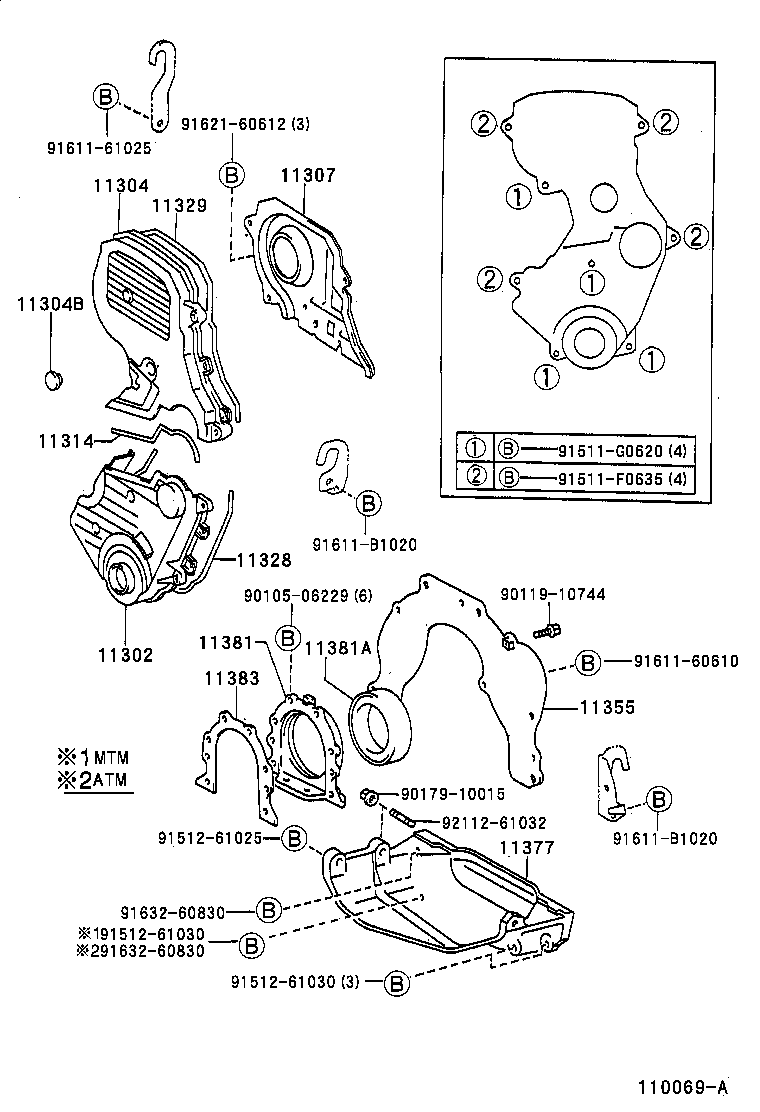

(9508- )3SFE,5SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-74030	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11302-74040	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-74050	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11303-74040	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01489	3SFE,5SFE..ST202,204 OD=33	11/1993 - 12/2999	1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-74030	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11304-74040	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-74020	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11319-74030	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-74060	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11328-74040	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11329 - GASKET, TIMING GEAR REAR COVER
11329-74070	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11329-74080	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11355 - PLATE, REAR END
11355-74010	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
11377 - STIFFENER, REAR END PLATE
11377-74030	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-85006	3SFE,5SFE..ST202,204	11/1993 - 01/1998	1
90311-85009	3SFE,5SFE..ST202,204	01/1998 - 12/2999	1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-74021	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
Common parts
90105-06229
90119-10744
90179-10015
91511-F0635
91511-G0620
91512-61025
91512-61030
91611-60610
91611-61025
91611-B1020
91621-60612
91632-60830
92112-61032

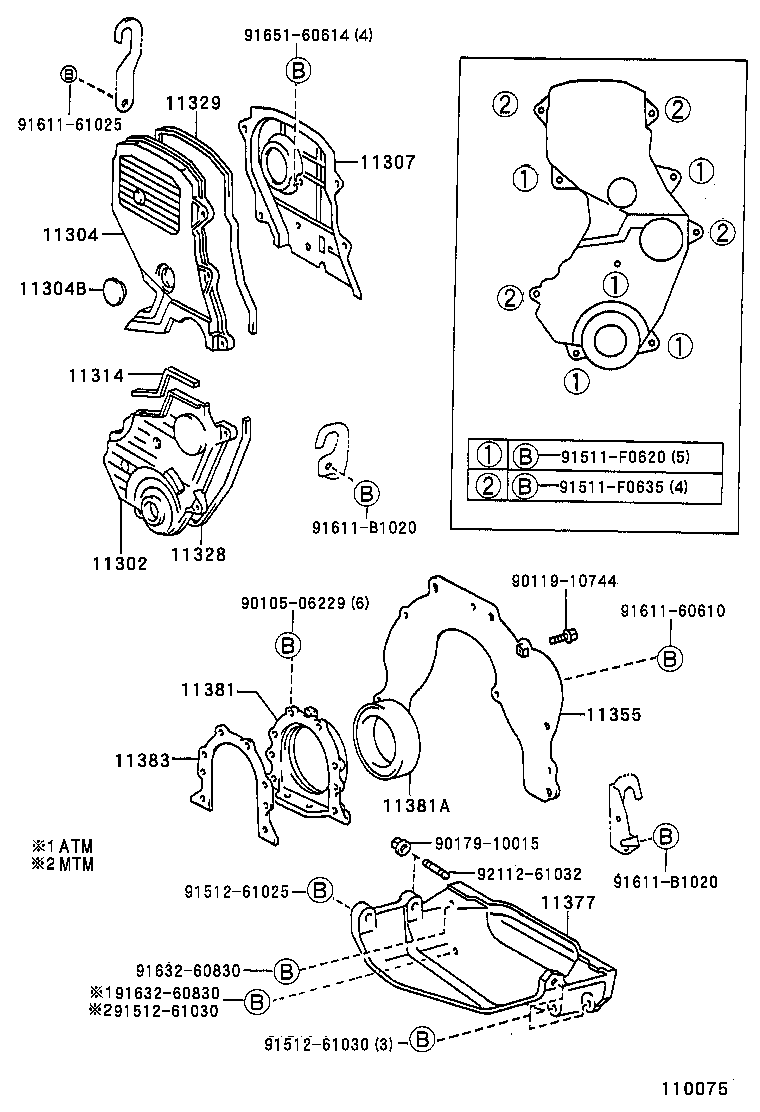

(9311-9508)3SFE,5SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-74030	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11302-74040	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-74050	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11303-74040	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01489	3SFE,5SFE..ST202,204 OD=33	11/1993 - 12/2999	1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-74030	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11304-74040	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-74020	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11319-74030	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-74060	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11328-74040	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11329 - GASKET, TIMING GEAR REAR COVER
11329-74070	3SFE,5SFE..ST202,204	11/1993 - 08/1995	1
11329-74080	3SFE,5SFE..ST202,204	08/1995 - 12/2999	1
11355 - PLATE, REAR END
11355-74010	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
11377 - STIFFENER, REAR END PLATE
11377-74030	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-85006	3SFE,5SFE..ST202,204	11/1993 - 01/1998	1
90311-85009	3SFE,5SFE..ST202,204	01/1998 - 12/2999	1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-74021	3SFE,5SFE..ST202,204	11/1993 - 12/2999	1
Common parts
90105-06229
90119-10744
90179-10015
91511-F0620
91511-F0635
91512-61025
91512-61030
91611-60610
91611-61025
91611-B1020
91632-60830
91651-60614
92112-61032

ST202L-BLMSKV (1993)

(9508- )3SFE,5SFE

(9311-9508)3SFE,5SFE
