ST185R-BLMVZQ (1989)
Toyota Celica

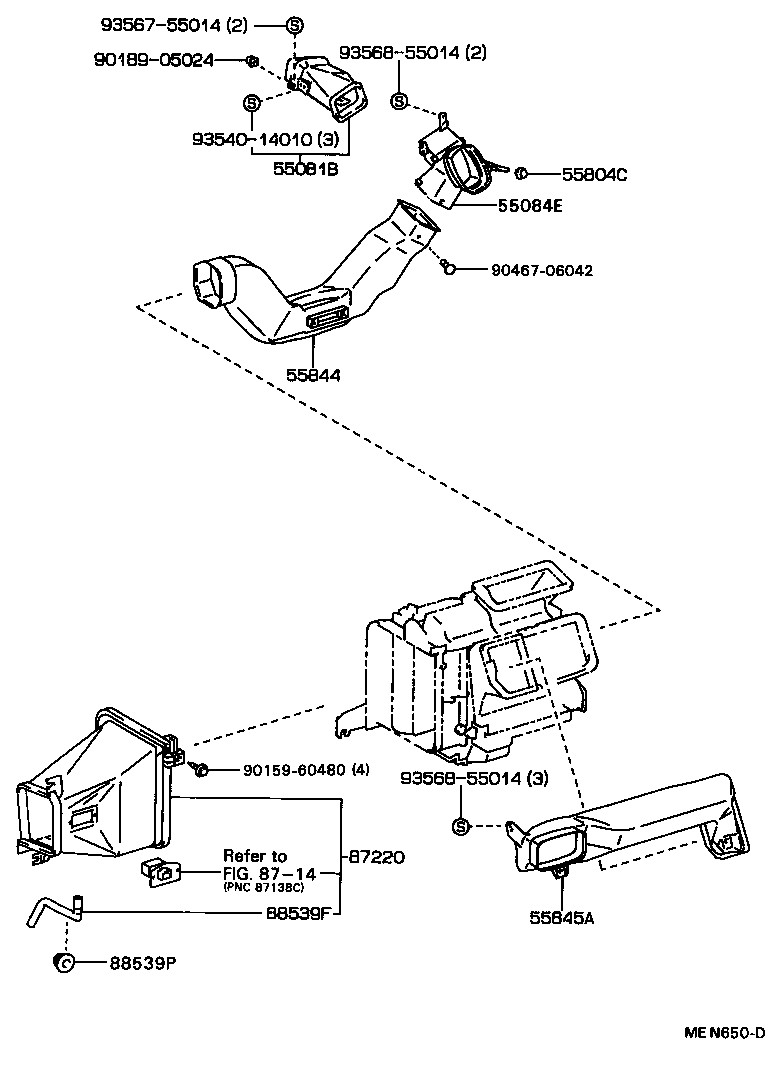

ILLUST NO. 2 OF 2(8910- )RHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55081B - DUCT SUB-ASSY, COWL TO REGISTER | ||||
| 55081-20030 |
AT180,ST184,185..RHD |
1 | ||
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-20150 |
AT180,ST184,185..RHD |
1 | ||
| 55804C - KNOB SUB-ASSY, AIR DAMPER CONTROL | ||||
| 55804-20050 |
AT180,ST18# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-20180 |
AT180,ST184,185..RHD |
1 | ||
| 55844-20190 |
AT180,ST184,185..RHD W(AIR CONDITIONER) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-20180 |
AT180,ST184,185..RHD |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-20110 |
AT180,ST184,185..RHD |
1 | ||
| 87220-20120 |
AT180,ST184,185..RHD |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-20190 |
AT180,ST18# |
1 | ||
| 88539P - GROMMET(FOR DRAIN HOSE) | ||||
| 90480-26004 |
AT180,ST184,185..RHD |
1 | ||
| Common parts | ||||
| 90159-60480 | ||||
| 90189-05024 | ||||
| 90467-06042 | ||||
| 93540-14010 | ||||
| 93567-55014 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

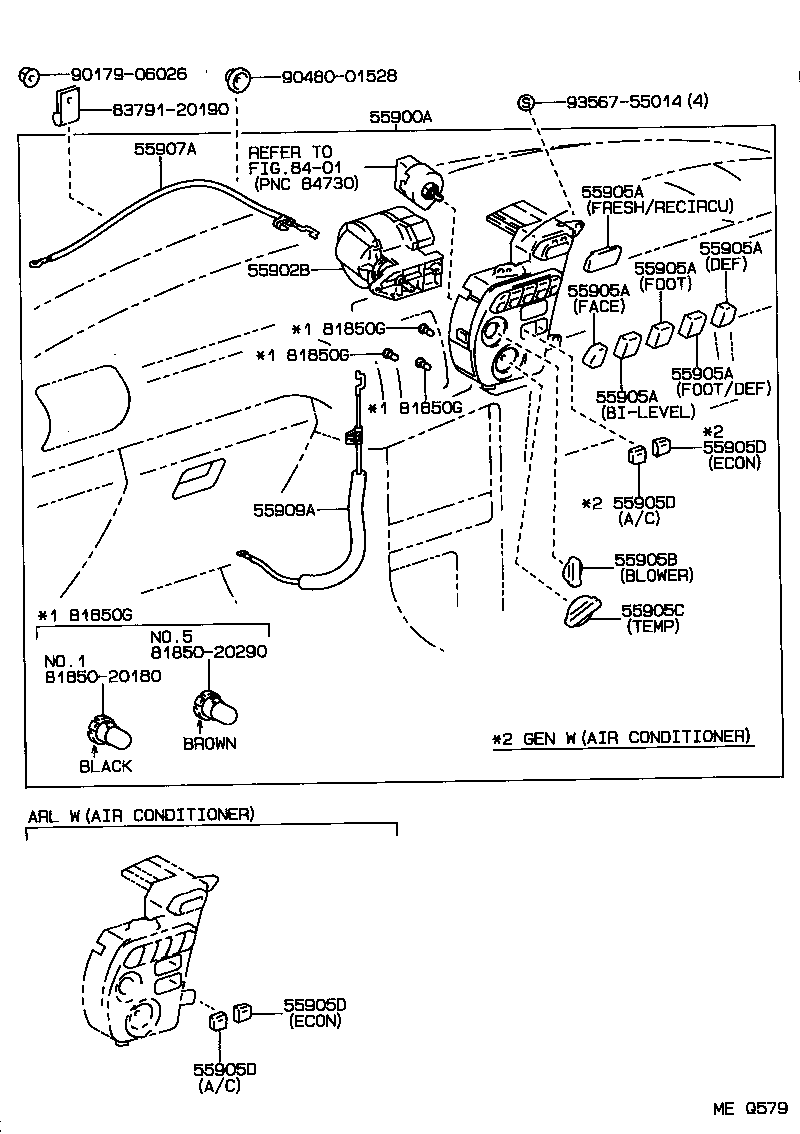

ILLUST NO. 1 OF 2(8910- )RHD
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-20500 |
AT180,ST184,185..RHD |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-20070 |
AT180,ST184,185..RHD |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20430 |
AT180,ST184,185..RHD FRESH/RECIRCU |
1 | ||
| 55905-20460 |
AT180,ST184,185..RHD FOOT |
1 | ||
| 55905-20480 |
AT180,ST184,185..RHD DEF |
1 | ||
| 55905-20450 |
AT180,ST184,185..RHD BI-LEVEL |
1 | ||
| 55905-20470 |
AT180,ST184,185..RHD FOOT/DEF |
1 | ||
| 55905-20440 |
AT180,ST184,185..RHD FACE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20430 |
AT180,ST184,185..RHD FRESH/RECIRCU |
1 | ||
| 55905-20460 |
AT180,ST184,185..RHD FOOT |
1 | ||
| 55905-20480 |
AT180,ST184,185..RHD DEF |
1 | ||
| 55905-20450 |
AT180,ST184,185..RHD BI-LEVEL |
1 | ||
| 55905-20470 |
AT180,ST184,185..RHD FOOT/DEF |
1 | ||
| 55905-20440 |
AT180,ST184,185..RHD FACE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20430 |
AT180,ST184,185..RHD FRESH/RECIRCU |
1 | ||
| 55905-20460 |
AT180,ST184,185..RHD FOOT |
1 | ||
| 55905-20480 |
AT180,ST184,185..RHD DEF |
1 | ||
| 55905-20450 |
AT180,ST184,185..RHD BI-LEVEL |
1 | ||
| 55905-20470 |
AT180,ST184,185..RHD FOOT/DEF |
1 | ||
| 55905-20440 |
AT180,ST184,185..RHD FACE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20430 |
AT180,ST184,185..RHD FRESH/RECIRCU |
1 | ||
| 55905-20460 |
AT180,ST184,185..RHD FOOT |
1 | ||
| 55905-20480 |
AT180,ST184,185..RHD DEF |
1 | ||
| 55905-20450 |
AT180,ST184,185..RHD BI-LEVEL |
1 | ||
| 55905-20470 |
AT180,ST184,185..RHD FOOT/DEF |
1 | ||
| 55905-20440 |
AT180,ST184,185..RHD FACE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20430 |
AT180,ST184,185..RHD FRESH/RECIRCU |
1 | ||
| 55905-20460 |
AT180,ST184,185..RHD FOOT |
1 | ||
| 55905-20480 |
AT180,ST184,185..RHD DEF |
1 | ||
| 55905-20450 |
AT180,ST184,185..RHD BI-LEVEL |
1 | ||
| 55905-20470 |
AT180,ST184,185..RHD FOOT/DEF |
1 | ||
| 55905-20440 |
AT180,ST184,185..RHD FACE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20430 |
AT180,ST184,185..RHD FRESH/RECIRCU |
1 | ||
| 55905-20460 |
AT180,ST184,185..RHD FOOT |
1 | ||
| 55905-20480 |
AT180,ST184,185..RHD DEF |
1 | ||
| 55905-20450 |
AT180,ST184,185..RHD BI-LEVEL |
1 | ||
| 55905-20470 |
AT180,ST184,185..RHD FOOT/DEF |
1 | ||
| 55905-20440 |
AT180,ST184,185..RHD FACE |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-20660 |
AT180,ST18# BLOWER SWITCH |
1 | ||
| 55905-20660 |
AT180,ST18# |
1 | ||
| 55905-20660 |
AT180,ST184,185..RHD |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-20680 |
AT180,ST18# |
1 | ||
| 55905-20680 |
AT180,ST18# TEMP |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-20360 |
AT180,ST184,185..RHD ECON |
1 | ||
| 55905-20350 |
AT180,ST184,185..RHD A/C |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-20360 |
AT180,ST184,185..RHD ECON |
1 | ||
| 55905-20350 |
AT180,ST184,185..RHD A/C |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-20360 |
AT180,ST184,185..RHD ECON |
1 | ||
| 55905-20350 |
AT180,ST184,185..RHD A/C |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-20360 |
AT180,ST184,185..RHD ECON |
1 | ||
| 55905-20350 |
AT180,ST184,185..RHD A/C |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-20240 |
AT180,ST184,185..RHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-20110 |
AT180,ST18# |
1 | ||
| 55909-20110 |
AT180,ST184,185..RHD |
1 | ||
| 81850G - LAMP ASSY, INDICATOR | ||||
| 81850-20290 |
AT180,ST18# NO.5 |
1 | ||
| 81850-20180 |
AT180,ST18# NO.1 |
3 | ||
| 81850G - LAMP ASSY, INDICATOR | ||||
| 81850-20290 |
AT180,ST18# NO.5 |
1 | ||
| 81850-20180 |
AT180,ST18# NO.1 |
3 | ||
| 81850G - LAMP ASSY, INDICATOR | ||||
| 81850-20290 |
AT180,ST18# NO.5 |
1 | ||
| 81850-20180 |
AT180,ST18# NO.1 |
3 | ||
| 81850G - LAMP ASSY, INDICATOR | ||||
| 81850-20290 |
AT180,ST18# NO.5 |
1 | ||
| 81850-20180 |
AT180,ST18# NO.1 |
3 | ||
| Common parts | ||||
| 81850-20180 | ||||
| 81850-20290 | ||||
| 83791-20190 | ||||
| 90179-06026 | ||||
| 90480-01528 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
