ST185R-BLMVZQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )ST184,185

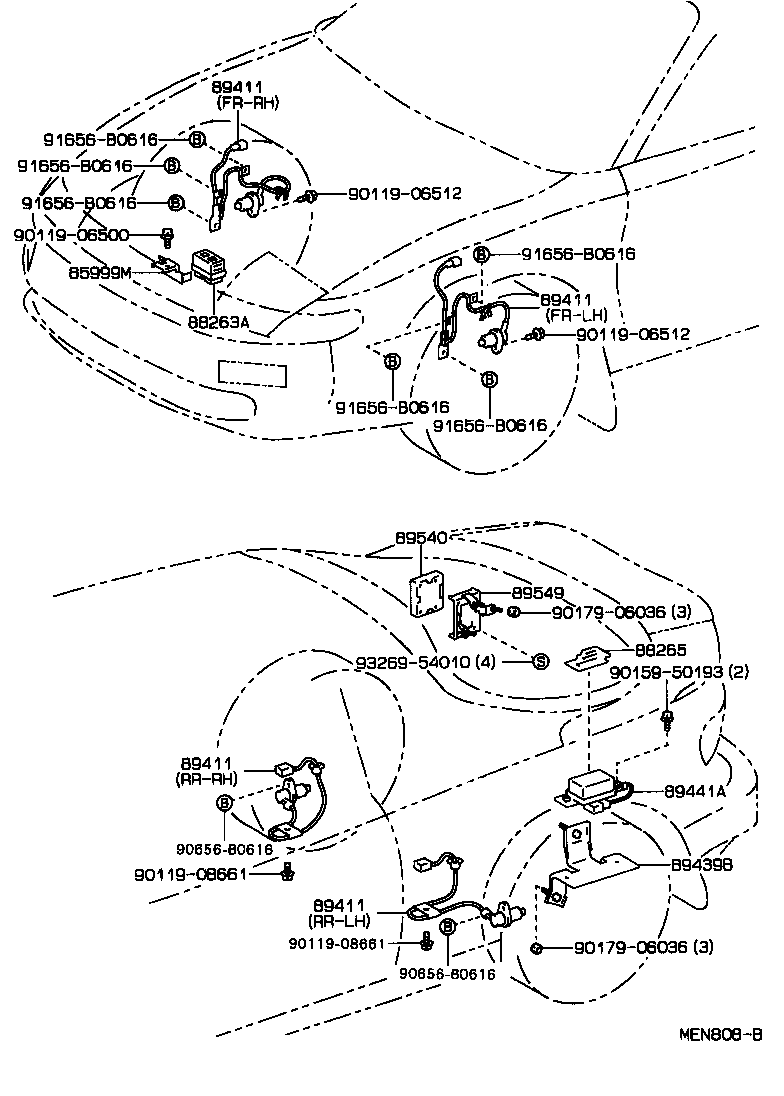

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-20350 |
ST184,185 |
1 | ||
| 85999-20350 |
ST185 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-12070 |
ST185 |
1 | ||
| 88263-12070 |
ST184,185 |
1 | ||
| 88265 - LABEL, SKID CONTROL CAUTION | ||||
| 88265-20050 |
ST185 |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89542-20020 |
ST185 |
1 | ||
| 89543-20020 |
ST185 |
1 | ||
| 89545-20060 |
ST185 REAR-RH |
1 | ||
| 89543-20020 |
ST184,185 |
1 | ||
| 89546-20060 |
ST185 |
1 | ||
| 89542-20020 |
ST184,185 |
1 | ||
| 89546-20060 |
ST185 REAR-LH |
1 | ||
| 89545-20060 |
ST185 |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89542-20020 |
ST185 |
1 | ||
| 89543-20020 |
ST185 |
1 | ||
| 89545-20060 |
ST185 REAR-RH |
1 | ||
| 89543-20020 |
ST184,185 |
1 | ||
| 89546-20060 |
ST185 |
1 | ||
| 89542-20020 |
ST184,185 |
1 | ||
| 89546-20060 |
ST185 REAR-LH |
1 | ||
| 89545-20060 |
ST185 |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89542-20020 |
ST185 |
1 | ||
| 89543-20020 |
ST185 |
1 | ||
| 89545-20060 |
ST185 REAR-RH |
1 | ||
| 89543-20020 |
ST184,185 |
1 | ||
| 89546-20060 |
ST185 |
1 | ||
| 89542-20020 |
ST184,185 |
1 | ||
| 89546-20060 |
ST185 REAR-LH |
1 | ||
| 89545-20060 |
ST185 |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89542-20020 |
ST185 |
1 | ||
| 89543-20020 |
ST185 |
1 | ||
| 89545-20060 |
ST185 REAR-RH |
1 | ||
| 89543-20020 |
ST184,185 |
1 | ||
| 89546-20060 |
ST185 |
1 | ||
| 89542-20020 |
ST184,185 |
1 | ||
| 89546-20060 |
ST185 REAR-LH |
1 | ||
| 89545-20060 |
ST185 |
1 | ||
| 89439B - BRACKET, SENSOR | ||||
| 89439-20010 |
ST185 |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89441-20030 |
ST185 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-20110 |
ST185 |
1 | ||
| 89541-20060 |
ST185 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 89549-20070 |
ST184,185 |
1 | ||
| 89549-20040 |
ST185 |
1 | ||
| Common parts | ||||
| 90119-06500 | ||||
| 90119-06512 | ||||
| 90119-08661 | ||||
| 90159-50193 | ||||
| 90179-06036 | ||||
| 90656-B0616 | ||||
| 91656-B0616 | ||||
| 93269-54010 | ||||
