ST185R-BLMVZQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )

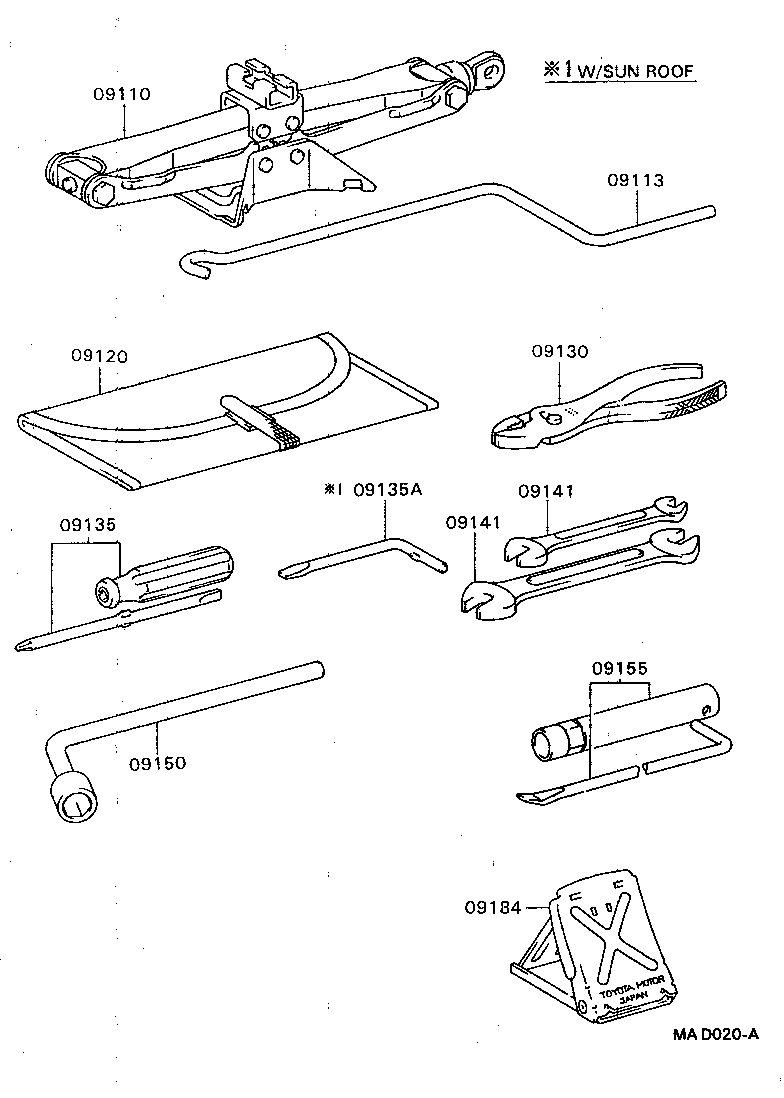

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09135A 09141 09141 09150 09155 09184
Part # Description Qty Price
09110 - JACK ASSY
09110-20070

ST185

 1
09111-24030

ST185

 1
09113 - HANDLE, JACK
09113-20030

AT180,ST18#

 1
09120 - BAG, TOOL
09120-12011

AT180,ST184,185

 1
09120-10030

AT180,ST18#

 1
09120-12011

AT180,ST18#

 1
09120-16030

AT180,ST18#

 1
09130 - PLIERS
99913-11500

AT180,ST18#

 1
09135 - DRIVER, SCREW
99915-10700

AT180,ST18#

 1
09135A - BIT, SCREW DRIVER
09135-00012

AT180,ST18#

 1
09141 - SPANNER
99914-11214

AT180,ST18#

12 X 14

 1
99914-10810

AT180,ST18#

8 X 10

 1
09141 - SPANNER
99914-11214

AT180,ST18#

12 X 14

 1
99914-10810

AT180,ST18#

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

AT180,ST18#

 1
09184 - STOPPER, WHEEL
09184-00010

AT180,ST18#

 1
