ST184R-BLPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )LB

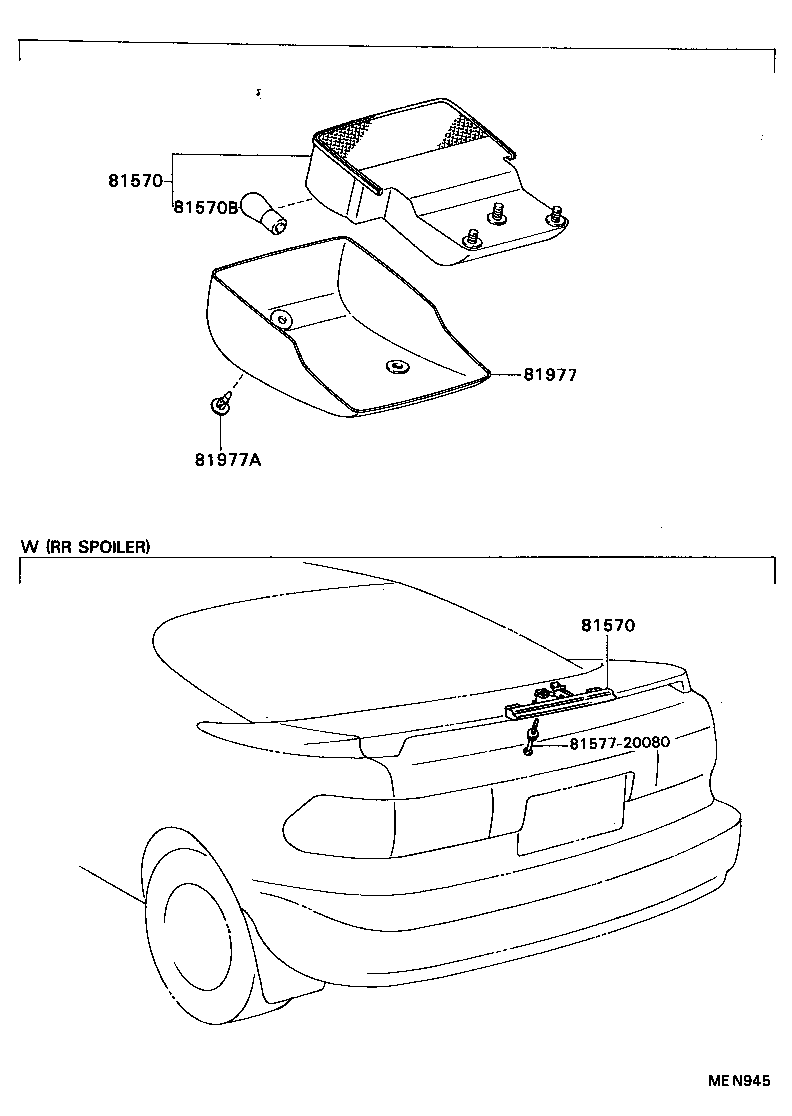

Click highlighted areas on diagram

diagram 81570 81570 81570B 8157720080 81977 81977A
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-20070

ST184..LB..NOB

 1
81570-20080

ST184..LB..NOB

W(REAR SPOILER)

 1
81570 - LAMP ASSY, CENTER STOP
81570-20070

ST184..LB..NOB

 1
81570-20080

ST184..LB..NOB

W(REAR SPOILER)

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

ST184..LB..NOB

12V 27W

 2
81977 - COVER, CENTER STOP LAMP
81977-2004003

ST184..LB..NOB

SHADOW GRAY,TRIM1#

 1
81977-2004004

ST184..LB..NOB

DARK BLUE,TRIM8#

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90467-07055B2

ST184..LB..NOB

SHADOW GRAY,TRIM1#

 3
90467-0705503

ST184..LB..NOB

GRAY,TRIM1#

 3
90467-07055J0

ST184..LB..NOB

DARK BLUE,TRIM8#

 3
Common parts
81577-20080
