ST184R-BLMSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )ST184 ; (8910- )TBO4W

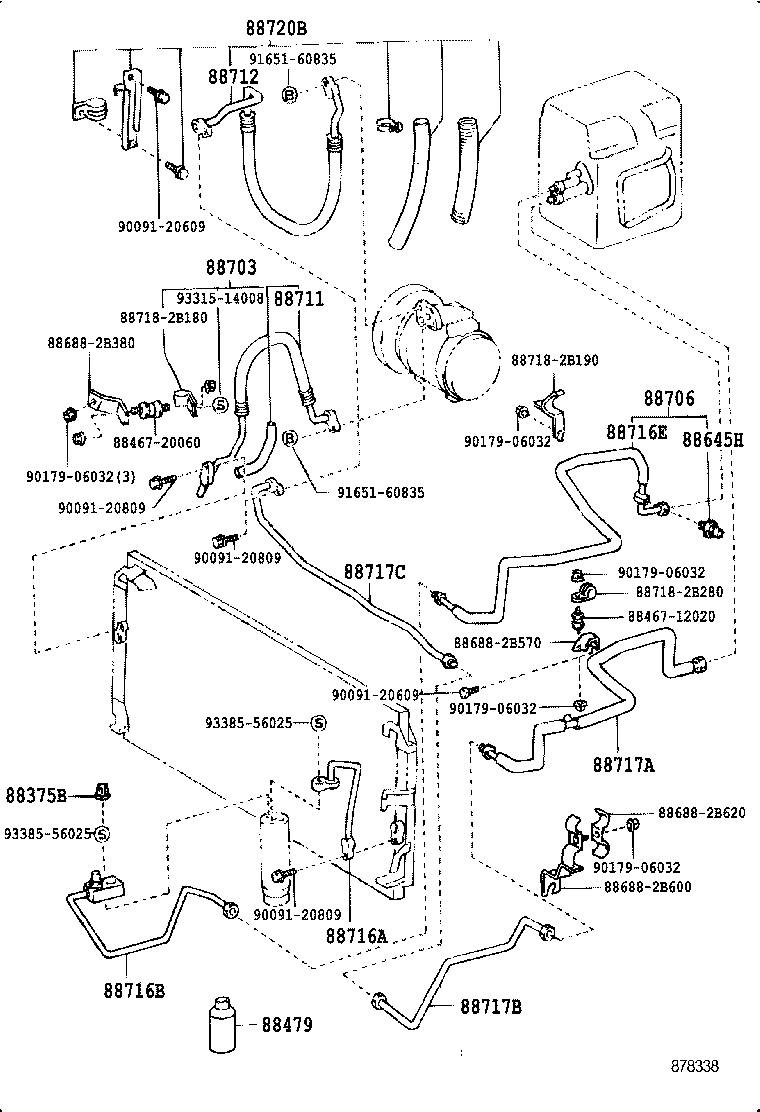

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-20010 |
AT180,ST182,184 |
1 | ||
| 88375-20010 |
AT180,ST184..RHD |
1 | ||
| 88375-20010 |
AT180,ST18# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
ST184,185 250G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20040 |
ST184,185 |
1 | ||
| 88645-20040 |
ST185..TBO4W;AT180,ST182,184 |
1 | ||
| 88645-20040 |
AT180,ST18# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-20060 |
ST182,184 |
1 | ||
| 88703-20100 |
ST184 |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-20070 |
ST184;ST185..TBO4W |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20710 |
ST182,184 |
1 | ||
| 88711-20711 |
ST184 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B121 |
ST184,185 |
1 | ||
| 88712-2B122 |
ST184 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2B760 |
AT180,ST182,184 |
1 | ||
| 88716-2B760 |
AT180,ST18# |
1 | ||
| 88716-2B760 |
AT180,ST184..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2B850 |
ST184 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2B860 |
ST184 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B050 |
ST184;ST185..TBO4W |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2B080 |
ST184;ST185..TBO4W |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2B090 |
ST184 |
1 | ||
| 88720B - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-20391 |
ST184,185 |
1 | ||
| 88720-20392 |
ST184;ST185..TBO4W |
1 | ||
| Common parts | ||||
| 88467-12020 | ||||
| 88467-20060 | ||||
| 88688-2B380 | ||||
| 88688-2B570 | ||||
| 88688-2B600 | ||||
| 88688-2B620 | ||||
| 88718-2B180 | ||||
| 88718-2B190 | ||||
| 88718-2B280 | ||||
| 90091-20609 | ||||
| 90091-20809 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 93315-14008 | ||||
| 93385-56025 | ||||
