ST184R-BLMSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

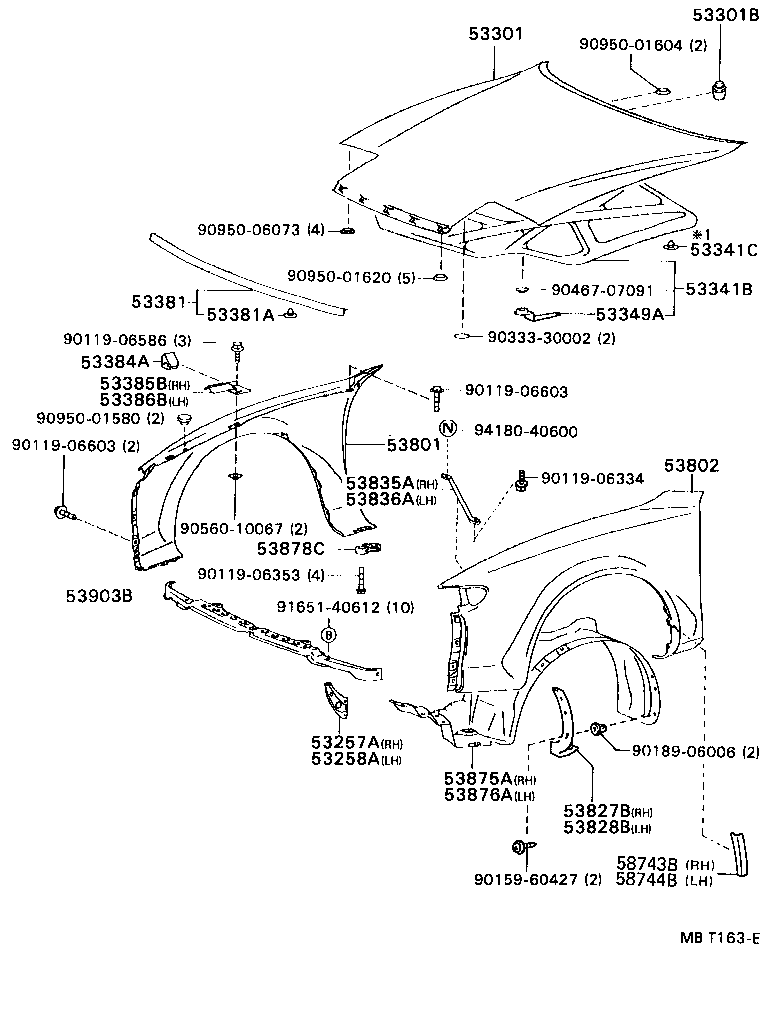

ILLUST NO. 1 OF 2(8910- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53257A - BRACKET, FRONT END PANEL MOUNTING, RH | ||||
| 53257-20010 |
AT180,ST18# |
1 | ||
| 53258A - BRACKET, FRONT END PANEL MOUNTING, LH | ||||
| 53258-20010 |
AT180,ST18# |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-20410 |
AT180,ST182,184 |
1 | ||
| 53301-20320 |
AT180,ST182,184 |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-09055 |
ST18# |
1 | ||
| 90541-09077 |
AT180,ST18# |
3 | ||
| 90541-09077 |
AT180,ST18# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-20170 |
ST182,184 |
1 | ||
| 53341-20171 |
ST182,184 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-08081 |
ST182,184 |
13 | ||
| 53349A - RETAINER, HOOD INSULATOR | ||||
| 53349-20020 |
ST18# |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-20110 |
AT180,ST18# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
AT180,ST18# |
4 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-20030 |
AT180,ST18# |
2 | ||
| 53385B - BRACKET, FENDER TO HOOD BUMPER, RH | ||||
| 53385-14010 |
AT180,ST18# |
1 | ||
| 53386B - BRACKET, FENDER TO HOOD BUMPER, LH | ||||
| 53386-14010 |
AT180,ST18# |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-2B130 |
AT180,ST182,184..NOB |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-2B130 |
AT180,ST182,184..NOB |
1 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-20060 |
AT180,ST18# |
1 | ||
| 53836A - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53835-20060 |
AT180,ST18# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-20190 |
AT180,ST182,184..NOB |
1 | ||
| 53875-20170 |
AT180,ST182,184..NOB |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-20180 |
AT180,ST182,184..NOB |
1 | ||
| 53876-20200 |
AT180,ST182,184..NOB |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-20040 |
AT180,ST18# |
2 | ||
| 53903B - PANEL SUB-ASSY, FRONT END | ||||
| 53903-20010 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 90119-06334 | ||||
| 90119-06353 | ||||
| 90119-06586 | ||||
| 90119-06603 | ||||
| 90159-60427 | ||||
| 90189-06006 | ||||
| 90333-30002 | ||||
| 90467-07091 | ||||
| 90560-10067 | ||||
| 90950-01580 | ||||
| 90950-01604 | ||||
| 90950-01620 | ||||
| 90950-06073 | ||||
| 91651-40612 | ||||
| 94180-40600 | ||||

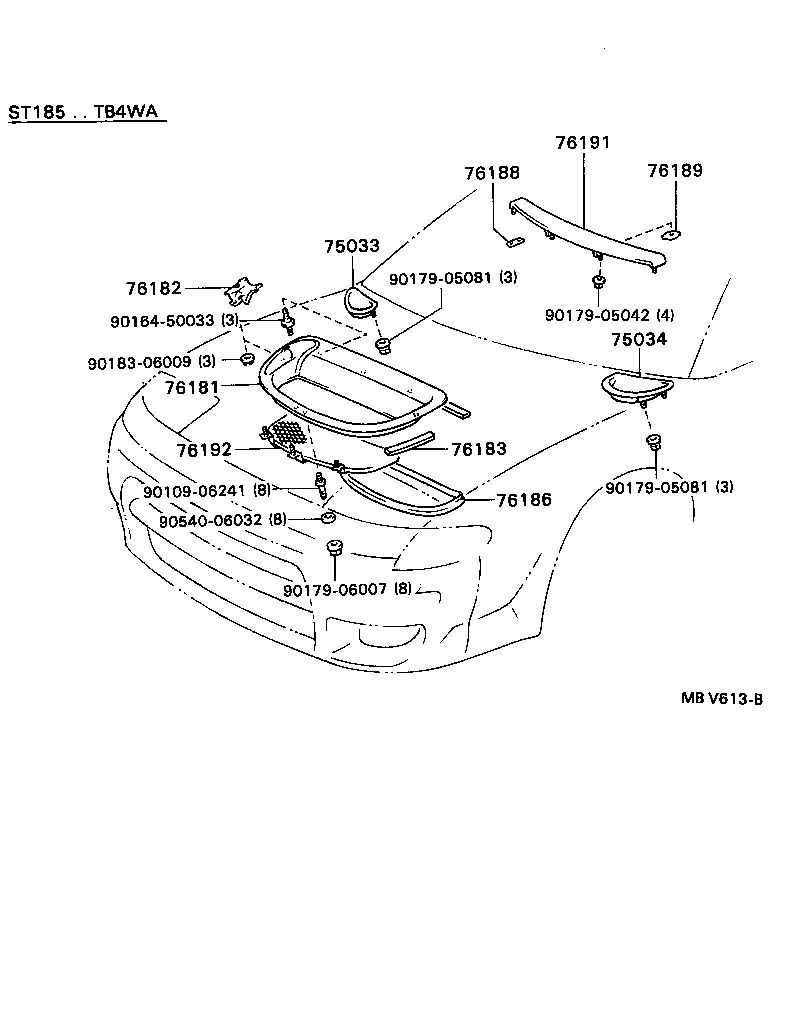

ILLUST NO. 2 OF 2(9108-9202)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06241 | ||||
| 90164-50033 | ||||
| 90179-05042 | ||||
| 90179-05081 | ||||
| 90179-06007 | ||||
| 90183-06009 | ||||
| 90540-06032 | ||||

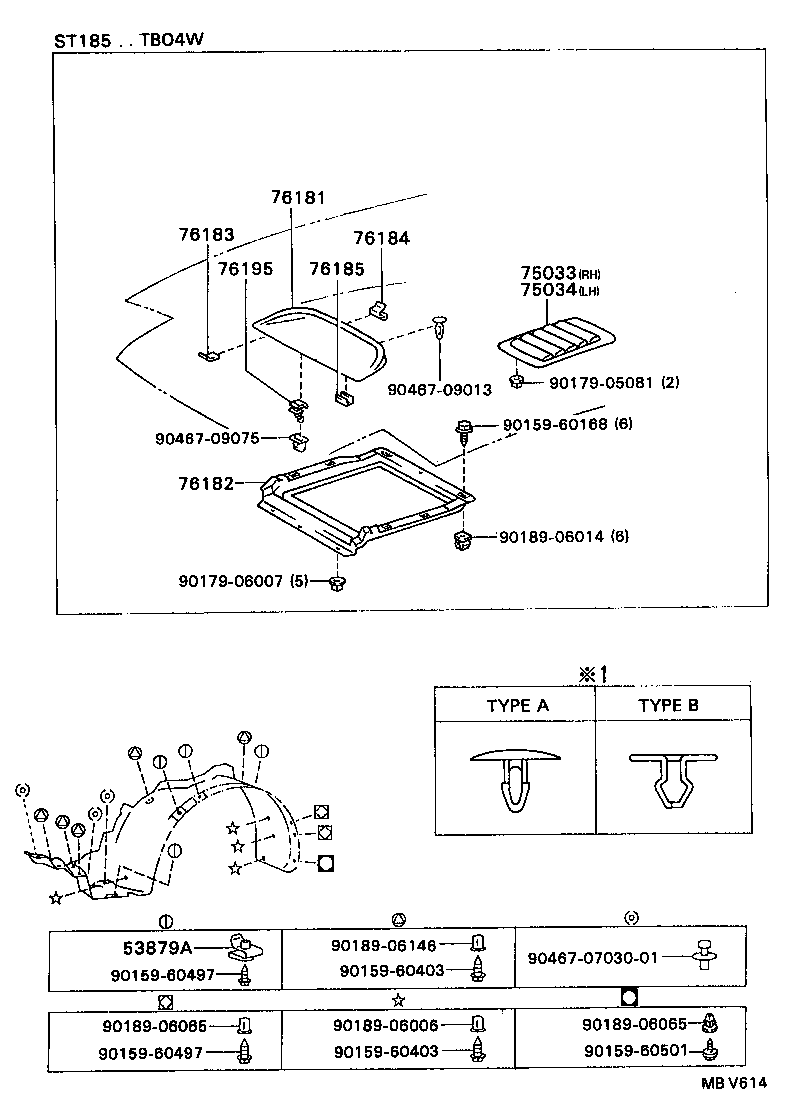

ILLUST NO. 2 OF 2(8910- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14010 |
AT180,ST18# |
8 | ||
| Common parts | ||||
| 90159-60168 | ||||
| 90159-60403 | ||||
| 90159-60497 | ||||
| 90159-60501 | ||||
| 90179-05081 | ||||
| 90179-06007 | ||||
| 90189-06006 | ||||
| 90189-06014 | ||||
| 90189-06065 | ||||
| 90189-06146 | ||||
| 90467-0703001 | ||||
| 90467-09013 | ||||
| 90467-09075 | ||||
