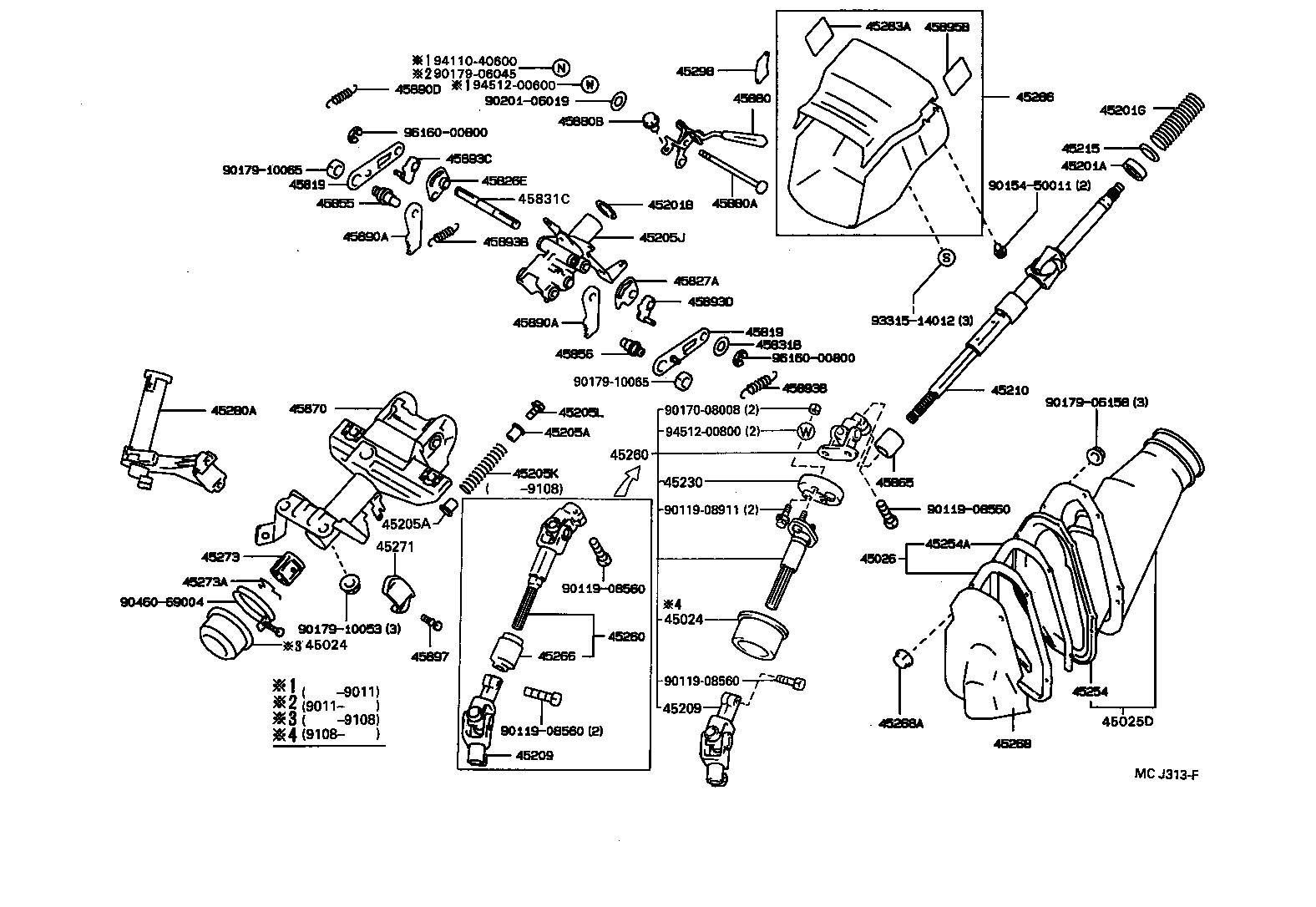

ST184R-BLMSKQ (1989)
Toyota Celica
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45026-20110 |
AT180,ST18# |
1 | ||
| 45024-20110 |
AT180,ST18# |
1 | ||
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45026-20110 |
AT180,ST18# |
1 | ||
| 45024-20110 |
AT180,ST18# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-20410 |
AT180,ST184,185..RHD |
1 | ||
| 45025-20280 |
AT180,ST184,185..RHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-20050 |
AT180,ST184,185..RHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
AT180,ST18# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AT180,ST18# T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
AT180,ST18# |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-06043 |
ST182,184 (MEMORY & AUTOMATIC TILT STEERING) |
2 | ||
| 90386-06031 |
AT180,ST18# |
2 | ||
| 90386-06043 |
AT180,ST182,184 |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-06043 |
ST182,184 (MEMORY & AUTOMATIC TILT STEERING) |
2 | ||
| 90386-06031 |
AT180,ST18# |
2 | ||
| 90386-06043 |
AT180,ST182,184 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-20290 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45205-20260 |
AT180,ST184..RHD |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90504-25008 |
AT180,ST18# |
1 | ||
| 90504-25004 |
AT180,ST18# |
1 | ||
| 45205L - SCREW(FOR STEERING COLUMN TUBE) | ||||
| 90159-60429 |
AT180,ST18# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
AT180,ST18# |
1 | ||
| 45209-16010 |
AT180,ST18# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
AT180,ST18# |
1 | ||
| 45209-16010 |
AT180,ST18# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-20290 |
AT180,ST18# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
AT180,ST18# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-20030 |
AT180,ST18# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20230 |
AT180,ST184,185..RHD |
1 | ||
| 45254-20190 |
AT180,ST184,185..RHD |
1 | ||
| 45254A - SHIELD, STEERING COLUMN HOLE, NO.2 | ||||
| 45254-20210 |
AT180,ST184,185..RHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-20320 |
AT180,ST184,185..RHD |
1 | ||
| 45260-20160 |
AT180,ST184,185..RHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-20320 |
AT180,ST184,185..RHD |
1 | ||
| 45260-20160 |
AT180,ST184,185..RHD |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
AT180,ST18# |
1 | ||
| 45268 - COVER, STEERING INTER SHAFT DUST SEAL | ||||
| 45268-20030 |
AT180,ST184,185..RHD |
1 | ||
| 45268A - NUT(FOR STEERING INTER SHAFT DUST SEAL COVER) | ||||
| 90179-06007 |
AT180,ST184,185..RHD |
4 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
AT180,ST18# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20010 |
AT180,ST18# |
1 | ||
| 45273-20011 |
AT180,ST18# |
1 | ||
| 45273A - RING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH) | ||||
| 90521-01006 |
AT180,ST18# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-20500 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) OR W(POWER WINDOW) |
1 | ||
| 45280-20490 |
AT180,ST182,184 |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
AT180,ST184..RHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2091203 |
AT180,ST184..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2092004 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45287-2092003 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2091204 |
AT180,ST184..RHD DARK BLUE,TRIM8# |
1 | ||
| 45287-2092004 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING & CRUISE CONTROL),DARK BLUE,TRIM8# |
1 | ||
| 45287-2092003 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING & CRUISE CONTROL),SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2091207 |
AT180,ST184..RHD KHAKI,TRIM8# |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-2001004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 45298-2001003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22060 |
AT180,ST182,184 |
2 | ||
| 45819-20070 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45819-22040 |
AT180,ST182,184 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22060 |
AT180,ST182,184 |
2 | ||
| 45819-20070 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45819-22040 |
AT180,ST182,184 |
2 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-22050 |
AT180,ST18# |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
AT180,ST182,184 |
1 | ||
| 45827-20050 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45831B - SPACER(FOR TILT LEVER LOCK SHAFT) | ||||
| 90560-10062 |
AT180,ST18# |
1 | ||
| 45831C - SHAFT, TILT LEVER LOCK | ||||
| 45831-20030 |
AT180,ST18# |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-22010 |
ST182,184 OD=9.989-9.998,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45856-22010 |
AT180,ST182,184 OD=9.989-9.998 |
1 | ||
| 45855-22020 |
ST182,184 OD=9.998-10.007,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
AT180,ST182,184 OD=9.989-9.998 |
1 | ||
| 45856-20030 |
ST182,184 OD=9.989-9.998,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45856-20040 |
ST182,184 OD=9.993-9.998,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-20010 |
AT180,ST18# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-20330 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45870-20270 |
AT180,ST184..RHD |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-20010 |
AT180,ST182,184 |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 90109-06162 |
AT180,ST182,184 |
1 | ||
| 90109-06168 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45880B - SCREW(FOR STEERING TILT LEVER) | ||||
| 93385-15014 |
AT180,ST18# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
AT180,ST18# RH |
1 | ||
| 45890-22090 |
AT180,ST18# LH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
AT180,ST18# RH |
1 | ||
| 45890-22090 |
AT180,ST18# LH |
1 | ||
| 45890D - SPRING, TENSION(FOR TILT STEERING PAWL ASSY) | ||||
| 90507-07003 |
AT180,ST182,184 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08013 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING),LH |
1 | ||
| 90507-10019 |
AT180,ST18# RH |
1 | ||
| 90507-08010 |
AT180,ST182,184 LH |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08013 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING),LH |
1 | ||
| 90507-10019 |
AT180,ST18# RH |
1 | ||
| 90507-08010 |
AT180,ST182,184 LH |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-20190 |
ST182,184 MARK 1,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-20230 |
ST182,184 MARK 5,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-20220 |
ST182,184 MARK 4,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-22040 |
AT180,ST182,184 MARK 2 |
1 | ||
| 45893-20200 |
ST182,184 MARK 2,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-20210 |
ST182,184 MARK 3,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-20190 |
AT180,ST18# MARK 1 |
1 | ||
| 45893-22070 |
AT180,ST182,184 MARK 5 |
1 | ||
| 45893-20250 |
ST182,184 MARK 7,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-22060 |
AT180,ST182,184 MARK 4 |
1 | ||
| 45893-20240 |
ST182,184 MARK 6,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-22030 |
AT180,ST182,184 MARK 1 |
1 | ||
| 45893-20210 |
AT180,ST18# MARK 3 |
1 | ||
| 45893-22050 |
AT180,ST182,184 MARK 3 |
1 | ||
| 45893-20250 |
AT180,ST18# MARK 7 |
1 | ||
| 45893-20240 |
AT180,ST18# MARK 6 |
1 | ||
| 45893-20230 |
AT180,ST18# MARK 5 |
1 | ||
| 45893-20200 |
AT180,ST18# MARK 2 |
1 | ||
| 45893-20220 |
AT180,ST18# MARK 4 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-20320 |
AT180,ST18# MARK G |
1 | ||
| 45893-20290 |
AT180,ST18# MARK D |
1 | ||
| 45893-20260 |
AT180,ST18# MARK A |
1 | ||
| 45893-20270 |
AT180,ST18# MARK B |
1 | ||
| 45893-20300 |
AT180,ST18# MARK E |
1 | ||
| 45893-20310 |
AT180,ST18# MARK F |
1 | ||
| 45893-20280 |
AT180,ST18# MARK C |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-20110 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45895-20090 |
AT180,ST184..RHD |
1 | ||
| 45895-20110 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AT180,ST18# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08911 | ||||
| 90154-50011 | ||||
| 90170-08008 | ||||
| 90179-06045 | ||||
| 90179-06158 | ||||
| 90179-10053 | ||||
| 90179-10065 | ||||
| 90201-06019 | ||||
| 90460-69004 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 96160-00800 | ||||
(8910- )

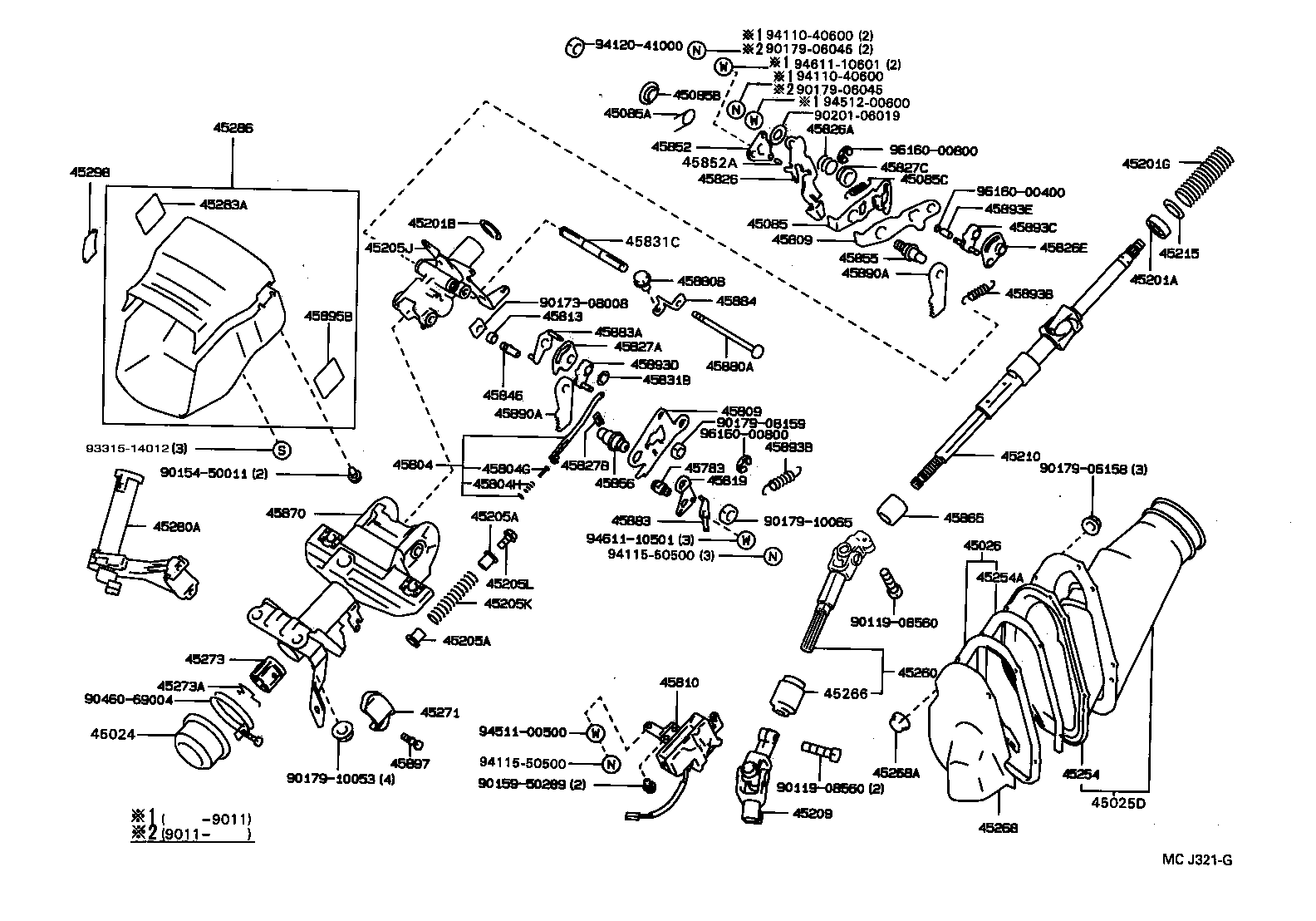

W(MEMORY & AUTOMATIC TILT STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45026-20110 |
AT180,ST18# |
1 | ||
| 45024-20110 |
AT180,ST18# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-20410 |
AT180,ST184,185..RHD |
1 | ||
| 45025-20280 |
AT180,ST184,185..RHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-20050 |
AT180,ST184,185..RHD |
1 | ||
| 45085 - PLATE SUB-ASSY, TILT MEMORY, NO.1 | ||||
| 45085-20010 |
ST18# |
1 | ||
| 45085A - SPRING, TORSION(FOR TILT MEMORY PLATE SUB-ASSY NO.1) | ||||
| 90508-12087 |
ST18# |
1 | ||
| 45085B - SPACER(FOR TILT MEMORY PLATE SUB-ASSY NO.1) | ||||
| 90561-10007 |
ST18# |
1 | ||
| 45085C - SPRING, TENSION(FOR TILT MEMORY PLATE SUB-ASSY NO.1) | ||||
| 90506-06012 |
ST18# |
1 | ||
| 90506-05004 |
ST18# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
AT180,ST18# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AT180,ST18# T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
AT180,ST18# |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-06043 |
ST182,184 (MEMORY & AUTOMATIC TILT STEERING) |
2 | ||
| 90386-06031 |
AT180,ST18# |
2 | ||
| 90386-06043 |
AT180,ST182,184 |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-06043 |
ST182,184 (MEMORY & AUTOMATIC TILT STEERING) |
2 | ||
| 90386-06031 |
AT180,ST18# |
2 | ||
| 90386-06043 |
AT180,ST182,184 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-20290 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45205-20260 |
AT180,ST184..RHD |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90504-25008 |
AT180,ST18# |
1 | ||
| 90504-25004 |
AT180,ST18# |
1 | ||
| 45205L - SCREW(FOR STEERING COLUMN TUBE) | ||||
| 90159-60429 |
AT180,ST18# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
AT180,ST18# |
1 | ||
| 45209-16010 |
AT180,ST18# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-20290 |
AT180,ST18# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
AT180,ST18# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20230 |
AT180,ST184,185..RHD |
1 | ||
| 45254-20190 |
AT180,ST184,185..RHD |
1 | ||
| 45254A - SHIELD, STEERING COLUMN HOLE, NO.2 | ||||
| 45254-20210 |
AT180,ST184,185..RHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-20320 |
AT180,ST184,185..RHD |
1 | ||
| 45260-20160 |
AT180,ST184,185..RHD |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
AT180,ST18# |
1 | ||
| 45268 - COVER, STEERING INTER SHAFT DUST SEAL | ||||
| 45268-20030 |
AT180,ST184,185..RHD |
1 | ||
| 45268A - NUT(FOR STEERING INTER SHAFT DUST SEAL COVER) | ||||
| 90179-06007 |
AT180,ST184,185..RHD |
4 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
AT180,ST18# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20010 |
AT180,ST18# |
1 | ||
| 45273-20011 |
AT180,ST18# |
1 | ||
| 45273A - RING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH) | ||||
| 90521-01006 |
AT180,ST18# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-20500 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) OR W(POWER WINDOW) |
1 | ||
| 45280-20490 |
AT180,ST182,184 |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
AT180,ST184..RHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2091203 |
AT180,ST184..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2092004 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45287-2092003 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2091204 |
AT180,ST184..RHD DARK BLUE,TRIM8# |
1 | ||
| 45287-2092004 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING & CRUISE CONTROL),DARK BLUE,TRIM8# |
1 | ||
| 45287-2092003 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING & CRUISE CONTROL),SHADOW GRAY,TRIM1# |
1 | ||
| 45287-2091207 |
AT180,ST184..RHD KHAKI,TRIM8# |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-2001004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 45298-2001003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 45783 - STOPPER, TILT STEERING, NO.1 | ||||
| 45783-20030 |
ST18# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-20090 |
ST18# |
1 | ||
| 45804G - PIN(FOR STEERING TILT LEVER) | ||||
| 90249-03015 |
ST18# |
1 | ||
| 45804H - SPRING, COMPRESSION(FOR STEERING TILT LEVER) | ||||
| 90501-08124 |
ST18# |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-20080 |
ST18# LH |
1 | ||
| 45809-20070 |
ST18# RH |
1 | ||
| 45809-32020 |
ST18# LH |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-20080 |
ST18# LH |
1 | ||
| 45809-20070 |
ST18# RH |
1 | ||
| 45809-32020 |
ST18# LH |
1 | ||
| 45810 - GEAR ASSY, TILT STEERING, W/MOTOR | ||||
| 45810-20020 |
ST18# |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20100 |
ST18# OD=12.75-12.85 |
1 | ||
| 45813-20120 |
ST18# OD=12.35-12.45 |
1 | ||
| 45813-20160 |
ST18# OD=11.55-11.65 |
1 | ||
| 45813-20150 |
ST18# OD=11.75-11.85 |
1 | ||
| 45813-20140 |
ST18# OD=11.95-12.05 |
1 | ||
| 45813-20170 |
ST18# OD=11.25-11.35 |
1 | ||
| 45813-20110 |
ST18# OD=12.55-12.65 |
1 | ||
| 45813-20130 |
ST18# OD=12.15-12.25 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22060 |
AT180,ST182,184 |
2 | ||
| 45819-20070 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45819-22040 |
AT180,ST182,184 |
2 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-20140 |
ST18# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90508-11008 |
ST18# |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-22050 |
AT180,ST18# |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
AT180,ST182,184 |
1 | ||
| 45827-20050 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45827B - LEVER, STEERING TILT SUB, NO.2 | ||||
| 45827-20060 |
ST18# |
1 | ||
| 45827C - LEVER, STEERING TILT SUB, NO.3 | ||||
| 45827-20070 |
ST18# |
1 | ||
| 45831B - SPACER(FOR TILT LEVER LOCK SHAFT) | ||||
| 90560-10062 |
AT180,ST18# |
1 | ||
| 45831C - SHAFT, TILT LEVER LOCK | ||||
| 45831-20030 |
AT180,ST18# |
1 | ||
| 45846 - BOLT, TILT MEMORY | ||||
| 45846-20030 |
ST18# |
1 | ||
| 45852 - PLATE, TILT MEMORY, NO.2 | ||||
| 45852-20010 |
ST18# |
1 | ||
| 45852A - COLLAR(FOR TILT MEMORY PLATE NO.2) | ||||
| 90386-08042 |
ST18# |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-22010 |
ST182,184 OD=9.989-9.998,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45856-22010 |
AT180,ST182,184 OD=9.989-9.998 |
1 | ||
| 45855-22020 |
ST182,184 OD=9.998-10.007,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
AT180,ST182,184 OD=9.989-9.998 |
1 | ||
| 45856-20030 |
ST182,184 OD=9.989-9.998,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45856-20040 |
ST182,184 OD=9.993-9.998,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-20010 |
AT180,ST18# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-20330 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45870-20270 |
AT180,ST184..RHD |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 90109-06162 |
AT180,ST182,184 |
1 | ||
| 90109-06168 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45880B - SCREW(FOR STEERING TILT LEVER) | ||||
| 93385-15014 |
AT180,ST18# |
1 | ||
| 45883 - LEVER, TILT RELEASE | ||||
| 45883-20010 |
ST18# |
1 | ||
| 45883-20011 |
ST18# |
1 | ||
| 45883A - LEVER, TILT RELEASE, NO.2 | ||||
| 45883-20020 |
ST18# |
1 | ||
| 45884 - BRACKET, TILT LEVER | ||||
| 45884-20010 |
ST18# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
AT180,ST18# RH |
1 | ||
| 45890-22090 |
AT180,ST18# LH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
AT180,ST18# RH |
1 | ||
| 45890-22090 |
AT180,ST18# LH |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08013 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING),LH |
1 | ||
| 90507-10019 |
AT180,ST18# RH |
1 | ||
| 90507-08010 |
AT180,ST182,184 LH |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08013 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING),LH |
1 | ||
| 90507-10019 |
AT180,ST18# RH |
1 | ||
| 90507-08010 |
AT180,ST182,184 LH |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-20190 |
ST182,184 MARK 1,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-20230 |
ST182,184 MARK 5,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-20220 |
ST182,184 MARK 4,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-22040 |
AT180,ST182,184 MARK 2 |
1 | ||
| 45893-20200 |
ST182,184 MARK 2,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-20210 |
ST182,184 MARK 3,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-20190 |
AT180,ST18# MARK 1 |
1 | ||
| 45893-22070 |
AT180,ST182,184 MARK 5 |
1 | ||
| 45893-20250 |
ST182,184 MARK 7,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-22060 |
AT180,ST182,184 MARK 4 |
1 | ||
| 45893-20240 |
ST182,184 MARK 6,W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45893-22030 |
AT180,ST182,184 MARK 1 |
1 | ||
| 45893-20210 |
AT180,ST18# MARK 3 |
1 | ||
| 45893-22050 |
AT180,ST182,184 MARK 3 |
1 | ||
| 45893-20250 |
AT180,ST18# MARK 7 |
1 | ||
| 45893-20240 |
AT180,ST18# MARK 6 |
1 | ||
| 45893-20230 |
AT180,ST18# MARK 5 |
1 | ||
| 45893-20200 |
AT180,ST18# MARK 2 |
1 | ||
| 45893-20220 |
AT180,ST18# MARK 4 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-20320 |
AT180,ST18# MARK G |
1 | ||
| 45893-20290 |
AT180,ST18# MARK D |
1 | ||
| 45893-20260 |
AT180,ST18# MARK A |
1 | ||
| 45893-20270 |
AT180,ST18# MARK B |
1 | ||
| 45893-20300 |
AT180,ST18# MARK E |
1 | ||
| 45893-20310 |
AT180,ST18# MARK F |
1 | ||
| 45893-20280 |
AT180,ST18# MARK C |
1 | ||
| 45893E - COLLAR(FOR TILT STEERING STOPPER) | ||||
| 90386-05010 |
ST18# |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-20110 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45895-20090 |
AT180,ST184..RHD |
1 | ||
| 45895-20110 |
ST184 W(MEMORY & AUTOMATIC TILT STEERING) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AT180,ST18# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90154-50011 | ||||
| 90159-50289 | ||||
| 90160-00800 | ||||
| 90173-08008 | ||||
| 90179-06045 | ||||
| 90179-06158 | ||||
| 90179-08159 | ||||
| 90179-10053 | ||||
| 90179-10065 | ||||
| 90201-06019 | ||||
| 90460-69004 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94115-50500 | ||||
| 94120-41000 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94611-10501 | ||||
| 94611-10601 | ||||
| 96160-00400 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
