ST184R-BLMSKQ (1989)
Toyota Celica

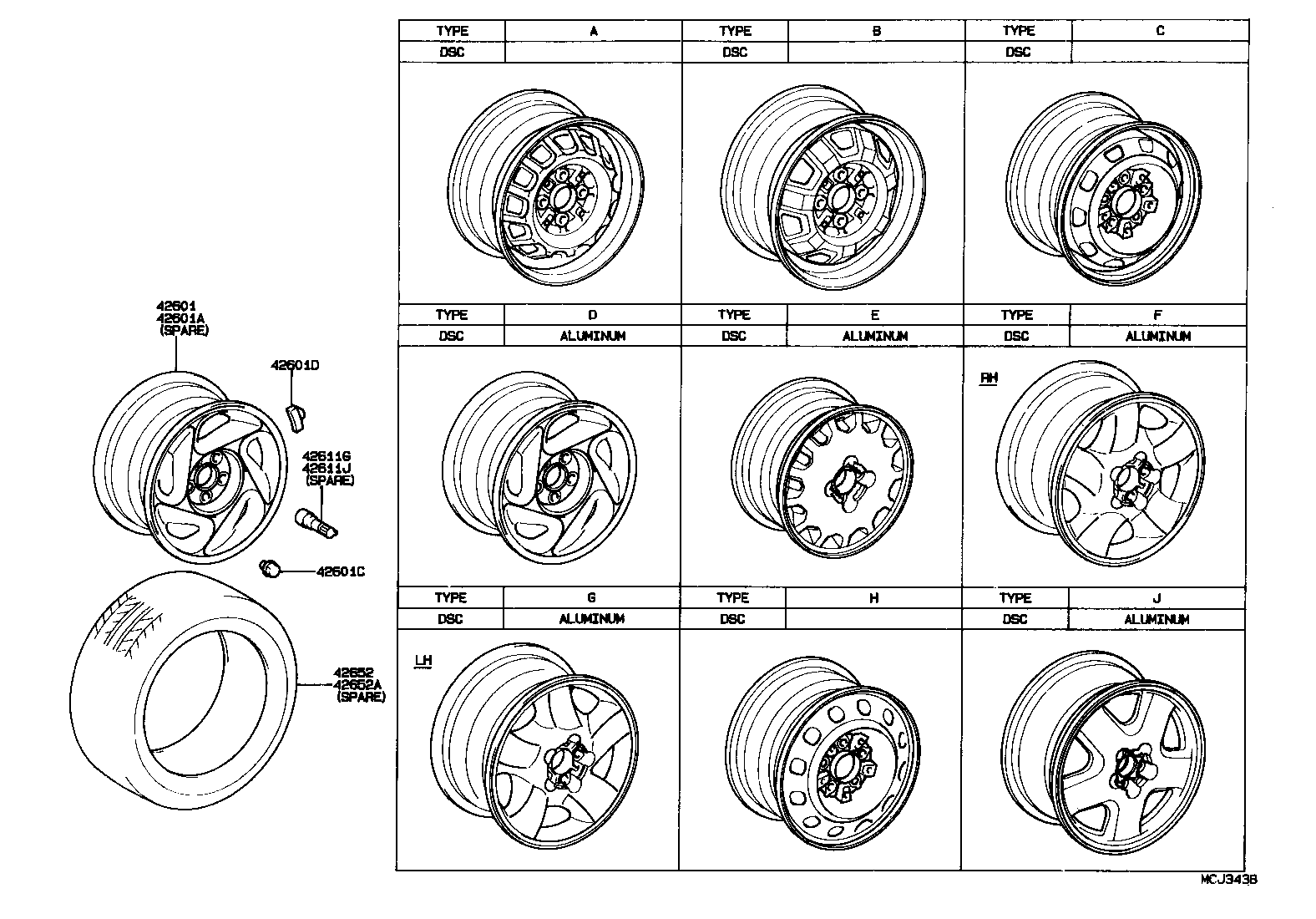

ILLUST NO. 1 OF 2(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-20790 |
ST184..NOB 14X6JJ,TYPE D,ALUMINUM |
4 | ||
| 42611-2066001 |
ST184..NOB 14X6JJ,OFFSET 45, #,TYPE C,BLACK |
4 | ||
| 42611-20850 |
ST184..NOB 15X6JJ,TYPE J,ALUMINUM |
4 | ||
| 42611-2083001 |
ST184..NOB 15X6JJ,TYPE H,BLACK |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-20790 |
ST184..NOB 14X6JJ,TYPE D,ALUMINUM |
1 | ||
| 42611-2066001 |
ST184..NOB 14X6JJ,OFFSET 45, #,TYPE C,BLACK |
1 | ||
| 42611-20850 |
ST184..NOB 15X6JJ,TYPE J,ALUMINUM |
1 | ||
| 42611-2083001 |
ST184..NOB 15X6JJ,TYPE H,BLACK |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
ST184..NOB |
20 | ||
| 90942-01062 |
ST184..NOB W(ALUMINUM WHEEL) |
20 | ||
| 90942-01021 |
AT180,ST184..NOB |
20 | ||
| 90942-01084 |
ST184..NOB W(ALUMINUM WHEEL) |
20 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03148 |
ST184..NOB 20G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03146 |
ST184..NOB 10G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03155 |
ST184..NOB 55G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03147 |
ST184..NOB 15G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03152 |
ST184..NOB 40G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03208 |
ST184..NOB 7.5G,T=6.1,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03210 |
ST184..NOB 17.5G,T=8.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03149 |
ST184..NOB 25G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03157 |
ST184..NOB 65G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03151 |
ST184..NOB 35G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03159 |
ST184..NOB 75G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03160 |
ST184..NOB 80G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03154 |
ST184..NOB 50G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03156 |
ST184..NOB 60G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03209 |
ST184..NOB 12.5G,T=7.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03213 |
ST184..NOB 32.5G,T=8.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03167 |
ST184..NOB 5G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03150 |
ST184..NOB 30G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03214 |
ST184..NOB 37.5G,T=8.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03158 |
ST184..NOB 70G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03153 |
ST184..NOB 45G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03212 |
ST184..NOB 27.5G,T=8.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03211 |
ST184..NOB 22.5G,T=8.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03022 |
AT180,ST184..NOB 40G,T=9.5 |
1 | ||
| 90942-03029 |
AT180,ST184..NOB 70G,T=9.5 |
1 | ||
| 90942-03025 |
AT180,ST184..NOB 50G,T=9.5 |
1 | ||
| 90942-03031 |
AT180,ST184..NOB 80G,T=9.5 |
1 | ||
| 90942-03017 |
AT180,ST184..NOB 20G,T=8 |
1 | ||
| 90942-03100 |
AT180,ST184..NOB 35G |
1 | ||
| 90942-03102 |
AT180,ST184..NOB 55G |
1 | ||
| 90942-03099 |
AT180,ST184..NOB 25G |
1 | ||
| 90942-03109 |
AT180,ST184..NOB 75G |
1 | ||
| 90942-03041 |
AT180,ST184..NOB 10G,T=7.5 |
1 | ||
| 90942-03020 |
AT180,ST184..NOB 30G,T=10 |
1 | ||
| 90942-03027 |
AT180,ST184..NOB 60G,T=9.5 |
1 | ||
| 90942-03101 |
AT180,ST184..NOB 45G |
1 | ||
| 90942-03098 |
AT180,ST184..NOB 15G |
1 | ||
| 90942-03108 |
AT180,ST184..NOB 65G |
1 | ||
| 90942-03161 |
AT180,ST184..NOB 5G |
1 | ||
| 90942-03207 |
AT180,ST184..NOB 37.5G,T=9.5 |
1 | ||
| 90942-03195 |
AT180,ST184..NOB 12.5G,T=7.5 |
1 | ||
| 90942-03206 |
AT180,ST184..NOB 32.5G,T=9.5 |
1 | ||
| 90942-03203 |
AT180,ST184..NOB 17.5G,T=9.5 |
1 | ||
| 90942-03204 |
AT180,ST184..NOB 22.5G,T=9.5 |
1 | ||
| 90942-03205 |
AT180,ST184..NOB 27.5G,T=9.5 |
1 | ||
| 90942-03146 |
ST184..NOB 10G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03194 |
AT180,ST184..NOB 7.5G,T=7.5 |
1 | ||
| 90942-03147 |
ST184..NOB 15G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03153 |
ST184..NOB 45G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03150 |
ST184..NOB 30G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03151 |
ST184..NOB 35G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03148 |
ST184..NOB 20G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03154 |
ST184..NOB 50G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03149 |
ST184..NOB 25G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03156 |
ST184..NOB 60G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03158 |
ST184..NOB 70G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03152 |
ST184..NOB 40G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03155 |
ST184..NOB 55G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03157 |
ST184..NOB 65G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03160 |
ST184..NOB 80G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03159 |
ST184..NOB 75G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03210 |
ST184..NOB 17.5G,T=8.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03212 |
ST184..NOB 27.5G,T=8.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03209 |
ST184..NOB 12.5G,T=7.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03208 |
ST184..NOB 7.5G,T=6.1,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03213 |
ST184..NOB 32.5G,T=8.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03211 |
ST184..NOB 22.5G,T=8.0,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03167 |
ST184..NOB 5G,W(ALUMINUM WHEEL) |
1 | ||
| 90942-03214 |
ST184..NOB 37.5G,T=8.0,W(ALUMINUM WHEEL) |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AT180,ST18# |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
AT180,ST18# |
1 | ||
| 42652 - TIRE | ||||
| 42652-20490 |
ST184..NOB 185/65R14 85H |
4 | ||
| 42652-20860 |
ST184..NOB 205/55R15 87V |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-20860 |
ST184..NOB 205/55R15 87V |
1 | ||
| 42652-20490 |
ST184..NOB 185/65R14 85H |
1 | ||

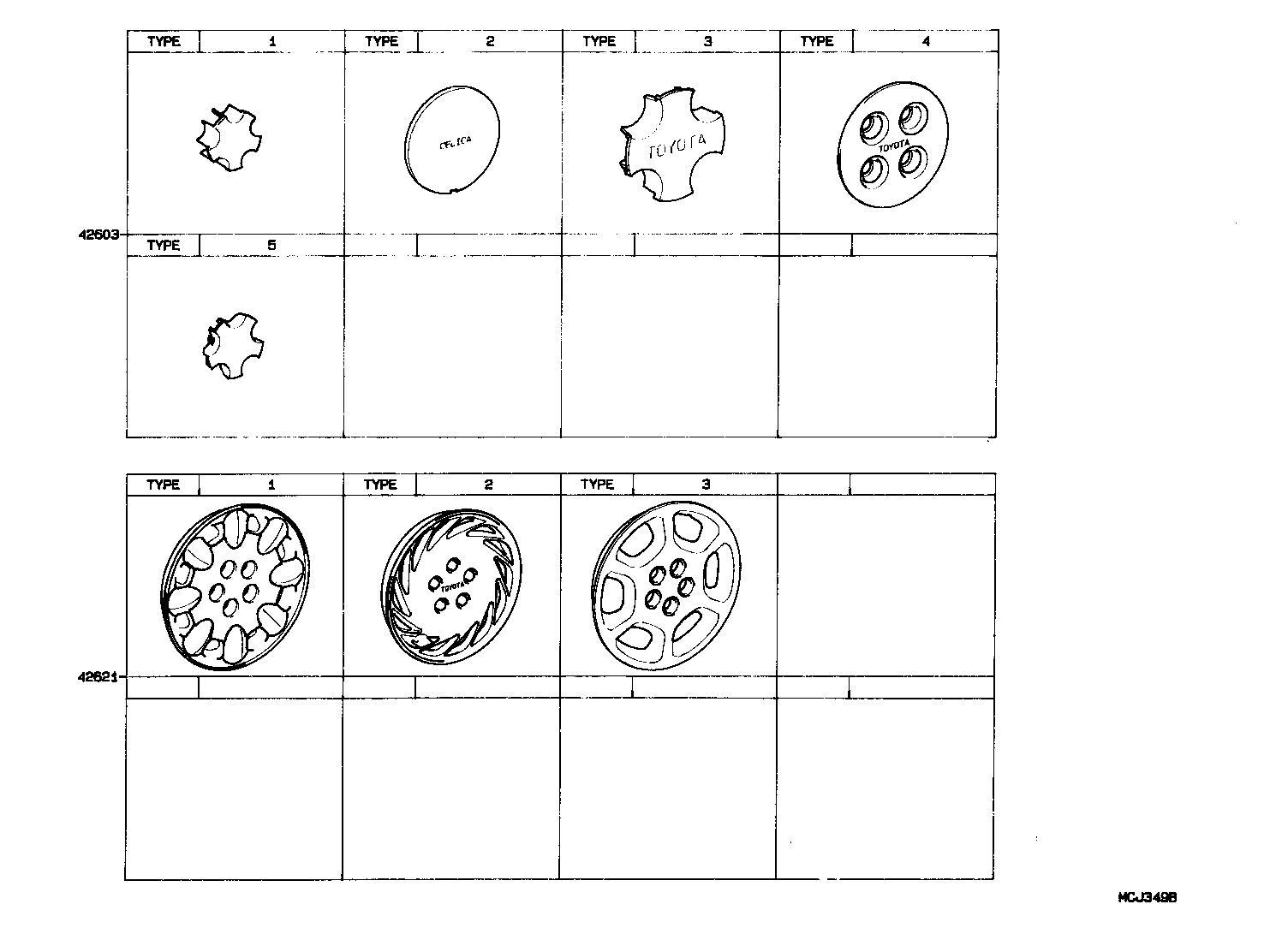

ILLUST NO. 2 OF 2(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-20340 |
ST182,184..NOB |
4 | ||
| 42603-20410 |
ST182,184..NOB |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-20230 |
ST184..NOB TYPE 3 |
8 | ||
| 42602-20130 |
ST184..NOB |
4 | ||
