ST184R-BLMSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )5SFE

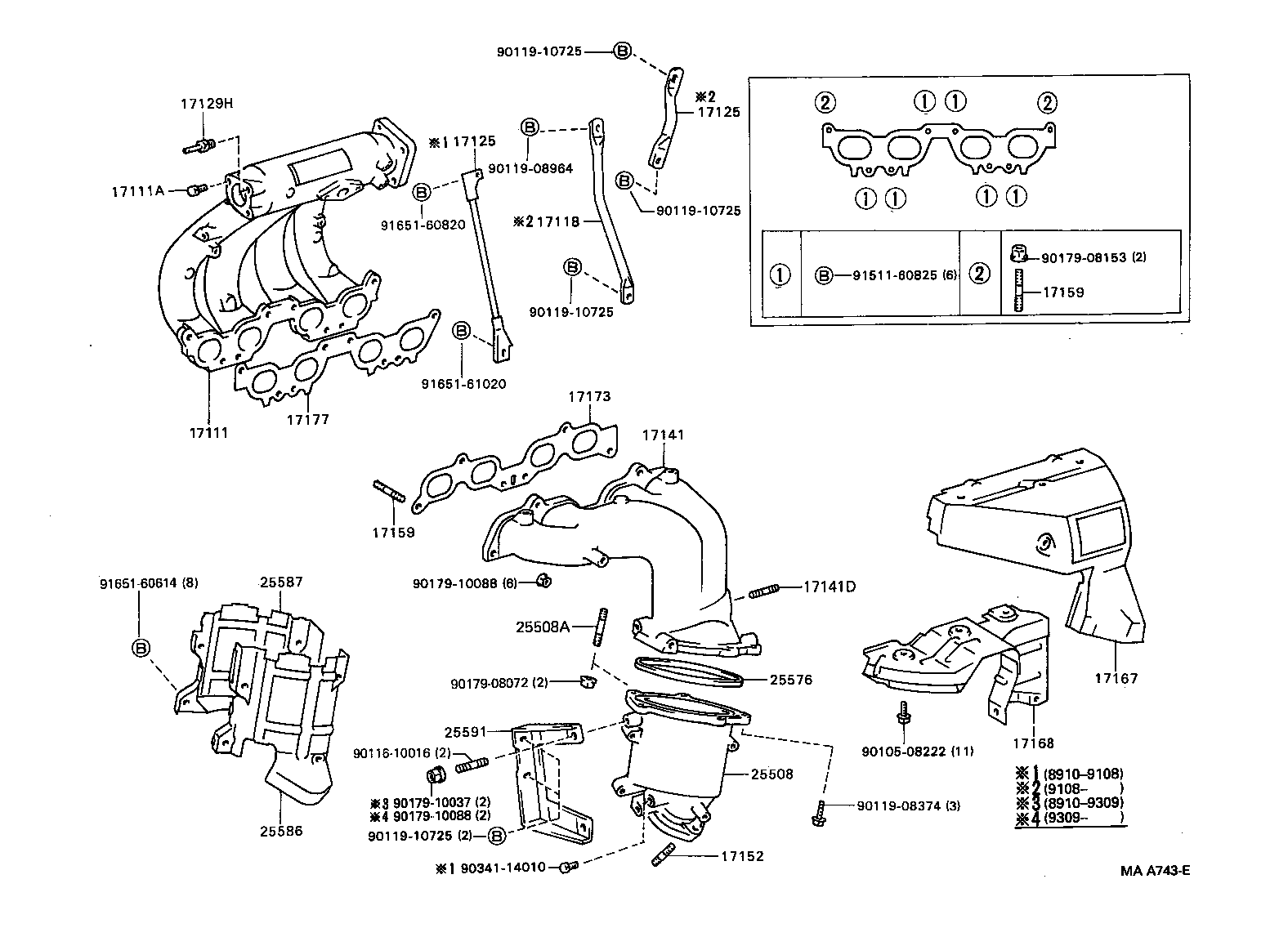

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-74071 |
5SFE..ST184 |
1 | ||
| 17101-74180 |
5SFE..ST184 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-51006 |
5SFE..ST184 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-74200 |
5SFE..ST184 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-74090 |
5SFE..ST184 |
1 | ||
| 17125-88361 |
5SFE..ST184 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-74090 |
5SFE..ST184 |
1 | ||
| 17125-88361 |
5SFE..ST184 |
1 | ||
| 17129H - UNION, NO.4 | ||||
| 90404-51026 |
5SFE..ST184 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-74041 |
5SFE..ST184 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08253 |
5SFE..ST184 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
3SGE,5SFE..ST182,184 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10063 |
5SFE..ST184 EXHAUST MANIFOLD |
6 | ||
| 92122-60822 |
5SFE..ST184 INTAKE MANIFOLD |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10063 |
5SFE..ST184 EXHAUST MANIFOLD |
6 | ||
| 92122-60822 |
5SFE..ST184 INTAKE MANIFOLD |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-74140 |
5SFE..ST184 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-74020 |
5SFE..ST184 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-74040 |
5SFE..ST184 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-74041 |
5SFE..ST184 |
1 | ||
| 17177-74070 |
5SFE..ST184 |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25508-74090 |
5SFE..ST184 |
1 | ||
| 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) | ||||
| 90116-08171 |
5SFE..ST184 |
2 | ||
| 25576 - GASKET, MANIFOLD CONVERTER | ||||
| 25576-74030 |
3SGTE,5SFE..ST184,185 |
1 | ||
| 25576-74020 |
3SGTE,5SFE..ST184,185 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-74011 |
5SFE..ST184 |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-74011 |
5SFE..ST184 |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-74011 |
5SFE..ST184 |
1 | ||
| 25591-74010 |
5SFE..ST184 |
1 | ||
| Common parts | ||||
| 90105-08222 | ||||
| 90116-10016 | ||||
| 90119-08374 | ||||
| 90119-08964 | ||||
| 90119-10725 | ||||
| 90179-08072 | ||||
| 90179-08153 | ||||
| 90179-10037 | ||||
| 90179-10088 | ||||
| 90341-14010 | ||||
| 91511-60825 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 91651-61020 | ||||
