ST184R-BCPSKQ (1989)
Toyota Celica
ILLUST NO. 2 OF 3(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20090 |
ST184;ST185..TBO4W |
1 | ||
| 88412-2B030 |
ST184,185 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-20240 |
ST184,185 |
1 | ||
| 88411-2B090 |
ST18# |
1 | ||
| 88411-2B010 |
ST18# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20730 |
ST184;ST185..TBO4W |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
AT180,ST18# |
1 | ||
| 88335-14020 |
ST184;ST185..TBO4W 3PIECE SET |
1 | ||
| 90099-01554 |
ST184;ST185..TBO4W T=0.3 |
1 | ||
| 90099-01555 |
ST184;ST185..TBO4W T=0.5 |
1 | ||
| 90099-01553 |
ST184;ST185..TBO4W T=0.1 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
AT180,ST18# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-20600 |
ST184;ST185..TBO4W |
1 | ||
| 88410-20500 |
ST184,185 |
1 | ||
| 88410-20600 |
ST184 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||

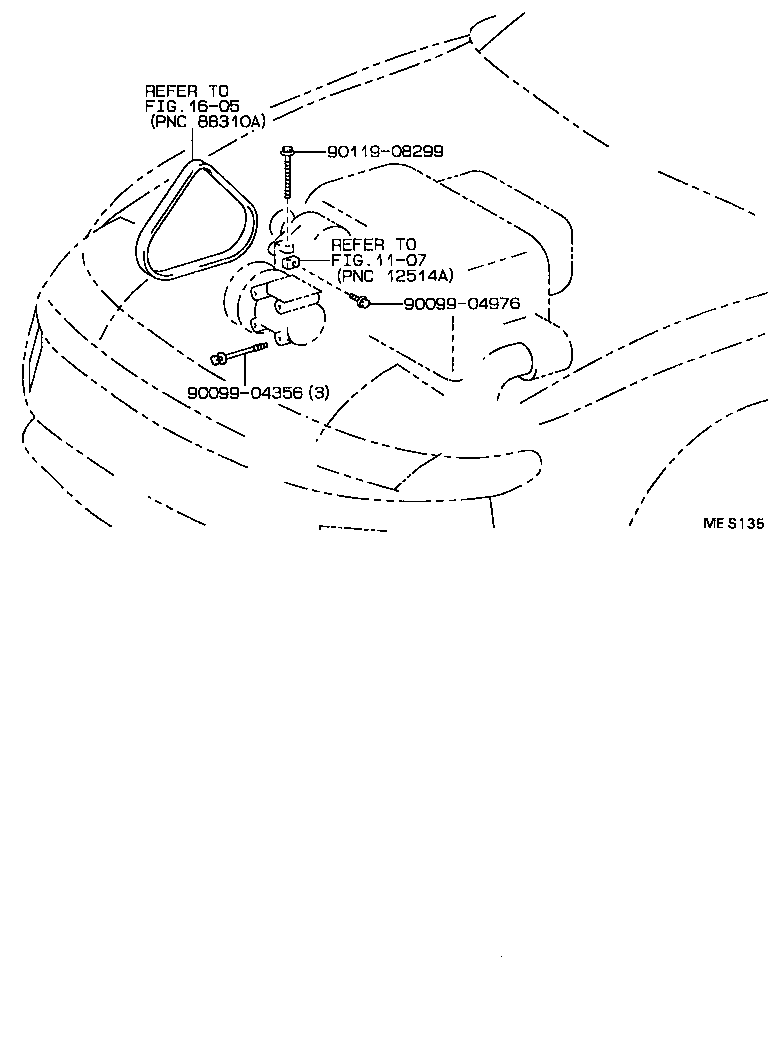

ILLUST NO. 1 OF 3(8910- )ST184
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04356 | ||||
| 90099-04976 | ||||
| 90119-08299 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1605 | ||||

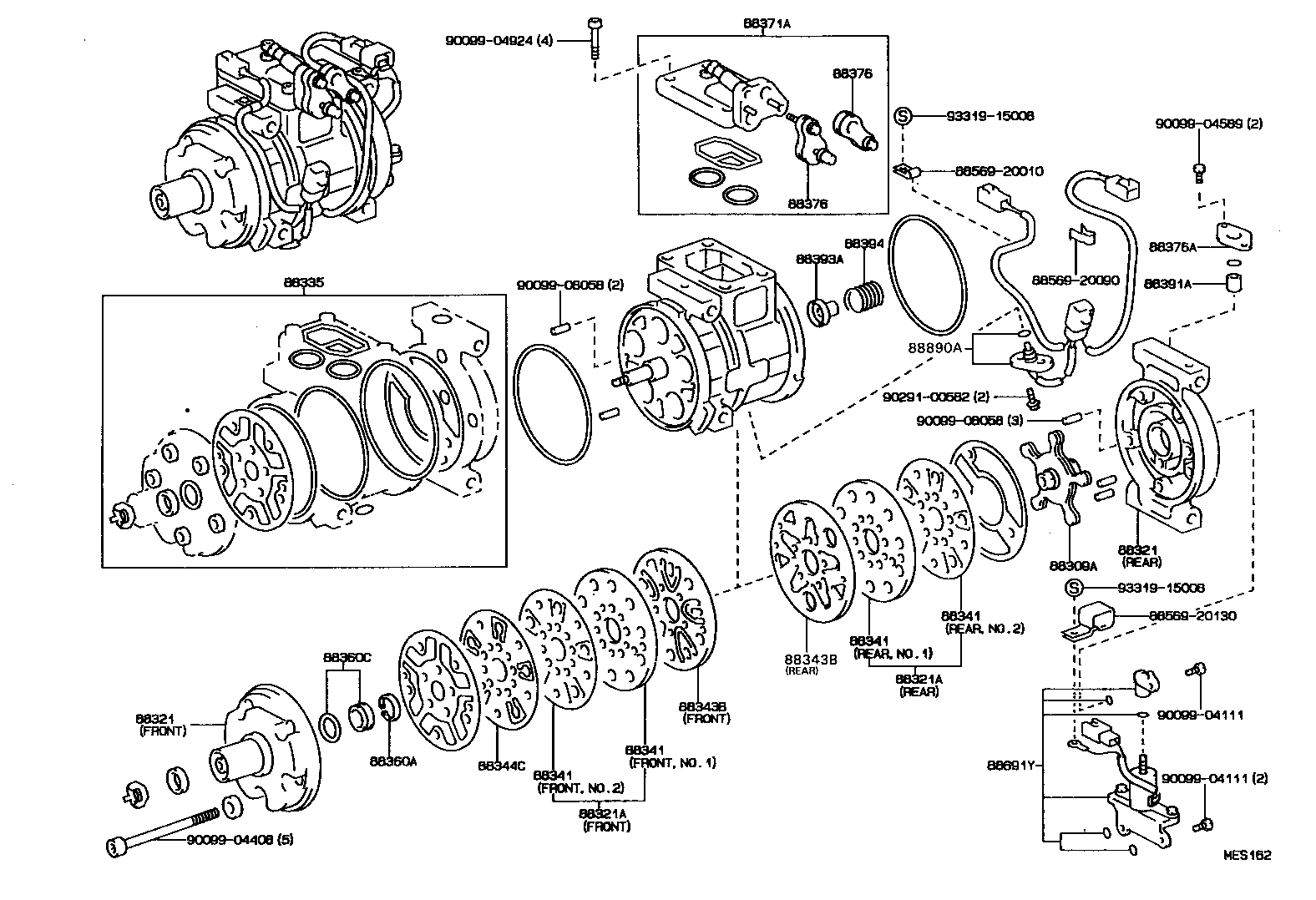

ILLUST NO. 3 OF 3(8910-9008)ST185 ; (8910- )ST184
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88309A - PUMP SUB-ASSY, COMPRESSOR | ||||
| 88309-20010 |
ST184,185 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32030 |
ST184,185 REAR |
1 | ||
| 88321-28010 |
ST184 FRONT |
1 | ||
| 88322-32030 |
ST184 REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32030 |
ST184,185 REAR |
1 | ||
| 88321-28010 |
ST184 FRONT |
1 | ||
| 88322-32030 |
ST184 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-14020 |
AT180,ST18# FRONT |
1 | ||
| 88306-20050 |
ST184 REAR |
1 | ||
| 88305-14020 |
AT180,ST184 FRONT |
1 | ||
| 88306-20050 |
ST184,185 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-14020 |
AT180,ST18# FRONT |
1 | ||
| 88306-20050 |
ST184 REAR |
1 | ||
| 88305-14020 |
AT180,ST184 FRONT |
1 | ||
| 88306-20050 |
ST184,185 REAR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-32020 |
ST184,185 |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-14030 |
ST184 FRONT,NO.1 |
1 | ||
| 88341-14040 |
ST184 FRONT,NO.2 |
1 | ||
| 88342-20020 |
ST184 REAR,NO.2 |
1 | ||
| 88342-20010 |
ST184 REAR,NO.1 |
1 | ||
| 88341-14030 |
ST184 FRONT,NO.1 |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-14030 |
ST184 FRONT,NO.1 |
1 | ||
| 88341-14040 |
ST184 FRONT,NO.2 |
1 | ||
| 88342-20020 |
ST184 REAR,NO.2 |
1 | ||
| 88342-20010 |
ST184 REAR,NO.1 |
1 | ||
| 88341-14030 |
ST184 FRONT,NO.1 |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-14030 |
ST184 FRONT,NO.1 |
1 | ||
| 88341-14040 |
ST184 FRONT,NO.2 |
1 | ||
| 88342-20020 |
ST184 REAR,NO.2 |
1 | ||
| 88342-20010 |
ST184 REAR,NO.1 |
1 | ||
| 88341-14030 |
ST184 FRONT,NO.1 |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-14030 |
ST184 FRONT,NO.1 |
1 | ||
| 88341-14040 |
ST184 FRONT,NO.2 |
1 | ||
| 88342-20020 |
ST184 REAR,NO.2 |
1 | ||
| 88342-20010 |
ST184 REAR,NO.1 |
1 | ||
| 88341-14030 |
ST184 FRONT,NO.1 |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-32010 |
ST184,185 REAR |
1 | ||
| 88343-14020 |
ST184,185 FRONT |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-32010 |
ST184,185 REAR |
1 | ||
| 88343-14020 |
ST184,185 FRONT |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14022 |
AT180,ST184 |
1 | ||
| 88344-14022 |
AT180,ST184,185 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AT180,ST18# |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
AT180,ST18# |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-20290 |
ST184,185 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
AT180,ST18# DISCHARGE |
1 | ||
| 88376-17020 |
AT180,ST18# SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
AT180,ST18# DISCHARGE |
1 | ||
| 88376-17020 |
AT180,ST18# SUCTION |
1 | ||
| 88376A - CAP, COMPRESSOR | ||||
| 88376-32010 |
ST184,185 |
1 | ||
| 88391A - VALVE, FLOAT | ||||
| 88391-32010 |
ST184,185 |
1 | ||
| 88393A - PLATE, STOPPER | ||||
| 88393-32010 |
ST184,185 |
1 | ||
| 88394 - SPRING, COMPRESSOR | ||||
| 88394-32010 |
ST184,185 |
1 | ||
| 88691Y - VALVE, MAGNET | ||||
| 88691-20010 |
ST184,185 |
1 | ||
| 88890A - PICK UP, ASSY | ||||
| 88336-20130 |
ST184,185 |
1 | ||
| Common parts | ||||
| 88569-20010 | ||||
| 88569-20090 | ||||
| 88569-20130 | ||||
| 90099-04111 | ||||
| 90099-04408 | ||||
| 90099-04589 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
| 90291-00582 | ||||
| 93319-15008 | ||||
