ST184R-BCPSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8910-9108)ST184

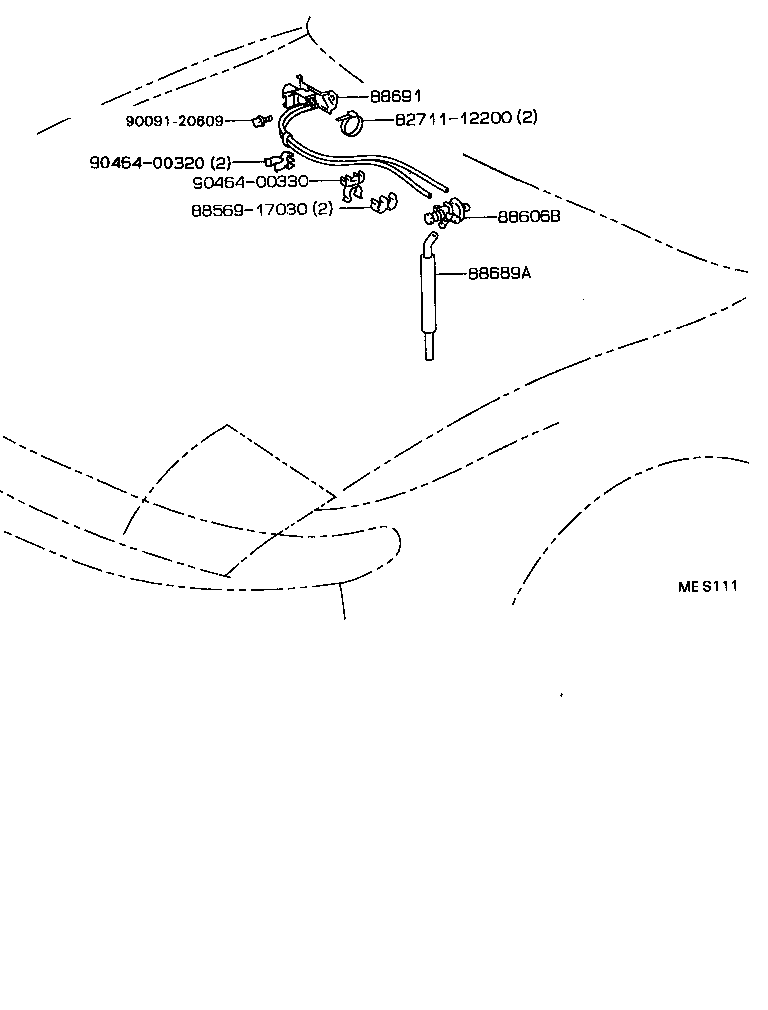

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88606B - DIAPHRAGM SUB-ASSY, COOLER | ||||
| 88606-20250 |
ST184 |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-32050 |
ST184 |
1 | ||
| 88689-20760 |
ST184 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 17600-74120 |
ST184 |
1 | ||
| 88690-2B340 |
ST184 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88569-17030 | ||||
| 90091-20609 | ||||
| 90464-00320 | ||||
| 90464-00330 | ||||
