ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )ST184,185

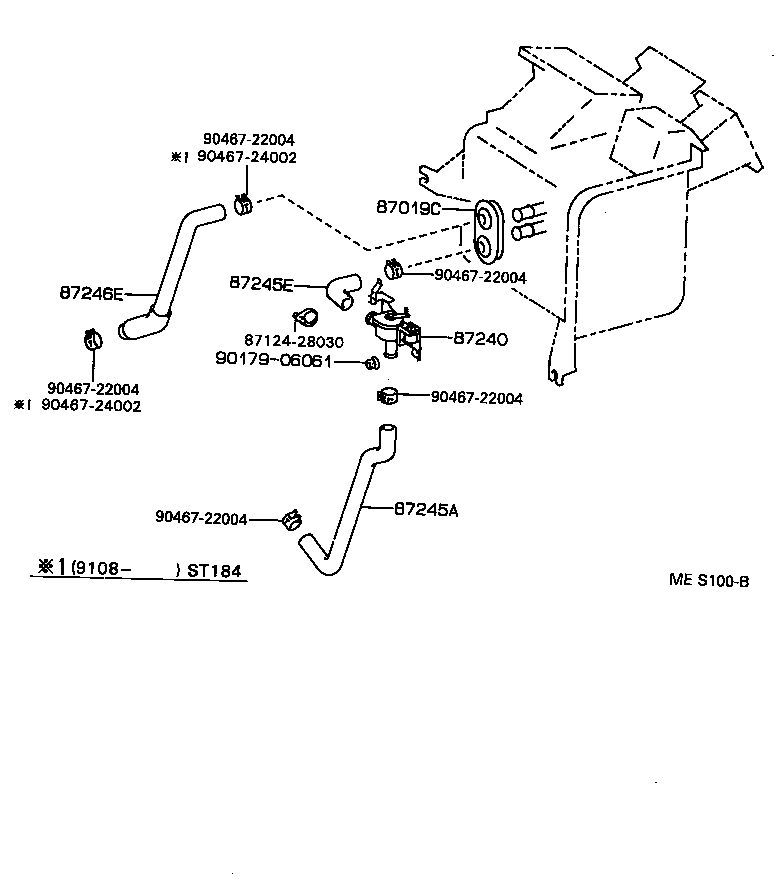

Click highlighted areas on diagram

diagram 87019C 8712428030 87240 87245A 87245E 87246E 9017906061 9046722004 9046722004 9046722004 9046722004 9046722004 9046724002 9046724002
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01405

AT180,ST184,185..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-20350

AT180,ST184,185..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B450

ST184,185

 1
87245-2B450

ST184;ST185..TBO4W

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

AT180,ST184,185..RHD

*H,L=60

 1
87245-2B510

AT180,ST184,185..RHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-2B570

ST184

 1
87245-2B550

ST184,185

 1
Common parts
87124-28030
90179-06061
90467-22004
90467-24002
