ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

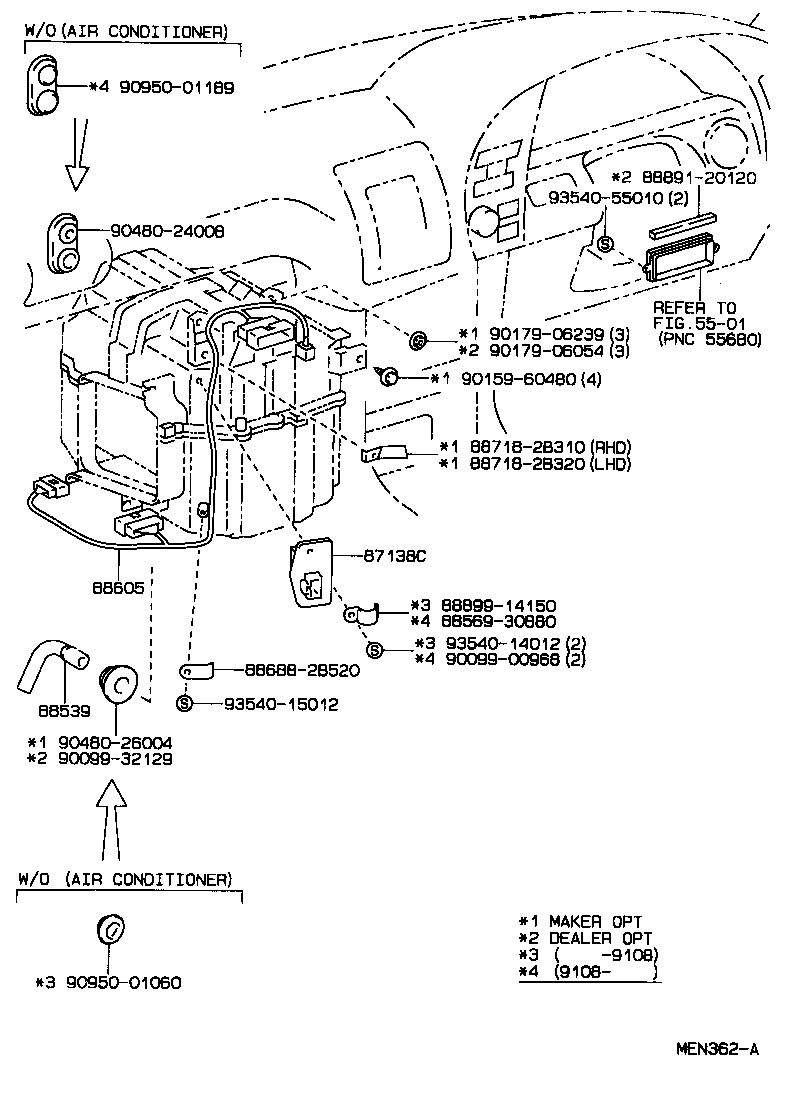

ILLUST NO. 2 OF 2(8910- )ST18# ; (9108- )AT180..LHD

Click highlighted areas on diagram

ST182=W(HEATER)

diagram 5501 87138C 88539 8856930880 88605 886882B520 887182B310 887182B320 8889120120 8889914150 9009900968 9009932129 9015960480 9017906054 9017906239 9048024008 9048026004 9095001060 9095001189 9354014012 9354015012 9354055010
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-20180

AT180,ST184,185

 1
87138-20180

AT180,ST184,185..RHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110

AT180,ST18#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2B550

ST184,185

 1
88605-2D091

ST18#

 1
Common parts
88569-30880
88688-2B520
88718-2B310
88718-2B320
88891-20120
88899-14150
90099-00968
90099-32129
90159-60480
90179-06054
90179-06239
90480-24008
90480-26004
90950-01060
90950-01189
93540-14012
93540-15012
93540-55010
Linked diagrams
5501

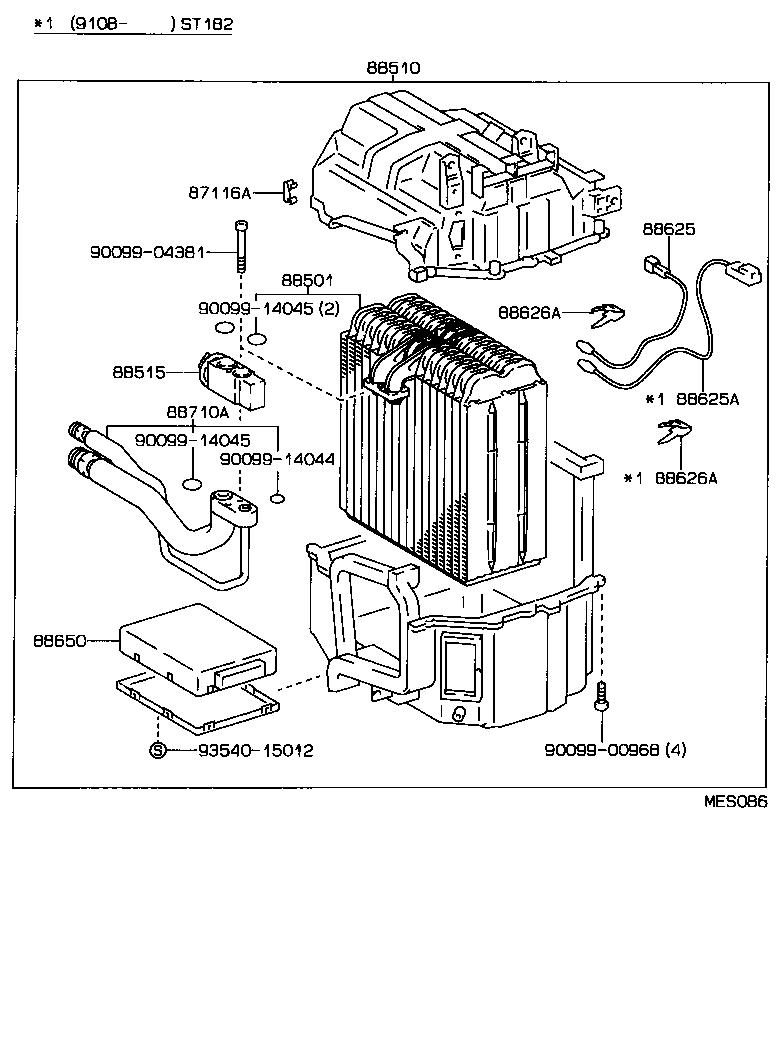

ILLUST NO. 1 OF 2(8910- )ST18# ; (9108- )AT180..LHD

Click highlighted areas on diagram

ST182=W(HEATER)

diagram 87116A 88501 88510 88515 88625 88625A 88626A 88626A 88650 88710A 9009900968 9009904381 9009914044 9009914045 9009914045 9354015012
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

ST182;AT180,ST184,185..RHD

 4
87116-14010

AT180,ST182,184

 4
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20260

AT180,ST184,185..RHD

 1
88510 - UNIT ASSY, COOLER
88510-2B060

ST184,185

 1
88510-2B320

ST184

 1
88515 - VALVE, COOLER EXPANSION
88515-14060

AT180,ST18#

 1
88515-14061

AT180,ST18#

 1
88515-14061

ST182,184

 1
88515-14062

AT180,ST18#

 1
88515-14061

ST184;ST185..TBO4W

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20270

AT180,ST18#

 1
88625-60050

ST184;ST185..TBO4W

 1
88625A - THERMISTOR, COOLER NO.2
88625-20340

ST182,184

 1
88626A - HOLDER, THERMISTOR
88626-28010

AT180,ST18#

 1
88626-28010

AT180,ST184,185..RHD

 1
88626A - HOLDER, THERMISTOR
88626-28010

AT180,ST18#

 1
88626-28010

AT180,ST184,185..RHD

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-2B140

ST18#

 1
88650-20660

ST184,185

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20190

AT180,ST184,185..RHD

 1
Common parts
90099-00968
90099-04381
90099-14044
90099-14045
93540-15012
