ST184R-BCPSKQ (1989)
Toyota Celica
ILLUST NO. 2 OF 2(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2031001 |
AT180,ST184,185..RHD BLACK,040 ,181 ,182 ,202 ,3E5 ,3H4 ,8G7 |
2 | ||
| 85035-2031008 |
ST185..TBO4W;AT180,ST184..RHD SUPER WHITE,040 |
2 | ||
| 85035-2031001 |
AT180,ST184,185..RHD BLACK,040 ,182 ,202 ,3E5 ,3H4 ,8G7 |
2 | ||
| 85035-2031002 |
ST185..TBO4W;AT180,ST184..RHD SUPER RED,3E5 |
2 | ||
| 85035-2031001 |
AT180,ST184..RHD BLACK,202 ,3J8 ,8J1 |
2 | ||
| 85035-20310H0 |
ST185..TBO4W;AT180,ST184..RHD MEDIUM TURQUOISE M.,749 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2031001 |
AT180,ST184,185..RHD BLACK,040 ,181 ,182 ,202 ,3E5 ,3H4 ,8G7 |
2 | ||
| 85035-2031008 |
ST185..TBO4W;AT180,ST184..RHD SUPER WHITE,040 |
2 | ||
| 85035-2031001 |
AT180,ST184,185..RHD BLACK,040 ,182 ,202 ,3E5 ,3H4 ,8G7 |
2 | ||
| 85035-2031002 |
ST185..TBO4W;AT180,ST184..RHD SUPER RED,3E5 |
2 | ||
| 85035-2031001 |
AT180,ST184..RHD BLACK,202 ,3J8 ,8J1 |
2 | ||
| 85035-20310H0 |
ST185..TBO4W;AT180,ST184..RHD MEDIUM TURQUOISE M.,749 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT180,ST18# 2 WAY |
3 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT180,ST18# 2 WAY |
3 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT180,ST18# 2 WAY |
3 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT180,ST18# 2 WAY |
3 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ST185..TBO4W;AT180,ST182,184 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ST185..TBO4W;AT180,ST182,184 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
ST185..TBO4W;AT180,ST182,184 |
1 | ||
| 90446-07001 |
AT180,ST18# |
1 | ||
| 90099-33299 |
AT180,ST18# L=1000 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST18# *H,L=190,NO.3 & NO.4 |
2 | ||
| 90446-07001 |
AT180,ST18# NO.2 |
1 | ||
| 90099-33080 |
AT180,ST18# L=1450,NO.3,NO.4 |
2 | ||
| 90099-33299 |
AT180,ST18# L=1000,NO.1 |
1 | ||
| 90099-33080 |
AT180,ST18# L=1450,NO.3,NO.4 |
1 | ||
| 90446-07001 |
AT180,ST18# *H,L=440,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST18# *H,L=190,NO.3 & NO.4 |
2 | ||
| 90446-07001 |
AT180,ST18# NO.2 |
1 | ||
| 90099-33080 |
AT180,ST18# L=1450,NO.3,NO.4 |
2 | ||
| 90099-33299 |
AT180,ST18# L=1000,NO.1 |
1 | ||
| 90099-33080 |
AT180,ST18# L=1450,NO.3,NO.4 |
1 | ||
| 90446-07001 |
AT180,ST18# *H,L=440,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST18# *H,L=190,NO.3 & NO.4 |
2 | ||
| 90446-07001 |
AT180,ST18# NO.2 |
1 | ||
| 90099-33080 |
AT180,ST18# L=1450,NO.3,NO.4 |
2 | ||
| 90099-33299 |
AT180,ST18# L=1000,NO.1 |
1 | ||
| 90099-33080 |
AT180,ST18# L=1450,NO.3,NO.4 |
1 | ||
| 90446-07001 |
AT180,ST18# *H,L=440,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST18# *H,L=190,NO.3 & NO.4 |
2 | ||
| 90446-07001 |
AT180,ST18# NO.2 |
1 | ||
| 90099-33080 |
AT180,ST18# L=1450,NO.3,NO.4 |
2 | ||
| 90099-33299 |
AT180,ST18# L=1000,NO.1 |
1 | ||
| 90099-33080 |
AT180,ST18# L=1450,NO.3,NO.4 |
1 | ||
| 90446-07001 |
AT180,ST18# *H,L=440,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AT180,ST18# L=1450,LH,RH |
1 | ||
| 90099-33080 |
AT180,ST184,185..RHD L=1450,LH,RH |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AT180,ST18# L=1450,LH,RH |
1 | ||
| 90099-33080 |
AT180,ST184,185..RHD L=1450,LH,RH |
1 | ||
| Common parts | ||||
| 85361-20600 | ||||
| 90469-07002 | ||||

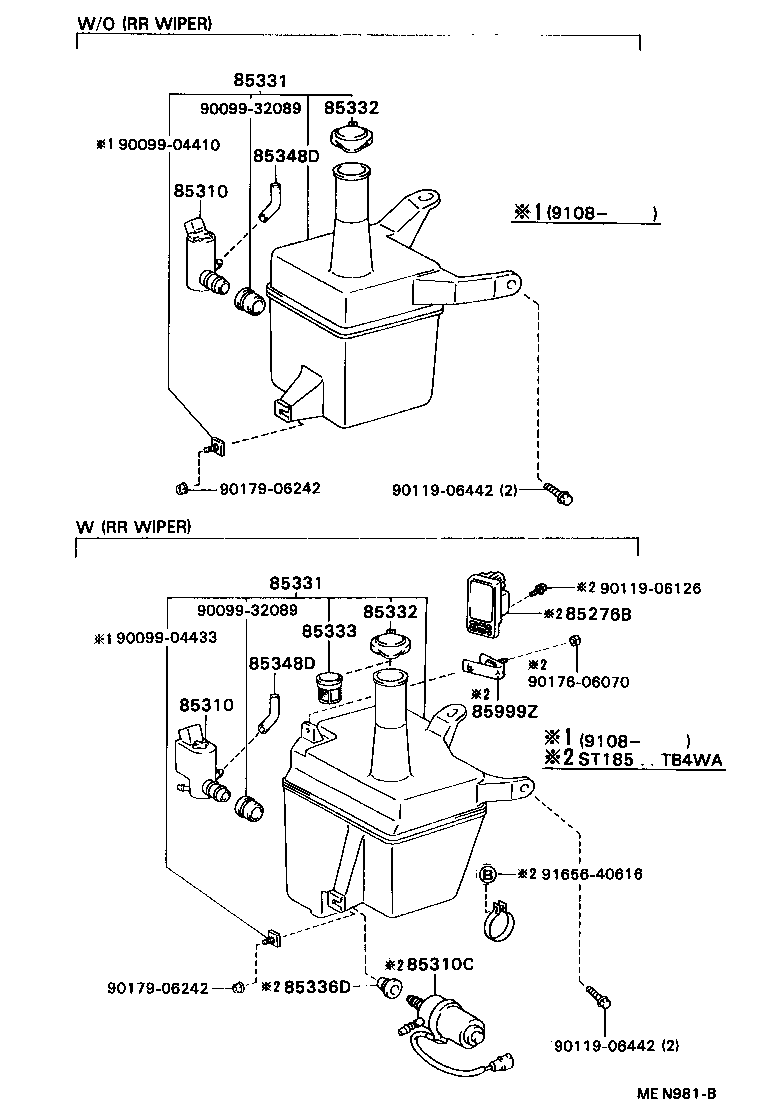

ILLUST NO. 1 OF 2(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20210 |
ST184..CP;AT180,ST182 |
1 | ||
| 85310-20210 |
AT180;ST184..CP |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20210 |
ST184..CP;AT180,ST182 |
1 | ||
| 85310-20210 |
AT180;ST184..CP |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-20750 |
ST184..CP;AT180,ST182 |
1 | ||
| 85331-20750 |
AT180;ST184..CP |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-20750 |
ST184..CP;AT180,ST182 |
1 | ||
| 85331-20750 |
AT180;ST184..CP |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-20750 |
AT180,ST18# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-20750 |
AT180,ST18# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
AT180,ST18# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 90099-04410 | ||||
| 90099-04433 | ||||
| 90099-32089 | ||||
| 90119-06126 | ||||
| 90119-06442 | ||||
| 90176-06070 | ||||
| 90179-06242 | ||||
| 91656-40616 | ||||
