ST184R-BCPSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8910-9108) ; (9108- )RHD

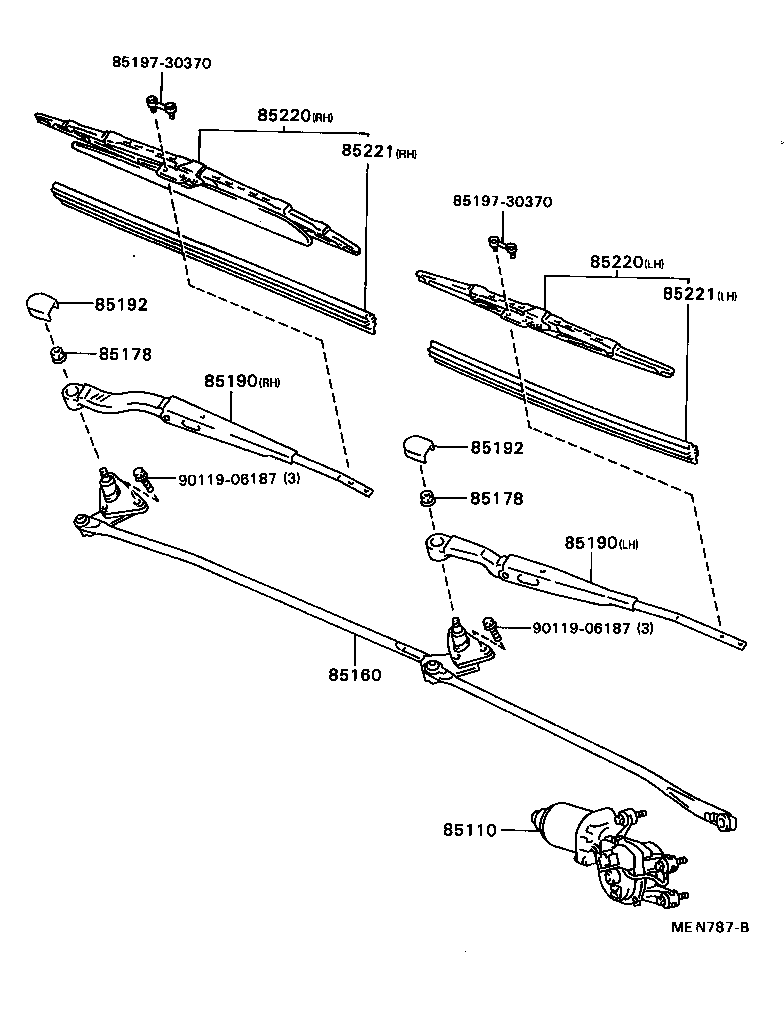

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-20620 |
ST184,185 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-20290 |
AT180,ST184,185..RHD |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
AT180,ST18# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
AT180,ST18# |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-20240 |
AT180,ST184..RHD..NOB LH |
1 | ||
| 85190-20700 |
AT180,ST184,185..RHD RH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-20240 |
AT180,ST184..RHD..NOB LH |
1 | ||
| 85190-20700 |
AT180,ST184,185..RHD RH |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
AT180,ST18# |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
AT180,ST18# |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-1A130 |
AT180,ST184..RHD..NOB LH |
1 | ||
| 85220-3A220 |
AT180,ST184,185..RHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-1A130 |
AT180,ST184..RHD..NOB LH |
1 | ||
| 85220-3A220 |
AT180,ST184,185..RHD RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85213-17040 |
AT180,ST184,185..RHD RH |
1 | ||
| 85223-22700 |
AT180,ST184..RHD..NOB LH |
1 | ||
| 85221-12240 |
AT180,ST184..RHD LH |
1 | ||
| 85221-12200 |
AT180,ST184,185..RHD RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85213-17040 |
AT180,ST184,185..RHD RH |
1 | ||
| 85223-22700 |
AT180,ST184..RHD..NOB LH |
1 | ||
| 85221-12240 |
AT180,ST184..RHD LH |
1 | ||
| 85221-12200 |
AT180,ST184,185..RHD RH |
1 | ||
| Common parts | ||||
| 85197-30370 | ||||
| 90119-06187 | ||||
