ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910-9108)NOB..ATM

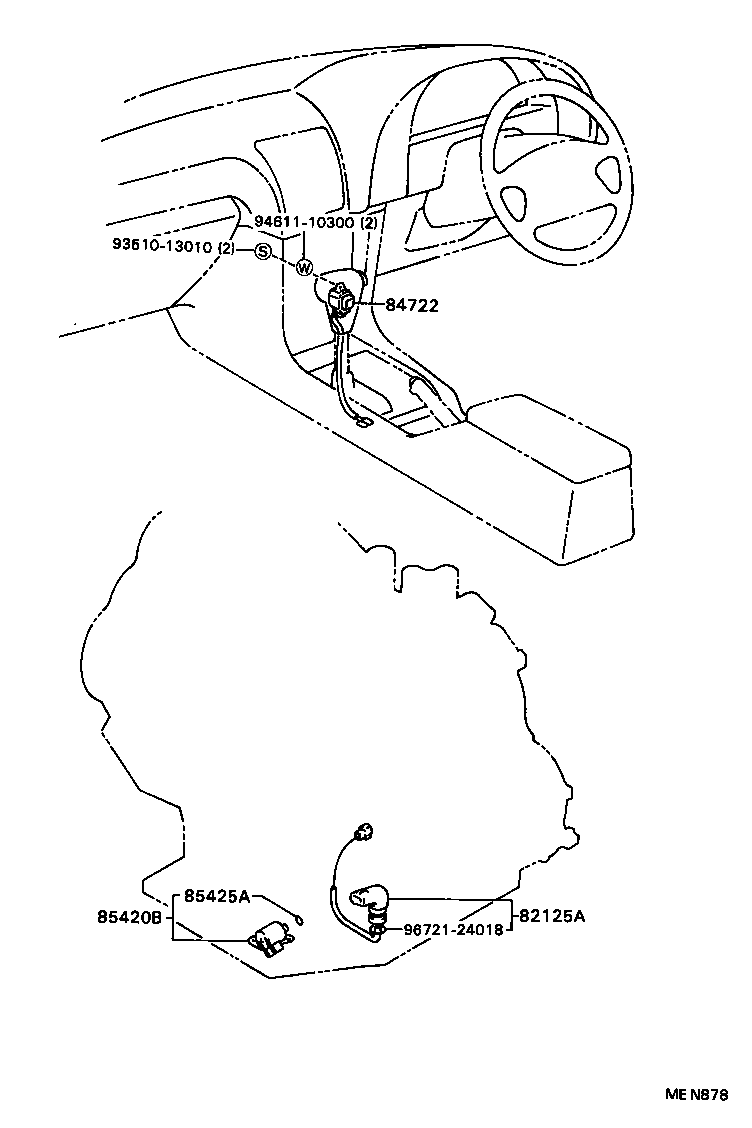

Click highlighted areas on diagram

diagram 82125A 84722 85420B 85425A 9351013010 9461110300 9672124018
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20170

ST184..NOB..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-2009003

ST184..ATM

SHADOW GRAY,TRIM1#

 1
84722-2009004

ST184..ATM

DARK BLUE,TRIM8#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-10011

ST184..NOB..ATM

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-06004

ST184..NOB..ATM

 1
Common parts
93510-13010
94611-10300
96721-24018

(9008-9108)WIB..ATM ; (9108- )ATM

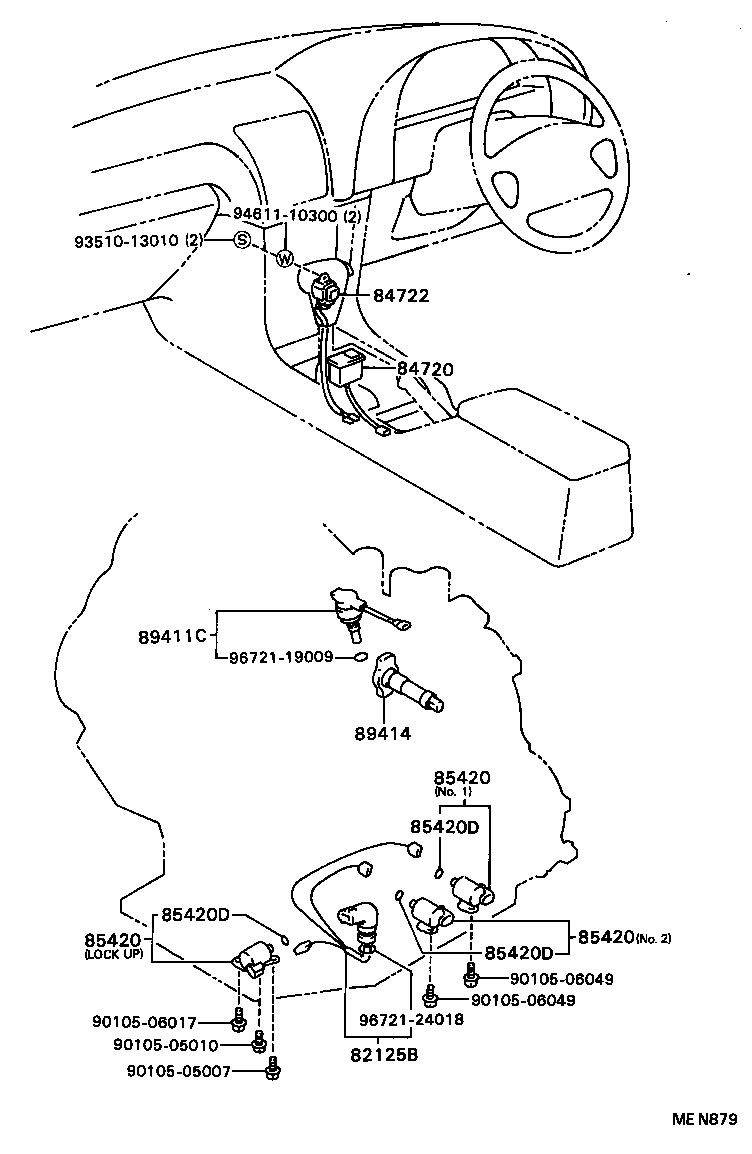

Click highlighted areas on diagram

diagram 82125B 84720 84722 85420 85420 85420 85420D 85420D 85420D 89411C 89414 9010505007 9010505010 9010506017 9010506049 9010506049 9351013010 9461110300 9672119009 9672124018
Part # Description Qty Price
82125B - WIRE, TRANSMISSION
82125-20160

ST184..ATM

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-20091

ST184..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-2009003

ST184..ATM

SHADOW GRAY,TRIM1#

 1
84722-2009004

ST184..ATM

DARK BLUE,TRIM8#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12062

ST184..ATM

LOCK UP

 1
85420-22080

ST184..ATM

NO.1 OR NO.2

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-12062

ST184..ATM

LOCK UP

 1
85420-22080

ST184..ATM

NO.1 OR NO.2

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-12062

ST184..ATM

LOCK UP

 1
85420-22080

ST184..ATM

NO.1 OR NO.2

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

ST184..ATM

 6
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

ST184..ATM

 6
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

ST184..ATM

 6
89411C - SENSOR, SPEED
89411-20050

ST184..ATM

 1
89414 - ROTOR, SENSOR
89414-12010

ST184..ATM

 1
Common parts
90105-05007
90105-05010
90105-06017
90105-06049
93510-13010
94611-10300
96721-19009
96721-24018
