ST184R-BCPSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9108- )ST184

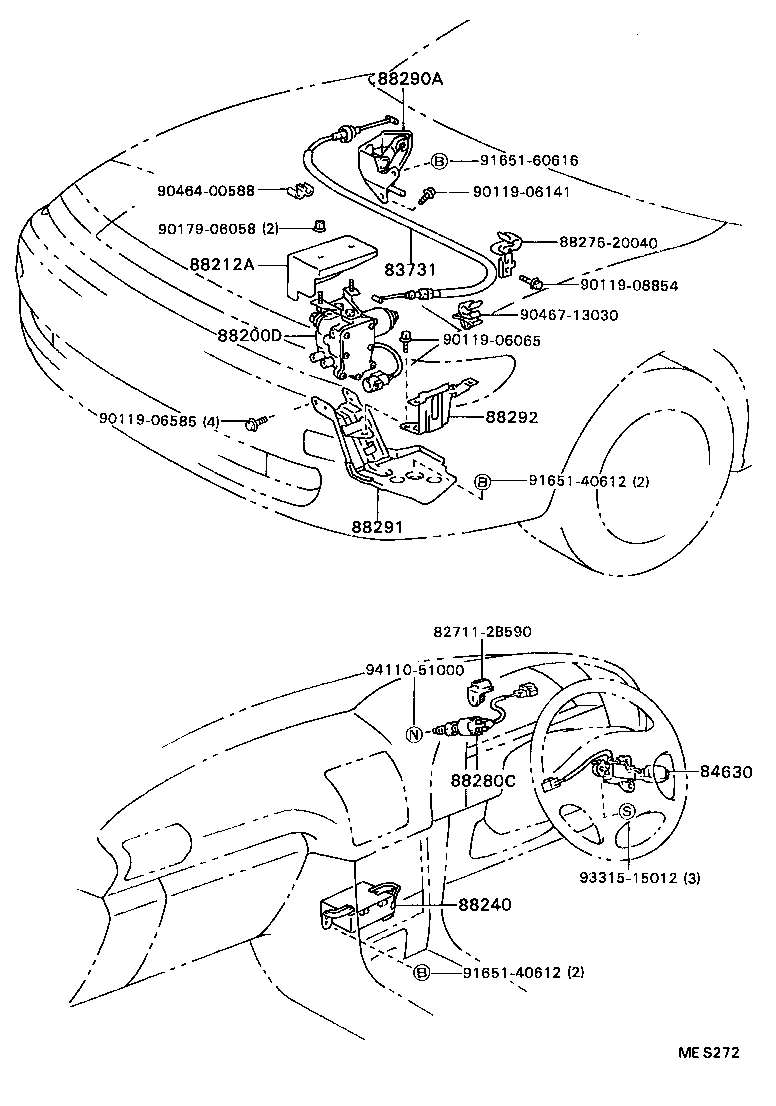

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-20110 |
ST184 |
1 | ||
| 84630 - SWITCH ASSY, CRUISE CONTROL MAIN | ||||
| 84630-20110 |
ST184;ST185..TBO4W |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-20120 |
ST184 |
1 | ||
| 88212A - COVER, CRUISE CONTROL ACTUATOR | ||||
| 88212-20040 |
ST184;ST185..TBO4W |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-20410 |
ST184 |
1 | ||
| 88290A - BELLCRANK ASSY, CRUISE CONTROL | ||||
| 88290-20030 |
ST184;ST185..TBO4W |
1 | ||
| 88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 | ||||
| 88291-20090 |
ST184 |
1 | ||
| 88292 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2 | ||||
| 88292-20040 |
ST184 |
1 | ||
| Common parts | ||||
| 82711-2B590 | ||||
| 88276-20040 | ||||
| 90119-06065 | ||||
| 90119-06141 | ||||
| 90119-06585 | ||||
| 90119-08854 | ||||
| 90179-06058 | ||||
| 90464-00588 | ||||
| 90467-13030 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 93315-15012 | ||||
| 94110-51000 | ||||
