ST184R-BCPSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )ST184

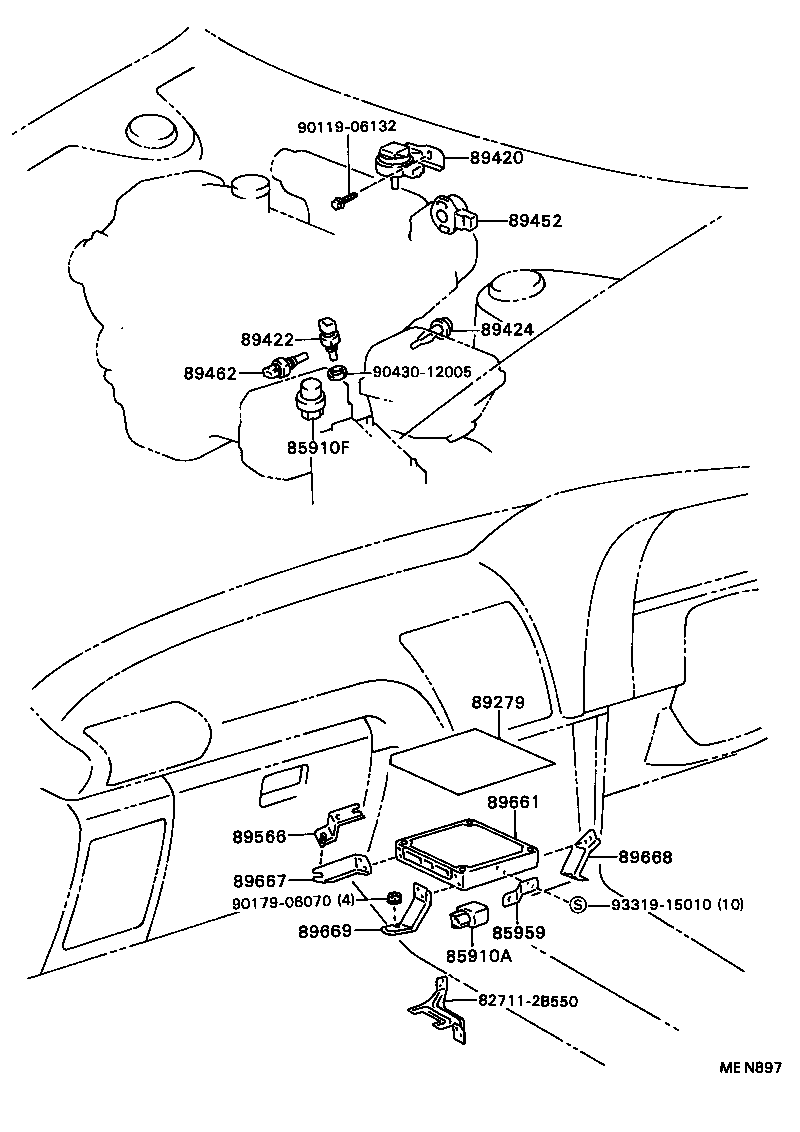

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-12010 |
AT180,ST182,184 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
AT180,ST18# |
1 | ||
| 85959 - HOLDER, RELAY | ||||
| 85959-20130 |
AT180,ST184,185..RHD |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12020 |
AT180,ST18# |
1 | ||
| 89420 - SENSOR ASSY, VACUUM | ||||
| 89420-20190 |
ST184 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-35010 |
ST184,185 |
1 | ||
| 89422-20010 |
AT180,ST18# |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
AT180,ST182,184 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-22010 |
ST184..MTM;ST184..NOB..ATM |
1 | ||
| 89452-22090 |
ST184 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-20030 |
AT180,ST184 |
1 | ||
| 89462-20020 |
ST182,184 |
1 | ||
| 89566 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89566-20010 |
AT180,ST18# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-20651 |
ST184..MTM;ST184..NOB..ATM |
1 | ||
| 89661-2B170 |
ST184..ATM |
1 | ||
| 89661-20650 |
ST184 |
1 | ||
| 89661-2B171 |
ST184..ATM |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-20190 |
ST184..NOB..ATM;AT180,ST184..RHD..MTM |
1 | ||
| 89667-20200 |
ST185;ST184..ATM |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20170 |
AT180,ST184,185..RHD |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20120 |
AT180,ST184,185..RHD |
1 | ||
| Common parts | ||||
| 82711-2B550 | ||||
| 90119-06132 | ||||
| 90179-06070 | ||||
| 90430-12005 | ||||
| 93319-15010 | ||||
