ST184R-BCPSKQ (1989)
Toyota Celica
(8910- )ST184

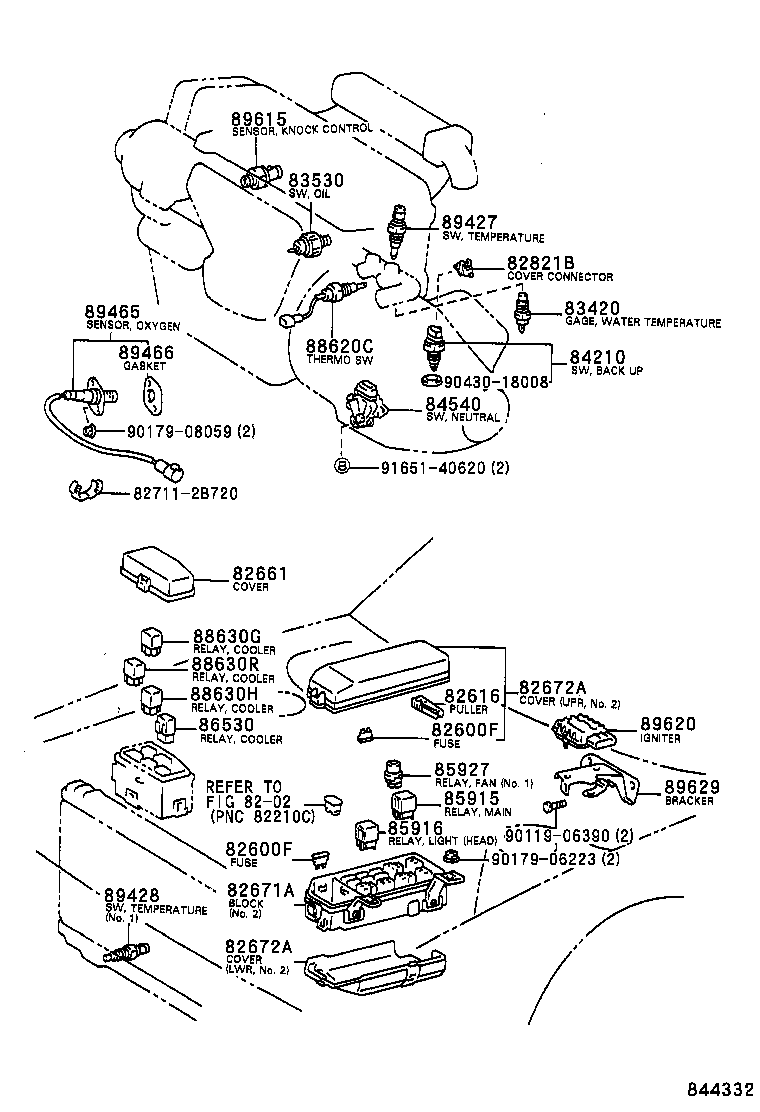

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
ST184 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
2 | ||
| 90982-07011 |
AT180,ST18# 30A,GREEN |
2 | ||
| 90982-09003 |
AT180,ST18# 15A |
5 | ||
| 90982-09003 |
AT180,ST18# 15A |
6 | ||
| 90982-09002 |
AT180,ST18# 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
1 | ||
| 90982-09005 |
AT180,ST18# 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
ST184 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
2 | ||
| 90982-07011 |
AT180,ST18# 30A,GREEN |
2 | ||
| 90982-09003 |
AT180,ST18# 15A |
5 | ||
| 90982-09003 |
AT180,ST18# 15A |
6 | ||
| 90982-09002 |
AT180,ST18# 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
1 | ||
| 90982-09005 |
AT180,ST18# 7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AT180,ST18# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20040 |
AT180,ST182,184 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20150 |
AT180,ST184,185..RHD |
1 | ||
| 82671-20210 |
AT180,ST182,184 |
1 | ||
| 82671-20150 |
AT180,ST18# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20520 |
AT180,ST182,184 UPPER,NO.2 |
1 | ||
| 82672-20490 |
AT180,ST184,185..RHD NO.1 |
1 | ||
| 82672-20610 |
AT180,ST184,185..RHD NO.3 |
1 | ||
| 82672-20590 |
ST182,184 LOWER,NO.2 |
1 | ||
| 82672-20491 |
AT180,ST184,185..RHD NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20520 |
AT180,ST182,184 UPPER,NO.2 |
1 | ||
| 82672-20490 |
AT180,ST184,185..RHD NO.1 |
1 | ||
| 82672-20610 |
AT180,ST184,185..RHD NO.3 |
1 | ||
| 82672-20590 |
ST182,184 LOWER,NO.2 |
1 | ||
| 82672-20491 |
AT180,ST184,185..RHD NO.1 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-35010 |
ST184..ATM |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AT180,ST184 |
1 | ||
| 83420-20020 |
ST18# |
1 | ||
| 83420-20030 |
ST18# YAZAKI |
1 | ||
| 83420-16040 |
ST18# NIPPONDENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
ST18# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16030 |
ST184..NOB..ATM |
1 | ||
| 84540-12170 |
ST184..ATM |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85925-17010 |
AT180,ST18# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02008 |
AT180,ST18# TAIL LAMP |
1 | ||
| 90987-02006 |
AT180,ST18# HEADLAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
ST185..TBO4W;AT180,ST182,184 NO.1 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT180,ST18# |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88625-20290 |
ST184 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-04003 |
AT180,ST18# |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02010 |
AT180,ST18# NIPPONDENSO |
1 | ||
| 90987-02009 |
ST184;ST185..TBO4W MARUKO |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-02009 |
AT180,ST18# |
1 | ||
| 90987-02009 |
ST184;ST185..TBO4W |
1 | ||
| 90987-02010 |
AT180,ST182,184 |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12070 |
ST184..NOB..ATM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15030 |
ST18# RADIATOR |
1 | ||
| 89428-33010 |
ST18# NO.1 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29535 |
ST184 |
1 | ||
| 89465-29395 |
ST184 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
ST184 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-33020 |
ST184 NIPPONDENSO |
1 | ||
| 89615-20030 |
ST184 TOYOTA |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-12010 |
ST18# |
1 | ||
| 89621-26010 |
ST184 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20120 |
ST184,185 |
1 | ||
| Common parts | ||||
| 82711-2B720 | ||||
| 90119-06390 | ||||
| 90179-06223 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(8910- )

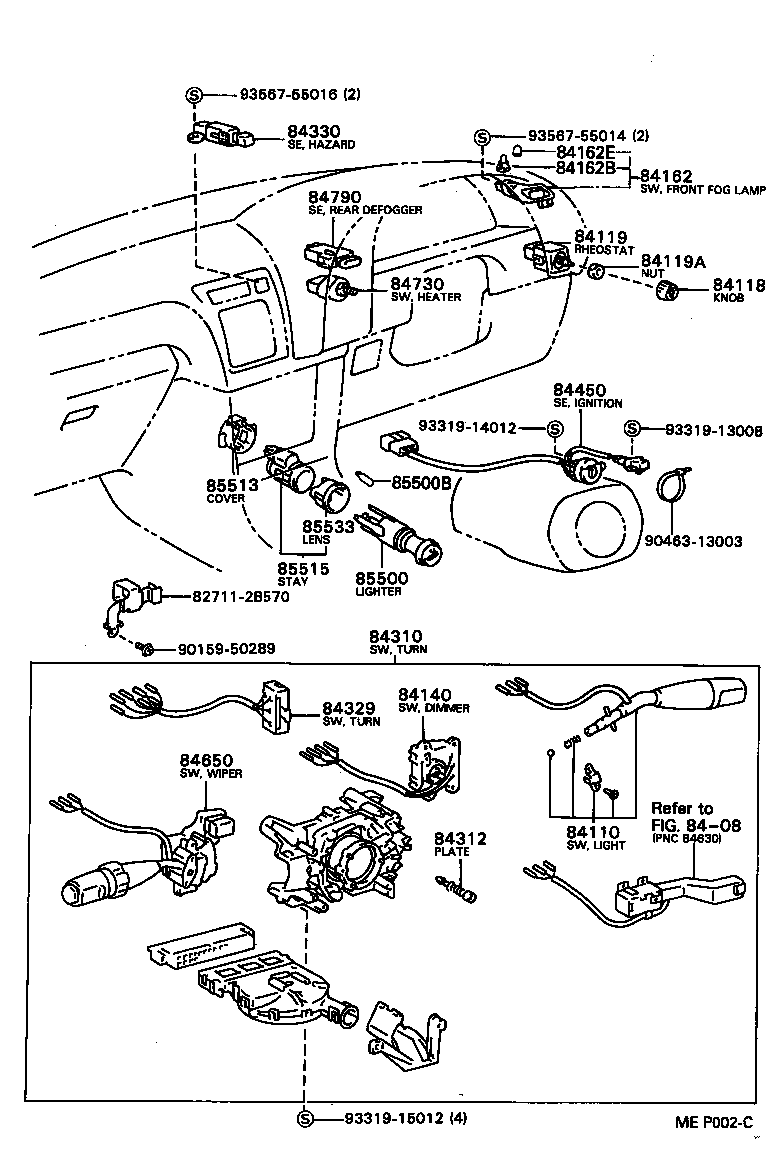

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80052 |
ST184..CP W(*CRC) |
1 | ||
| 84112-80041 |
ST184..CP |
1 | ||
| 84112-80041 |
AT180,ST184,185..RHD |
1 | ||
| 84112-80155 |
ST184,185 W(*CRC) |
1 | ||
| 84112-80052 |
ST184,185 W(*CRC) |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20030 |
AT180,ST18# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20180 |
AT180,ST18# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
AT180,ST18# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20380 |
AT180,ST184,185..RHD |
1 | ||
| 84140-20370 |
ST184;ST185..TBO4W W(*CRC) |
1 | ||
| 84140-20380 |
ST184..CP |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-20100 |
ST184;ST185..TBO4W |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
ST184;ST185..TBO4W 14V 0.84W |
1 | ||
| 84162E - CAP, FOG LAMP BULB | ||||
| 84998-10270 |
ST184;ST185..TBO4W |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2G280 |
ST184..CP;AT180..RHD |
1 | ||
| 84310-2G310 |
ST184..CP |
1 | ||
| 84310-2H240 |
ST184..CP W(*CRC) |
1 | ||
| 84310-2G310 |
ST184..CP;AT180..RHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
ST184;ST185..TBO4W W(*CRC) |
1 | ||
| 84312-12050 |
ST184..CP |
1 | ||
| 84312-12050 |
AT180,ST184,185..RHD |
1 | ||
| 84312-12050 |
AT180,ST18# |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-20090 |
ST184..CP |
1 | ||
| 84329-20090 |
AT180,ST184,185..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20240 |
AT180,ST18# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20200 |
AT180,ST182,184 |
1 | ||
| 84450-20210 |
ST182,184 W(POWER WINDOW) |
1 | ||
| 84450-20210 |
ST182,184 W(MEMORY & AUTOMATIC TILT STEERING) OR W(POWER WINDOW) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2D230 |
ST184..CP;AT180..RHD |
1 | ||
| 84652-2D170 |
ST184..CP W(*CRC) |
1 | ||
| 84652-2D270 |
ST184..CP;AT180..RHD |
1 | ||
| 84652-2D270 |
ST184..CP |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20300 |
AT180,ST184,185..RHD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20290 |
ST184,185 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30410 |
AT180,ST18# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
AT180,ST18# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AT180,ST18# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-20040 |
AT180,ST18# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30020 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 82711-2B570 | ||||
| 90159-50289 | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8408 | ||||
(8910- )

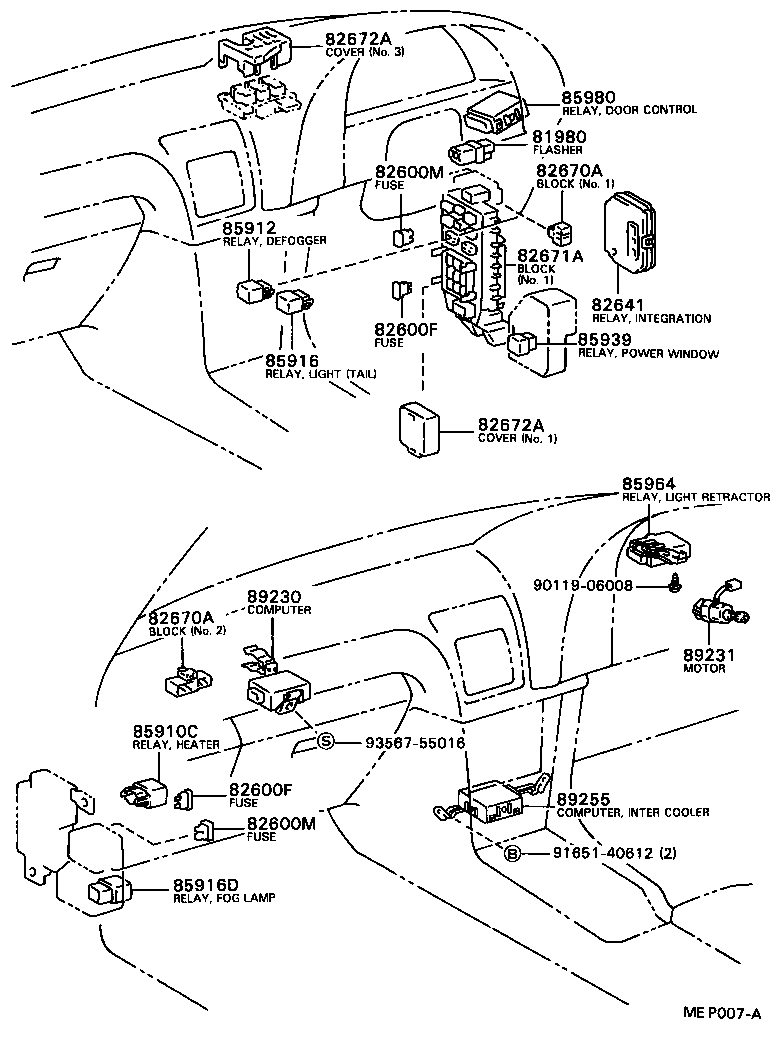

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT180,ST18# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
ST184 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
2 | ||
| 90982-07011 |
AT180,ST18# 30A,GREEN |
2 | ||
| 90982-09003 |
AT180,ST18# 15A |
5 | ||
| 90982-09003 |
AT180,ST18# 15A |
6 | ||
| 90982-09002 |
AT180,ST18# 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
1 | ||
| 90982-09005 |
AT180,ST18# 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
ST184 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
2 | ||
| 90982-07011 |
AT180,ST18# 30A,GREEN |
2 | ||
| 90982-09003 |
AT180,ST18# 15A |
5 | ||
| 90982-09003 |
AT180,ST18# 15A |
6 | ||
| 90982-09002 |
AT180,ST18# 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
1 | ||
| 90982-09005 |
AT180,ST18# 7.5A |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AT180,ST18# 30A,PINK,30A |
1 | ||
| 90982-10002 |
AT180,ST18# 40A,GREEN,40A |
1 | ||
| 90982-10001 |
AT180,ST18# 30A,PINK |
1 | ||
| 90982-10002 |
AT180,ST18# 40A,GREEN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AT180,ST18# 30A,PINK,30A |
1 | ||
| 90982-10002 |
AT180,ST18# 40A,GREEN,40A |
1 | ||
| 90982-10001 |
AT180,ST18# 30A,PINK |
1 | ||
| 90982-10002 |
AT180,ST18# 40A,GREEN |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20110 |
ST184,185 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20480 |
AT180,ST18# NO.1 |
1 | ||
| 82670-20580 |
AT180,ST18# NO.2 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20480 |
AT180,ST18# NO.1 |
1 | ||
| 82670-20580 |
AT180,ST18# NO.2 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20150 |
AT180,ST184,185..RHD |
1 | ||
| 82671-20210 |
AT180,ST182,184 |
1 | ||
| 82671-20150 |
AT180,ST18# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20520 |
AT180,ST182,184 UPPER,NO.2 |
1 | ||
| 82672-20490 |
AT180,ST184,185..RHD NO.1 |
1 | ||
| 82672-20610 |
AT180,ST184,185..RHD NO.3 |
1 | ||
| 82672-20590 |
ST182,184 LOWER,NO.2 |
1 | ||
| 82672-20491 |
AT180,ST184,185..RHD NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20520 |
AT180,ST182,184 UPPER,NO.2 |
1 | ||
| 82672-20490 |
AT180,ST184,185..RHD NO.1 |
1 | ||
| 82672-20610 |
AT180,ST184,185..RHD NO.3 |
1 | ||
| 82672-20590 |
ST182,184 LOWER,NO.2 |
1 | ||
| 82672-20491 |
AT180,ST184,185..RHD NO.1 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT180,ST18# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02008 |
AT180,ST18# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02008 |
AT180,ST18# TAIL LAMP |
1 | ||
| 90987-02006 |
AT180,ST18# HEADLAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
ST184;AT180..LHD;ST185..TBO4W |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02010 |
AT180,ST18# NIPPONDENSO |
1 | ||
| 90987-02009 |
AT180,ST18# |
1 | ||
| 90987-02009 |
AT180,ST18# MARUKO |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85906-20010 |
AT180,ST184,185..RHD |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20290 |
AT180,ST18# |
1 | ||
| 85980-20190 |
AT180,ST18# |
1 | ||
| 89230 - COMPUTER ASSY, TILT STEERING | ||||
| 89230-20011 |
ST184,185 |
1 | ||
| 89230-20010 |
ST184,185 |
1 | ||
| 89231 - MOTOR, POWER TILT | ||||
| 89231-20020 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06008 | ||||
| 91651-40612 | ||||
| 93567-55016 | ||||
(8910- )

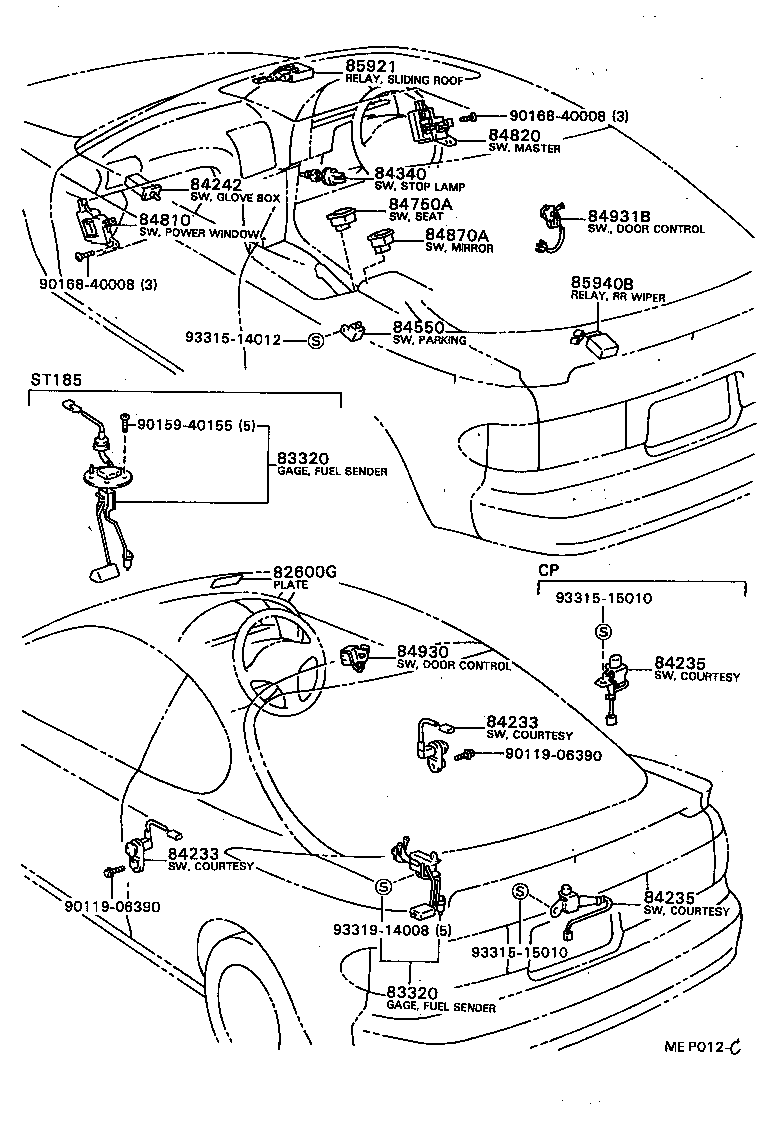

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-20070 |
AT180,ST18# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80139 |
ST184 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80139 |
ST184 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20210 |
AT180,ST18# |
2 | ||
| 84231-32050 |
AT180,ST18# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20210 |
AT180,ST18# |
2 | ||
| 84231-32050 |
AT180,ST18# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20180 |
AT180,ST184..CP |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20180 |
AT180,ST184..CP |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT180,ST18# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
AT180,ST18# |
1 | ||
| 84340-32110 |
ST184;ST185..TBO4W W(*CRC) |
1 | ||
| 84340-32030 |
AT180,ST18# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AT180,ST18# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20150 |
AT180,ST184,185..RHD |
1 | ||
| 84810-20150 |
ST184 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20330 |
ST184 |
1 | ||
| 84820-20330 |
AT180,ST184,185..RHD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
AT180,ST18# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-20070 |
AT180,ST184,185..RHD |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20180 |
AT180,ST18# LH |
1 | ||
| 84931-20130 |
AT180,ST18# RH |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20060 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90168-40008 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93319-14008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
