ST184R-BCPSKQ (1989)
Toyota Celica

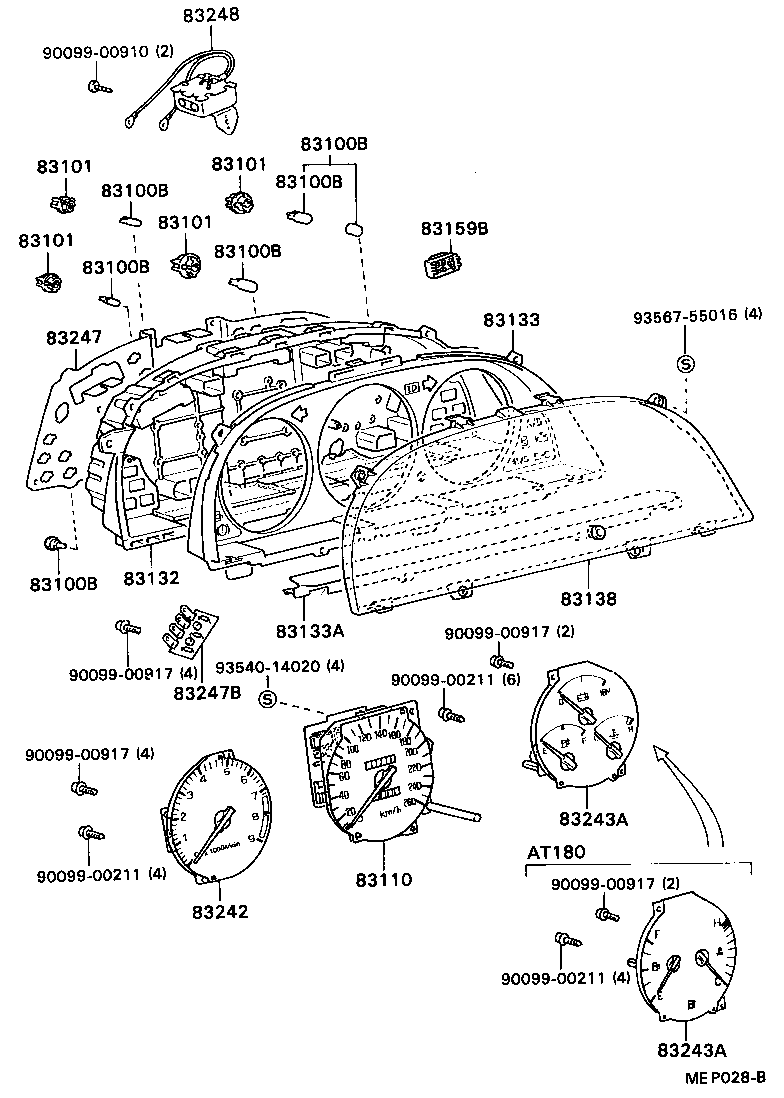

ILLUST NO. 1 OF 3(8910- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST184,185..MTM;ST184..NOB..ATM 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
10 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,SOCKET:83101-14030 |
17 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 83101-20080 |
ST184,185;AT180,ST182..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),SOCKET:83101-14030 |
4 | ||
| 83101-20080 |
AT180,ST18# 12V 1.4W,W(SOCKET),SOCKET:83101-14030 |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),12V 3.4W,GREEN CAP,SOCKET:83101-14030 |
4 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 90981-11018 |
ST184..ATM 12V 1.2W W/O SOCKET,12V 1.2W,SOCKET:83101-14040 |
13 | ||
| 83119-32010 |
AT180,ST184,185..RHD 14V 3.0W,14V 3.0W,SOCKET:83101-14030 |
1 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,12V 3.4W SOCKET:83101-14040 |
16 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST184,185..MTM;ST184..NOB..ATM 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
10 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,SOCKET:83101-14030 |
17 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 83101-20080 |
ST184,185;AT180,ST182..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),SOCKET:83101-14030 |
4 | ||
| 83101-20080 |
AT180,ST18# 12V 1.4W,W(SOCKET),SOCKET:83101-14030 |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),12V 3.4W,GREEN CAP,SOCKET:83101-14030 |
4 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 90981-11018 |
ST184..ATM 12V 1.2W W/O SOCKET,12V 1.2W,SOCKET:83101-14040 |
13 | ||
| 83119-32010 |
AT180,ST184,185..RHD 14V 3.0W,14V 3.0W,SOCKET:83101-14030 |
1 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,12V 3.4W SOCKET:83101-14040 |
16 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST184,185..MTM;ST184..NOB..ATM 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
10 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,SOCKET:83101-14030 |
17 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 83101-20080 |
ST184,185;AT180,ST182..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),SOCKET:83101-14030 |
4 | ||
| 83101-20080 |
AT180,ST18# 12V 1.4W,W(SOCKET),SOCKET:83101-14030 |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),12V 3.4W,GREEN CAP,SOCKET:83101-14030 |
4 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 90981-11018 |
ST184..ATM 12V 1.2W W/O SOCKET,12V 1.2W,SOCKET:83101-14040 |
13 | ||
| 83119-32010 |
AT180,ST184,185..RHD 14V 3.0W,14V 3.0W,SOCKET:83101-14030 |
1 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,12V 3.4W SOCKET:83101-14040 |
16 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST184,185..MTM;ST184..NOB..ATM 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
10 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,SOCKET:83101-14030 |
17 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 83101-20080 |
ST184,185;AT180,ST182..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),SOCKET:83101-14030 |
4 | ||
| 83101-20080 |
AT180,ST18# 12V 1.4W,W(SOCKET),SOCKET:83101-14030 |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),12V 3.4W,GREEN CAP,SOCKET:83101-14030 |
4 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 90981-11018 |
ST184..ATM 12V 1.2W W/O SOCKET,12V 1.2W,SOCKET:83101-14040 |
13 | ||
| 83119-32010 |
AT180,ST184,185..RHD 14V 3.0W,14V 3.0W,SOCKET:83101-14030 |
1 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,12V 3.4W SOCKET:83101-14040 |
16 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST184,185..MTM;ST184..NOB..ATM 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
10 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,SOCKET:83101-14030 |
17 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 83101-20080 |
ST184,185;AT180,ST182..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),SOCKET:83101-14030 |
4 | ||
| 83101-20080 |
AT180,ST18# 12V 1.4W,W(SOCKET),SOCKET:83101-14030 |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),12V 3.4W,GREEN CAP,SOCKET:83101-14030 |
4 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 90981-11018 |
ST184..ATM 12V 1.2W W/O SOCKET,12V 1.2W,SOCKET:83101-14040 |
13 | ||
| 83119-32010 |
AT180,ST184,185..RHD 14V 3.0W,14V 3.0W,SOCKET:83101-14030 |
1 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,12V 3.4W SOCKET:83101-14040 |
16 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST184,185..MTM;ST184..NOB..ATM 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
10 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,SOCKET:83101-14030 |
17 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 83101-20080 |
ST184,185;AT180,ST182..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),SOCKET:83101-14030 |
4 | ||
| 83101-20080 |
AT180,ST18# 12V 1.4W,W(SOCKET),SOCKET:83101-14030 |
1 | ||
| 83109-24020 |
AT180,ST184,185..RHD 12V3.4W W(GREEN CAP),12V 3.4W,GREEN CAP,SOCKET:83101-14030 |
4 | ||
| 83109-24010 |
AT180,ST184,185..RHD 12V 1.4W,GREEN CAP,SOCKET:83101-14030 |
2 | ||
| 90981-11018 |
ST184..ATM 12V 1.2W W/O SOCKET,12V 1.2W,SOCKET:83101-14040 |
13 | ||
| 83119-32010 |
AT180,ST184,185..RHD 14V 3.0W,14V 3.0W,SOCKET:83101-14030 |
1 | ||
| 99132-12034 |
AT180,ST184,185..RHD 12V 3.4W,12V 3.4W SOCKET:83101-14040 |
16 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST184,185..MTM;ST184..NOB..ATM BULB:1.2W OR 1.4W |
12 | ||
| 83101-14040 |
ST184..ATM BULB:1.2W OR 1.4W |
15 | ||
| 83101-32020 |
AT180,ST184,185..RHD BULB:1.4W |
1 | ||
| 83101-14030 |
AT180,ST18# BULB:3.0W OR 3.4W |
5 | ||
| 83101-14030 |
AT180,ST184,185..RHD BULB:3.0W OR 3.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST184,185..MTM;ST184..NOB..ATM BULB:1.2W OR 1.4W |
12 | ||
| 83101-14040 |
ST184..ATM BULB:1.2W OR 1.4W |
15 | ||
| 83101-32020 |
AT180,ST184,185..RHD BULB:1.4W |
1 | ||
| 83101-14030 |
AT180,ST18# BULB:3.0W OR 3.4W |
5 | ||
| 83101-14030 |
AT180,ST184,185..RHD BULB:3.0W OR 3.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST184,185..MTM;ST184..NOB..ATM BULB:1.2W OR 1.4W |
12 | ||
| 83101-14040 |
ST184..ATM BULB:1.2W OR 1.4W |
15 | ||
| 83101-32020 |
AT180,ST184,185..RHD BULB:1.4W |
1 | ||
| 83101-14030 |
AT180,ST18# BULB:3.0W OR 3.4W |
5 | ||
| 83101-14030 |
AT180,ST184,185..RHD BULB:3.0W OR 3.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST184,185..MTM;ST184..NOB..ATM BULB:1.2W OR 1.4W |
12 | ||
| 83101-14040 |
ST184..ATM BULB:1.2W OR 1.4W |
15 | ||
| 83101-32020 |
AT180,ST184,185..RHD BULB:1.4W |
1 | ||
| 83101-14030 |
AT180,ST18# BULB:3.0W OR 3.4W |
5 | ||
| 83101-14030 |
AT180,ST184,185..RHD BULB:3.0W OR 3.4W |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D031 |
ST184 |
1 | ||
| 83110-2D030 |
ST184 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1B420 |
ST184 |
1 | ||
| 83132-1J160 |
ST184..ATM |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1D010 |
AT180,ST18# |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-1D030 |
AT180,ST18# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1B250 |
AT180,ST18# |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
ST184,185 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-15770 |
ST184..NOB..ATM;AT180,ST184..RHD..MTM |
1 | ||
| 83242-1J670 |
ST184..ATM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1B370 |
ST184 |
1 | ||
| 83243-1B330 |
ST184..MTM;ST184..NOB..ATM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1B370 |
ST184 |
1 | ||
| 83243-1B330 |
ST184..MTM;ST184..NOB..ATM |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-15590 |
ST184 |
1 | ||
| 83247-1B580 |
ST184 |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

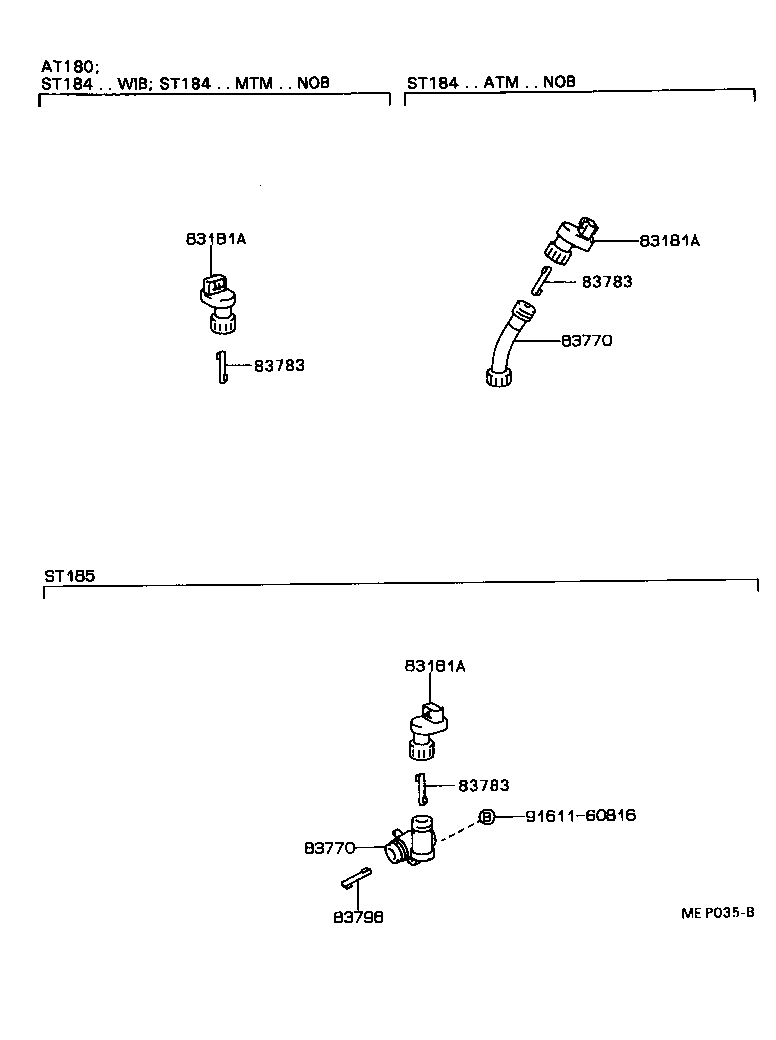

ILLUST NO. 2 OF 3(8910- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
AT180,ST184,185..RHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
AT180,ST184,185..RHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
AT180,ST184,185..RHD |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-32010 |
ST184..NOB..ATM |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-32010 |
ST184..NOB..ATM |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||

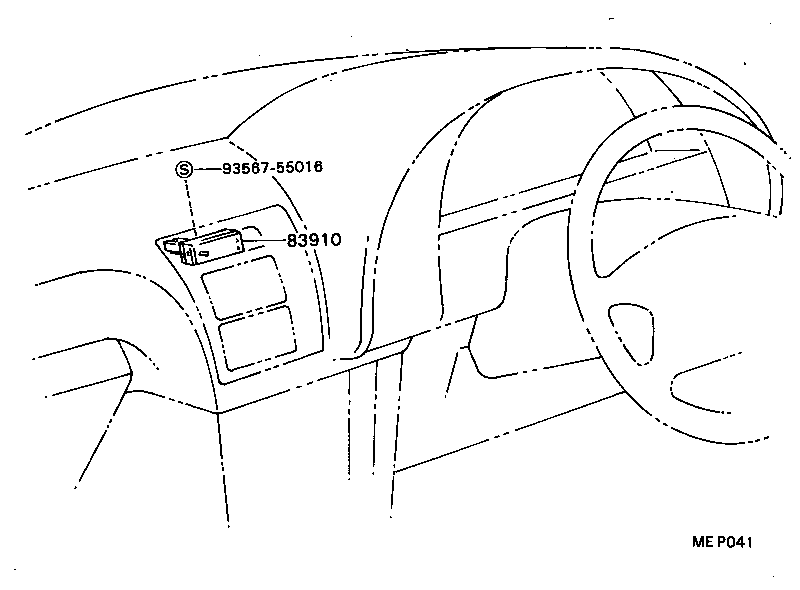

ILLUST NO. 3 OF 3(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20610 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
